How to factory reset (including password) your Swann Security recorder using the reset button (pinhole)?
DVR4-4480RN, DVR4-4580RN, DVR4-4680RN, DVR4-4685RN, DVR4-5580RN, DVR4-5680RN, DVR8-4480RN, DVR8-4580RN, DVR8-4680RN, DVR8-4685RN, DVR8-4880RN, DVR8-5580RN, DVR8-5680RN, DVR16-4580RN, DVR16-4680RN, NVR8-8580RN, NVR8-8780RN, NVR16-8580RN, NVR16-8780RN, NVW-650, NVW-800, NVW-MR4K
This article is for DVR and NVR with the suffix "RN" on the model number, NVW Wireless recorders (NVW-650 and NVW-800), and MaxRanger4K™ recorder (NVW-MR4K).
You will learn how to use the reset button (pinhole) to reset your Swann Security recorder to factory settings, thereby resetting the password.
WARNING: For security and privacy reasons to stop malicious access, restoring your DVR, NVR, or NVW will reset all saved changes to the settings available, and the storage device (HDD or SD card) will also be formatted, removing any recordings.
For NVW recorders (including MaxRanger4K™), this will also unpair all the NVW cameras. You will need to re-pair the cameras with your recorder after the reset process is complete.
For alternative methods of resetting the password on your recorder, visit this article instead: How to Reset the Password or Get the Recovery Code of Your Recorder
How to factory reset using the pinhole
NOTE: Prior to performing the steps below, ensure that an external display and mouse are connected to your recorder.

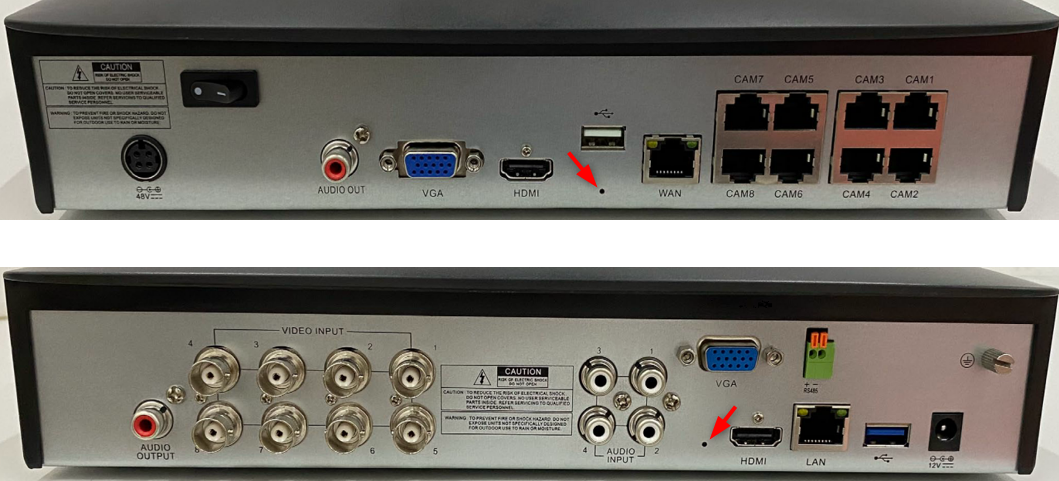

- Using a paper clip or pin, carefully insert it into the reset button (pinhole) located at the back of the recorder. Press and hold until you hear four beeps, then release.
- The recorder will display a Notice screen, and the factory reset will commence in a few seconds.
- After the reboot, the recorder will display the startup Wizard screen. Setup your recorder as if it were a new device.
