Why Does My Recorder or Stand-alone Camera Stops Recording After A Minute
Recorders are set to record PIR/motion by default. Stand-alone cameras can only record by PIR/motion. Where the camera is mounted can have an impact on how effective movement is picked up and recorded.
Mounting any camera with thermal and motion sensors in the wrong location and angle can prevent recordings of certain movement. For example:

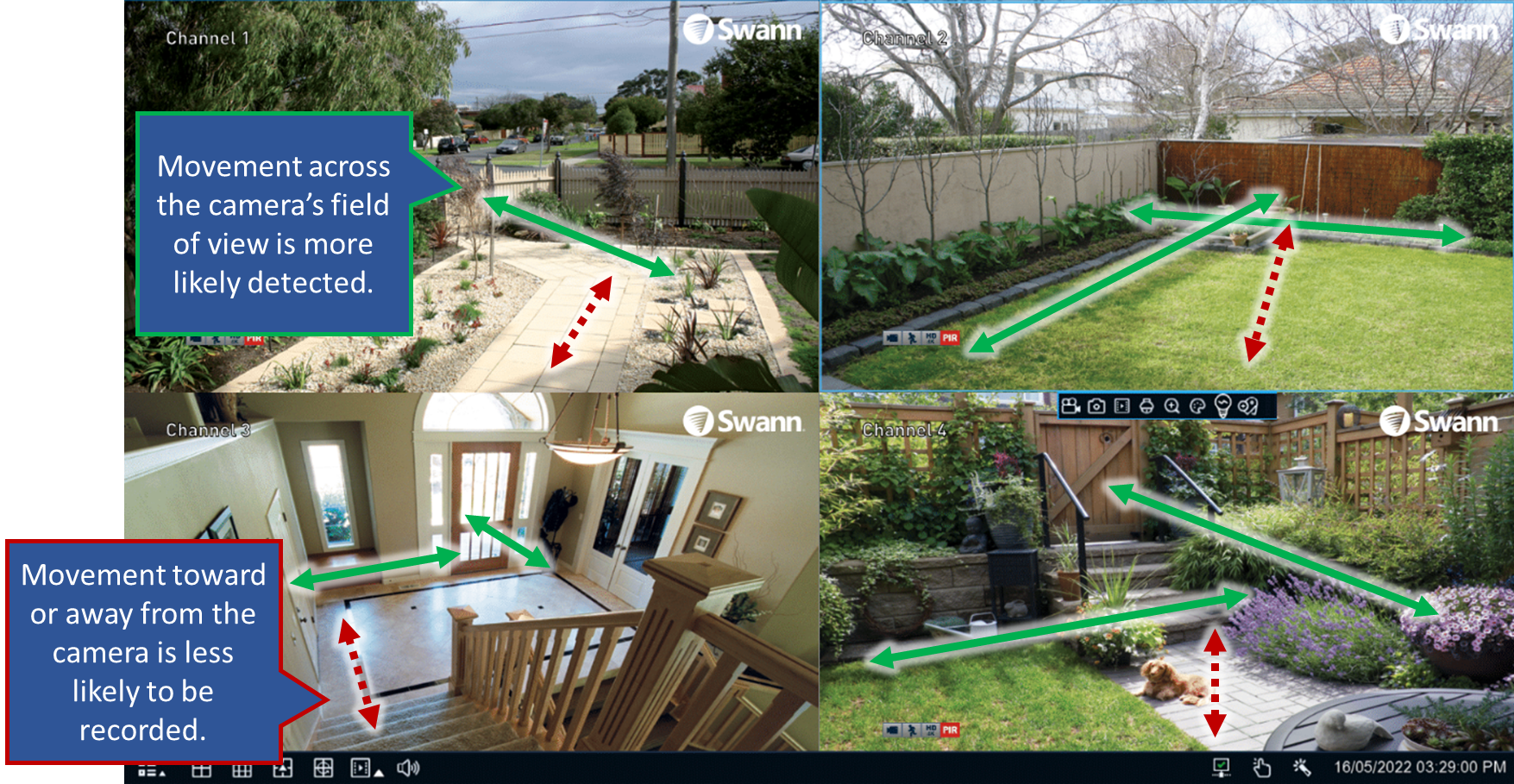

- Movement in the directions indicated by green arrows are more likely to be detected.
- If the movement is toward and away from the camera at a short distance, the camera sensors may not be able to identify the changes between frames because the differences are subtle.

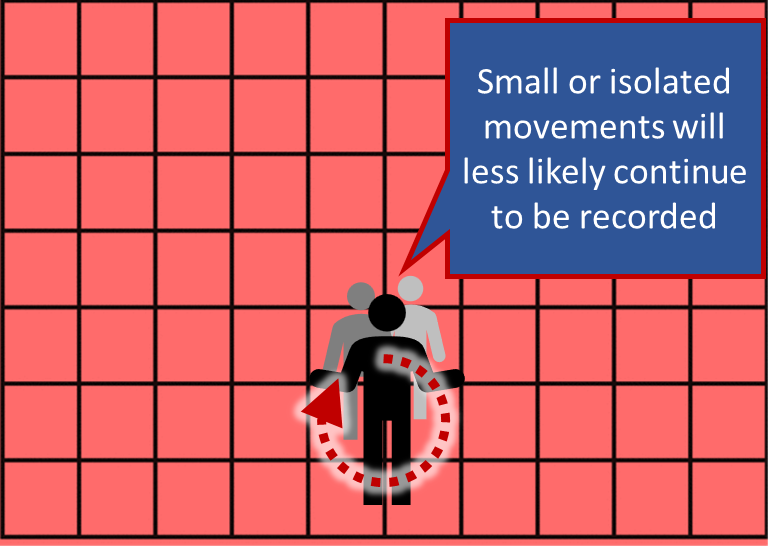

- If the movement stops, the DVR / NVR will stop recording. This means an intruder could still be standing on the same spot with subtle movements long enough to thwart the PIR/motion sensors.
Please see the fixes specific to your model for working around PIR/motion:
Fix for DVR: Set the already-mounted camera to record continuously
This setting is ideal if you mounted your camera above your front door, and you expect the camera to record regardless of motion.
See How to Set Up 24-hour Continuous Recording for a Camera
Fix for NVR: Set up Analytics for your NVR camera.
Perimeter Intrusion Detection (PID) with PIR can be configured for one NVR camera. Check this article if your camera supports this: FAQ: Security Cameras (NHD) Technical Specification Matrix
A perimeter intrusion region can be used to define specific areas that you want to monitor for motion. For example, a rule can be defined so that your NVR will alert you if one or more objects have entered the boxed region from a particular direction and stayed within the intrusion region for a particular time.
Please see the User Manual for your NVR on how to set up PID.
Fix for any camera, especially wireless cameras: Reposition them or add another camera for a different angle of view.
The ideal position of the camera is 7-8 feet high, pointing downwards at an angle to cover the area where people will be walking across the camera’s path
