Camera Location Tips: Where Should I Mount My Security Camera
Last updated:
The location and angle of your security camera can affect what it sees, how well it detects movement, and the quality of your night vision. Choose a mounting location that gives the camera a clear view of the area you want to monitor while keeping people and vehicles visible enough for your camera's motion detection technology to work effectively.
Things to Know Before Mounting Your Camera
- What you want to monitor: entrances, driveways, yards, hallways, garages, or other areas.
- How people will move through the area: across the camera's view, toward the camera, or away from it.
- Your camera's detection technology: PIR, video-based motion detection, or AI/analytics.
- The camera's viewing angle: make sure the important area is within the camera's field of view.
- Lighting conditions: check both daytime and nighttime views.
- Possible obstructions: walls, trees, fences, roof edges, vehicles, and other objects can block the view.
- Distance from the area you want to monitor: subjects that are very far away may appear too small for useful identification, even when they are visible.
- Power and connectivity: make sure the camera can be powered and maintain a reliable connection where you plan to install it.

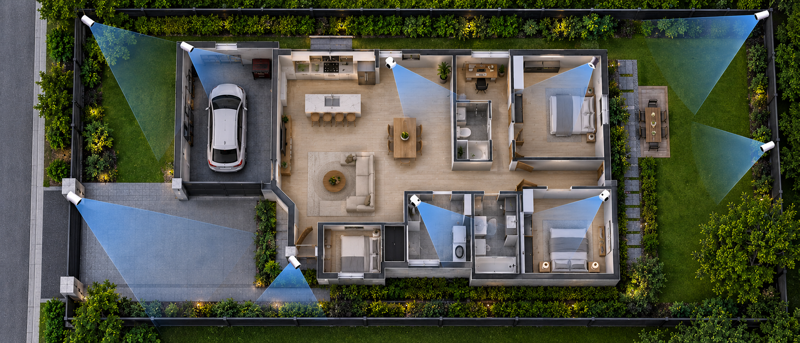

Where Should I Mount My Security Camera?
The best location depends on what you want the camera to monitor. Use the options below to choose a suitable starting point for your installation.

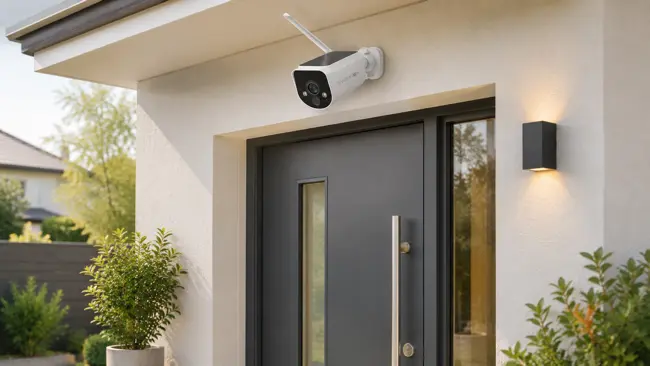

Above a Front Door or Entrance
Mount the camera above or near the entrance, aimed toward the area where people approach the door. This is useful for monitoring visitors, deliveries, and activity around an entry point.
If possible, avoid pointing the camera directly toward a bright outdoor light or large area of sky. Aim it slightly downward so the entrance and approaching area take up most of the image.
Best for: Front doors, back doors, side entrances, and other access points.
Keep in mind: If your camera uses PIR, check that people approaching the entrance will enter the PIR sensor's detection range.

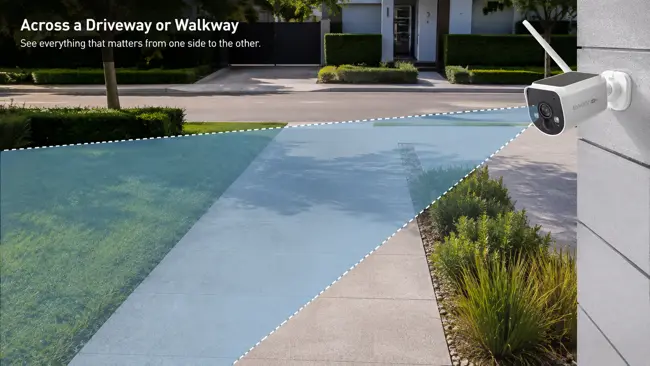

Across a Driveway or Walkway
Mount the camera to the side of the driveway or walkway and aim it across the path of movement. This can provide a better opportunity for motion detection because people and vehicles move across the camera's view.
For PIR cameras, movement across the sensor is generally more suitable than movement directly toward or away from it.
Best for: Driveways, pathways, gates, and side access areas.
Keep in mind: Avoid pointing the camera directly at a busy road if you do not want passing vehicles to trigger motion events.

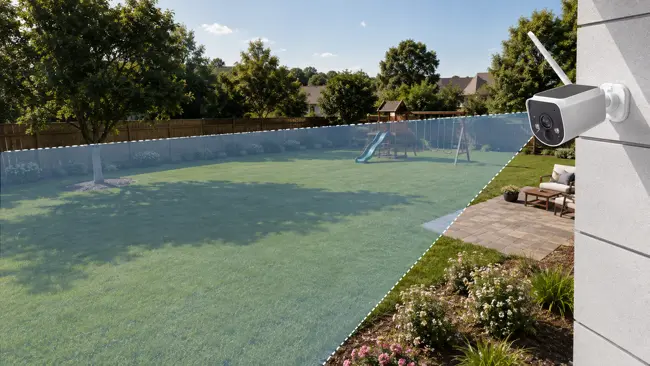

Overlooking a Backyard or Open Area
Mount the camera at an elevated position with a clear view of the area, then angle it slightly downward. Try to position the camera so the area you want to monitor fills most of the image.
Avoid having too much sky in the camera's view. This can make the foreground appear darker during the day and leave less useful image area for detecting people or vehicles.
Best for: Backyards, gardens, patios, and open outdoor areas.
Keep in mind: Trees, plants, flags, and other objects that move in the wind can create unwanted motion events.

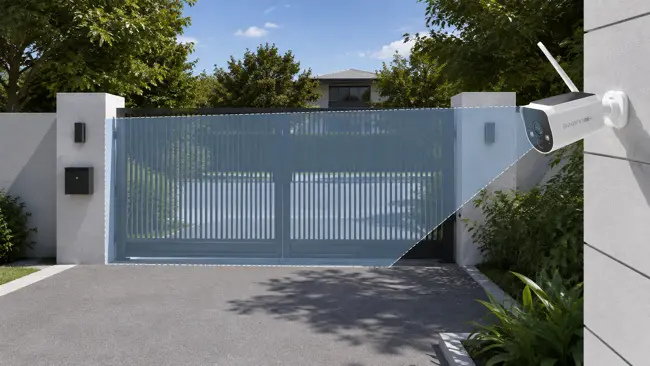

Covering a Gate or Fence Entrance
Mount the camera to view the gate or entrance from an angle rather than pointing straight along the path. This allows people entering the area to move across the camera's field of view.
Best for: Side gates, driveway gates, pedestrian gates, and property entrances.
Keep in mind: Make sure the gate, surrounding area, and approaching path are visible without the fence blocking the lower part of the image.

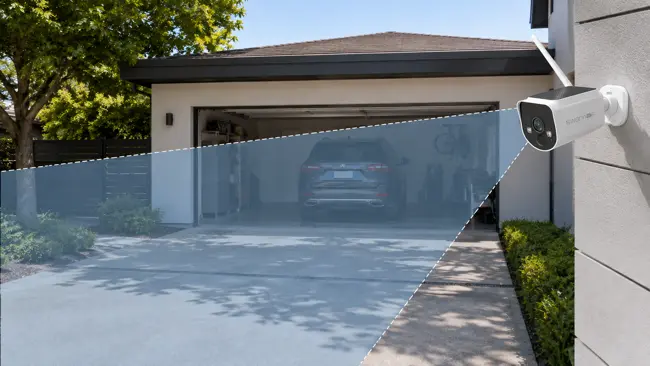

Monitoring a Garage or Carport
Mount the camera where it can see both the garage entrance and the surrounding approach area. Aim the camera so vehicles and people remain visible as they enter or leave.
Avoid positioning the camera where a vehicle's headlights will shine directly into the lens at night.
Best for: Garages, carports, parking areas, and vehicle access points.
Keep in mind: Reflective surfaces and headlights can affect nighttime image quality and may contribute to unwanted motion events.

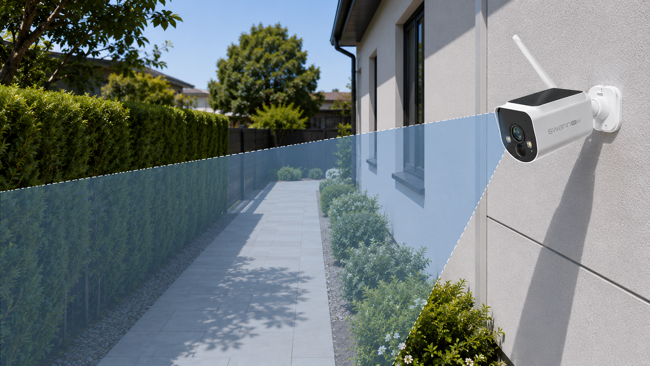

Along a Side of the House
Mount the camera high on the side of the property and point it along the area you want to protect. This can provide coverage of side paths, windows, gates, and other less visible areas.
If possible, position the camera so people walking along the side of the house move across the camera's view.
Best for: Side yards, narrow paths, windows, and secondary entrances.
Keep in mind: Walls or roof edges can block part of the camera's field of view if the camera is mounted too close to them.

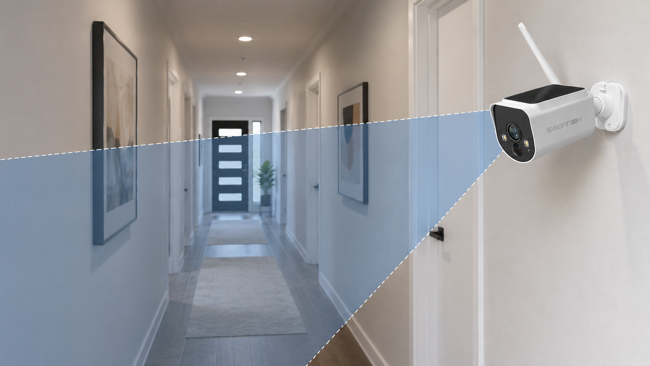

Indoor Hallway or Room
Mount the camera where it can see the main area of activity without being blocked by furniture or other objects. For hallways, position the camera to cover the area where people are most likely to walk.
Best for: Hallways, living areas, entryways, garages, and home offices.
Keep in mind: Avoid placing the camera directly behind glass or where reflective surfaces can interfere with the image or night vision.
How Should I Position My Security Camera?
Position your camera so the area you want to monitor is clearly visible, important activity is within the camera's detection capabilities, and the view is not affected by excessive light or reflections. Use the tips below based on your camera and installation area.
| What you want to achieve | Where and how to position the camera |
|---|---|
| Detect people with a PIR sensor | Keep people within the PIR range, which varies by model from 16 ft / 5 m to 32 ft / 10 m. Where possible, position the camera so people move across its view rather than directly toward or away from it. Learn more how True Detect™ works here |
| Detect movement without PIR | Give the camera a clear view of the area. These cameras detect movement by analyzing changes between video frames, so there is no fixed PIR-style detection range. |
| Identify people or vehicles with AI | Position the camera where people and vehicles are clearly visible and large enough in the image for the camera's analytics to identify them. |
| Monitor an entrance or walkway | Aim the camera toward the approach area and, where possible, capture people moving across the camera's view. |
| Monitor a driveway or road | Position the camera to cover the area you need without unnecessarily pointing toward busy roads or passing traffic. |
| Cover a backyard or open area | Mount the camera higher and angle it slightly downward. Keep trees, plants, and other moving objects from dominating the view. |
| Improve night vision | Avoid direct lights, headlights, reflective surfaces, and objects close to the lens. Check the camera's view at night before finalizing the position. |
What Should I Avoid?
- Mounting a PIR camera where activity occurs beyond its PIR detection range.
- Pointing the camera directly at bright lights or large reflective surfaces.
- Leaving too much sky in an outdoor camera's view.
- Mounting where trees, plants, or other moving objects dominate the image.
- Positioning the camera so people or vehicles appear too small to identify.
- Mounting behind glass or where nearby objects can reflect the camera's infrared light.
Tip: Before drilling, use the camera's live view to check the area from the proposed mounting location. If possible, check both daytime and nighttime views.
Why It Matters
A camera can only provide useful security coverage when it has a suitable view of the area you want to protect. The best mounting location balances viewing angle, distance, movement patterns, lighting, night vision, and the camera's motion detection technology.
Understanding these factors can help reduce missed events, unwanted alerts, and poor-quality nighttime footage.
Related Questions
How far can a PIR security camera detect movement?
Swann PIR detection ranges vary by model, from approximately 16 ft / 5 m to 32 ft / 10 m.
Do cameras without PIR have a motion detection range?
They do not have a fixed PIR-style range. They detect movement based on changes visible to the camera sensor.
How do AI security cameras detect people and vehicles?
AI and analytics analyze the camera's video to identify subjects such as people and vehicles.
Why does my camera detect trees or plants as movement?
Moving branches, leaves, and other objects can create changes in the camera's view and may trigger motion detection.
Why can I see a person but my camera does not detect them?
The person may be outside the PIR range, too small or obscured in the image, poorly lit, or not producing enough detectable change.
Why is my night vision too bright or blurry?
Nearby reflective surfaces, bright lights, or objects close to the camera can reflect infrared light back into the lens.
Why are passing cars triggering my camera?
Vehicles moving through the camera's field of view can trigger motion detection. Repositioning the camera or adjusting supported motion detection settings can help.
How can I reduce false motion alerts?
Start by improving the camera's position and removing unnecessary moving objects from its field of view. You can also adjust supported motion detection or analytics settings.
Summary and Next Steps
For the best security camera placement, choose a location that clearly shows the area you want to monitor, keeps important activity within the appropriate detection range, and provides a clear view at night. If your camera uses PIR, consider its specific sensor range. If it uses video-based detection or AI, focus on giving the camera a clear, detailed view of the area and subjects.
You may also check these articles relevant to poor night vision, false detection, and missed triggers:
