How to Change the Camera Layout on Your Recorder's Live View
Calculating...
Last updated:
DVR4-4480G, DVR4-4480RN, DVR4-4480V, DVR4-4580G, DVR4-4580RN, DVR4-4580V, DVR4-4680, DVR4-4680RN, DVR4-4685, DVR4-4685RN, DVR4-4780V, DVR4-4980V, DVR4-5580, DVR4-5580G, DVR4-5580RN, DVR4-5680, DVR4-5680RN, DVR8-4480G, DVR8-4480RN, DVR8-4480V, DVR8-4580G, DVR8-4580RN, DVR8-4580V, DVR8-4680, DVR8-4680A, DVR8-4680RN, DVR8-4685, DVR8-4685RN, DVR8-4780V, DVR8-4880RN, DVR8-4980, DVR8-5580, DVR8-5580A, DVR8-5580G, DVR8-5580RN, DVR8-5580RU, DVR8-5680, DVR8-5680A, DVR8-5680RN, DVR8-5680RU, DVR8-5880RU, DVR16-4580G, DVR16-4580RN, DVR16-4580V, DVR16-4680, DVR16-4680A, DVR16-4680RN, DVR16-4680RU, DVR16-4880RU, DVR16-4980, DVR16-5580, DVR16-5580G, DVR16-5580G2, DVR16-5580RU, NVR8-8580, NVR8-8580RN, NVR8-8600RU, NVR8-8780, NVR8-8780RN, NVR16-8580, NVR16-8580RN, NVR16-8600RU, NVR16-8780, NVR16-8780RN, NVW-650, NVW-800, NVW-MR4K, DVR4-4680XN, DVR4-4680XU, DVR4-4685XU, DVR4-5680XN, DVR8-4680X, DVR8-4680XN, DVR8-4680XU, DVR8-4685XU, DVR8-5680X, DVR8-5680XU, NVR8-ADVANX, NVR16-ADVANX
Tags: camera layout live view, change camera order, adjust live view settings, customize camera display, dvr live view configuration, nvr live view configuration, drag and drop cameras, multi-screen view setup, camera channel arrangement, swann dvr display settings, swann nvr display settings, reposition cameras on screen, change number of cameras displayed, manage live view layout, live view cycling, live view customization, dvr camera settings, nvr camera settings, change default live view, adjust channel display
This guide is to show you how to do the following for the models above:
- Change number of cameras
- Change the layout
NOTE: The layout and arrangement will revert to a default state upon reboot; modified layout will last until the unit is turned on.
If you want a fixed order of channels (e.g., Front door on ch1, Backyard on ch2, and so on), you need to change the input port or in the settings.
- For DVRs - Using the example above, connect the Front Door camera to camera input 1 at the back of your recorder; and the Backyard camera to camera input 2.
- For NVR - Go to Menu > Display > IP Channel and edit the cameras to choose which channel you want them to appear.
- For NVW - Either move the camera itself to a different location or re-pair the camera to the channel that you like.
Change the number of cameras showing in Live View

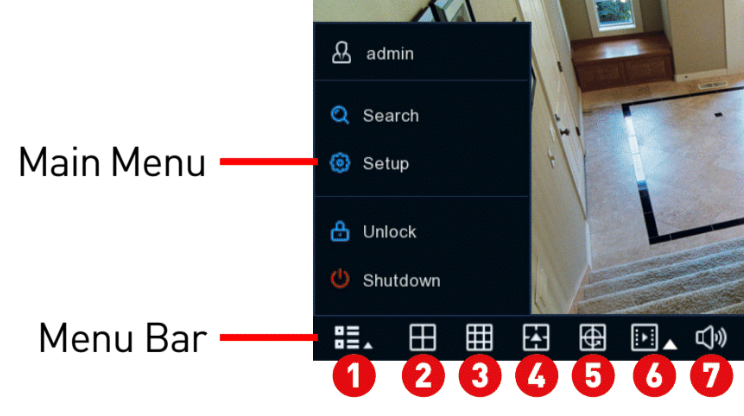

- Right-click or move the mouse cursor to the bottom of the screen to see the Menu Bar.
- Choose from one of the following for your preferred view:
| Icon | Description |
| If you have 2 to 4 cameras, choose to display as 4-camera view. | |
| If you have 7 to 8 cameras, choose to display as 8-camera view. The 9th box will display the Swann logo only. This box cannot be customized nor disabled. | |
|
Click this to select from one of the multi-screen viewing modes available. For an 8-channel recorder, it will show 6-camera view and 8-camera view. |
|
| Click this to repeatedly cycle through each video channel full-screen. Each video channel will be displayed for five seconds. |
Change the layout of the cameras in Live View
- Left-click a camera (e.g. Channel 1) & drag it to reposition it.
- Drop (release the left-click button after holding) over a different area or the desired box.
- Repeat for other cameras.
For example in the image below, Channel 1 was moved to 2nd position while Channel 2 was moved to 1st position.
