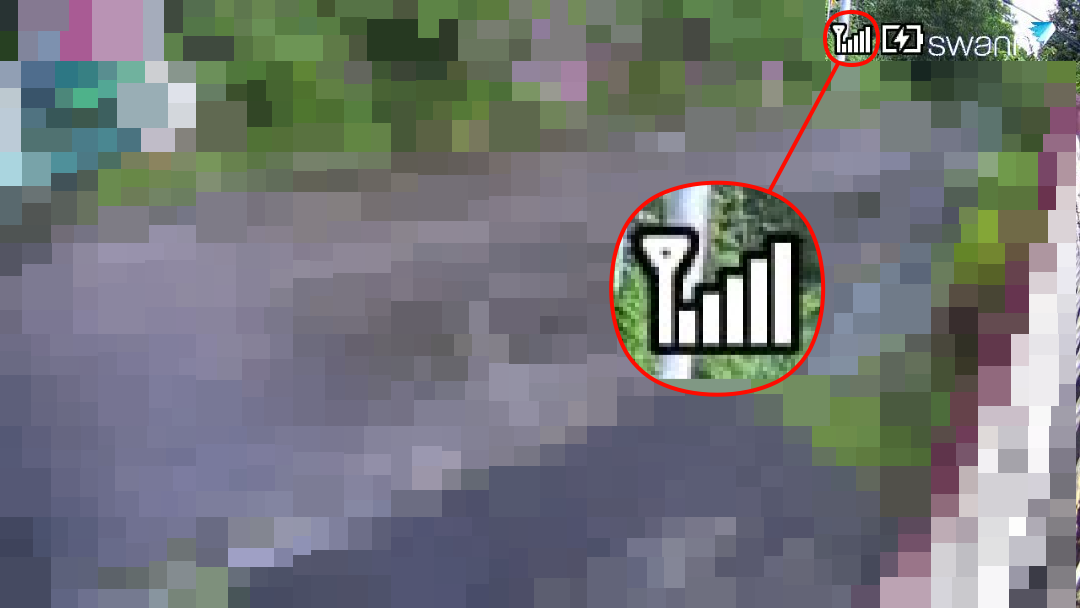

How to Fix a Weak Wireless Signal on Your MaxRanger4K™ Camera
A weak wireless signal can cause your MaxRanger4K™ camera to show poor video quality, delayed live view, frequent disconnections, or go offline. Although MaxRanger4K™ uses long-range Wi-Fi HaLow technology, walls, metal objects, and wireless interference can still reduce signal strength.
Things to Know
Before troubleshooting, keep these points in mind:
- Your camera and recorder are powered on.
- MaxRanger4K™ cameras communicate with the recorder using Wi-Fi HaLow, not traditional 2.4 GHz Wi-Fi.
- There is no setting that increases wireless signal strength. Improving the connection requires repositioning the camera or recorder and reducing interference.
- If your camera or recorder has detachable antennas, make sure they are installed correctly.
- For the rest of the article, MaxRanger4K™ Power Hub and Base Station will be referred as "recorder"
Common Causes
A weak wireless signal is commonly caused by:
- Too many walls or large objects between the camera and recorder
- Camera installed too far from the recorder
- Loose or incorrectly positioned antennas
- Wireless interference from other nearby sub-1 GHz or Wi-Fi HaLow devices
- Temporary communication issue between the camera and recorder
- Outdated firmware
- A pairing issue between the camera and recorder
Step-by-Step Fixes
Restart the Camera and Recorder
Restarting refreshes the wireless connection and clears temporary communication issues.
- Turn off the camera.
- Turn off the recorder.
- Wait about 30 seconds.
- Turn the recorder back on first.
- Once it has fully started, power on the camera.
- Check whether the wireless signal has improved.
Expected result: The camera reconnects and the wireless signal becomes more stable.
See also:

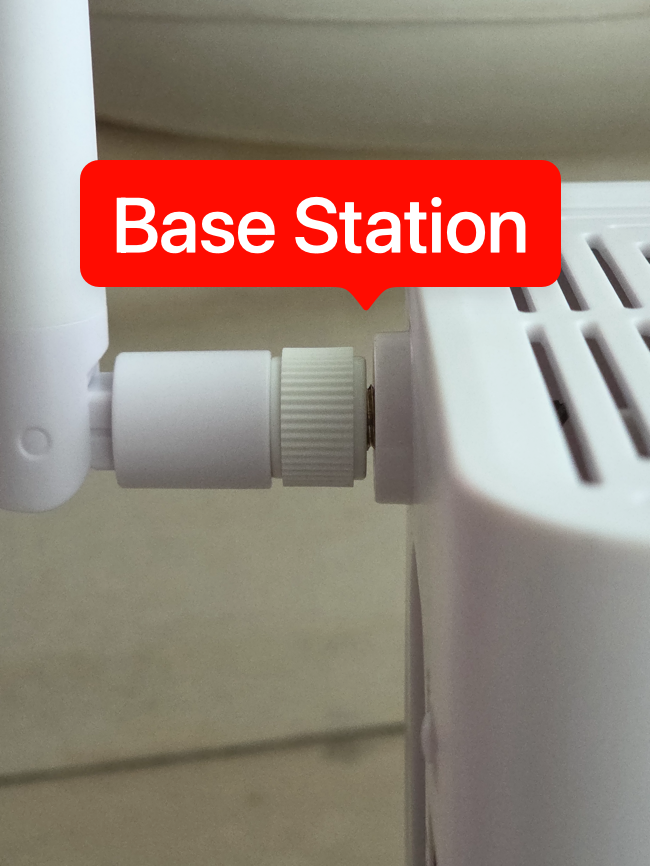

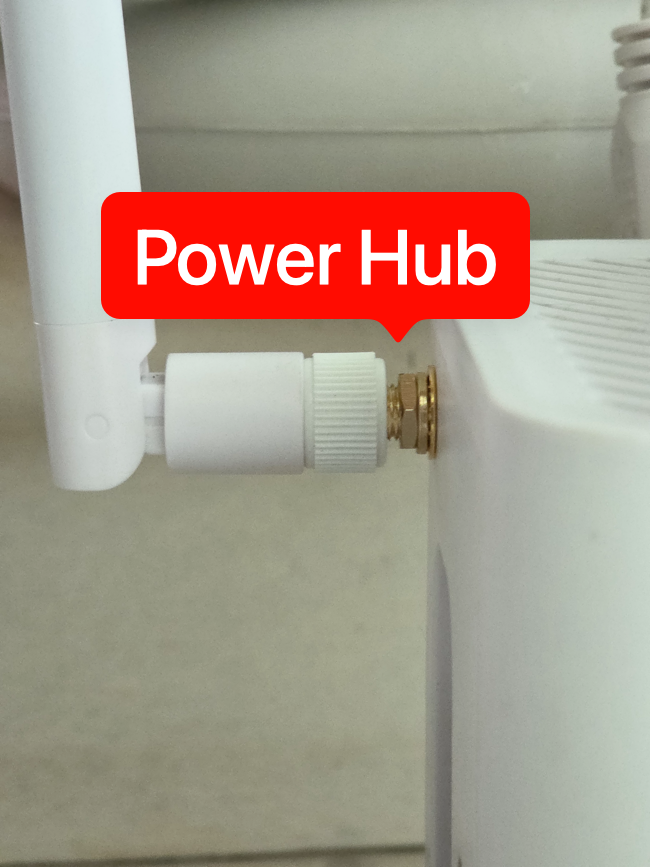

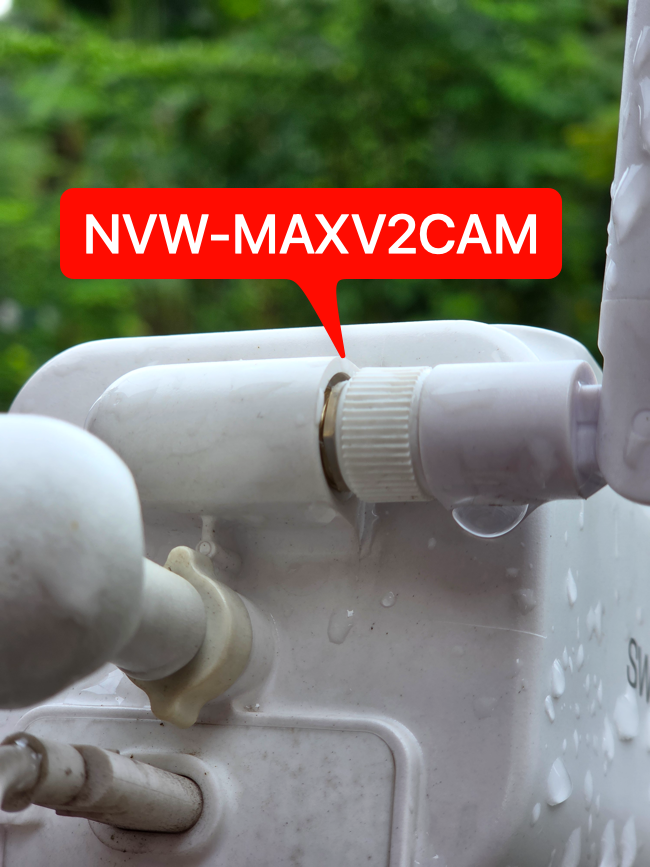

Check the Antennas
Loose or poorly positioned antennas can reduce wireless performance.
- Inspect the antennas on both the camera and recorder (if detachable).
- Tighten each antenna until it is snug using only your fingers.
- Do not over-tighten the antennas.

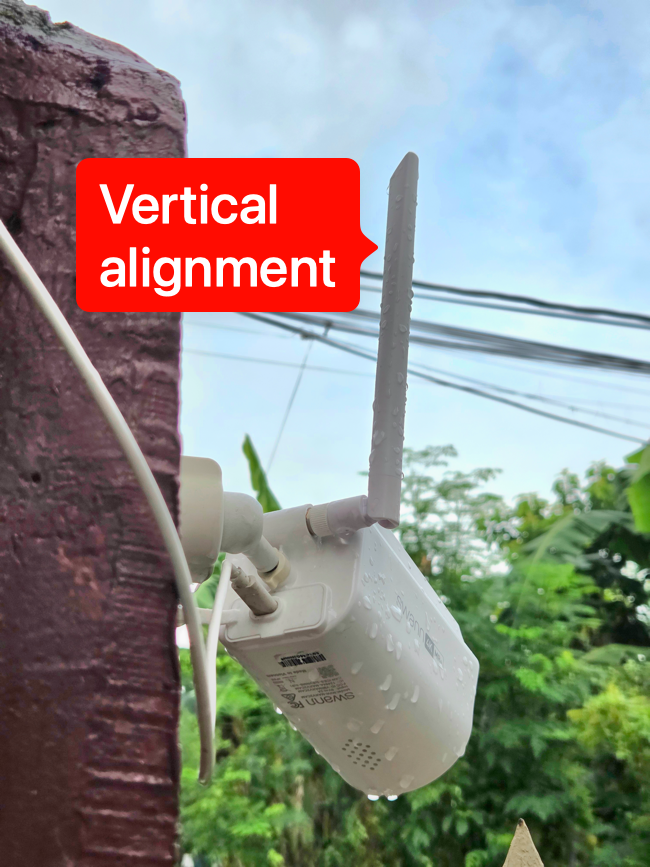

- Position the antennas as close to vertical as possible.
- Check whether the wireless signal has improved.
Common mistake: Using tools to tighten the antenna may damage the connector.

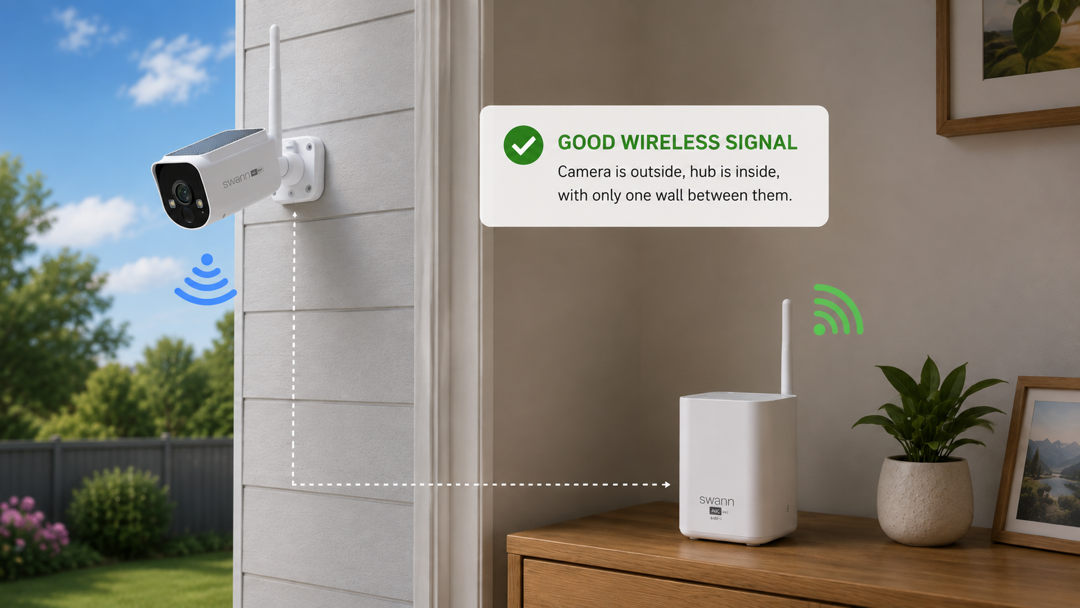

Move the Camera or Recorder
Reducing distance and obstacles often provides the biggest improvement.
- Move the camera closer to the recorder, if possible.
- Reduce the number of walls, floors, or large metal objects between them.
- Avoid installing the camera behind metal doors, electrical cabinets, mirrors, or thick concrete walls.
- Test the signal before permanently mounting the camera.
TIP: Wi-Fi HaLow provides much longer range than traditional Wi-Fi, but physical obstructions can still weaken the signal.
Reduce Wireless Interference
Nearby wireless devices operating on similar frequencies may affect communication.
- Turn off nearby sub-1 GHz or Wi-Fi HaLow devices that are not currently in use.
- Check whether the camera signal improves.
- If it does, relocate the interfering device or increase the distance between the devices.
Update the Camera and Recorder Firmware
Firmware updates can improve wireless performance, stability, and compatibility.
- Open the Swann Security app.
- Check for available firmware updates for both the recorder and the affected camera.
- Install any available updates.
- Wait for the updates to complete before testing the camera again.
See also:

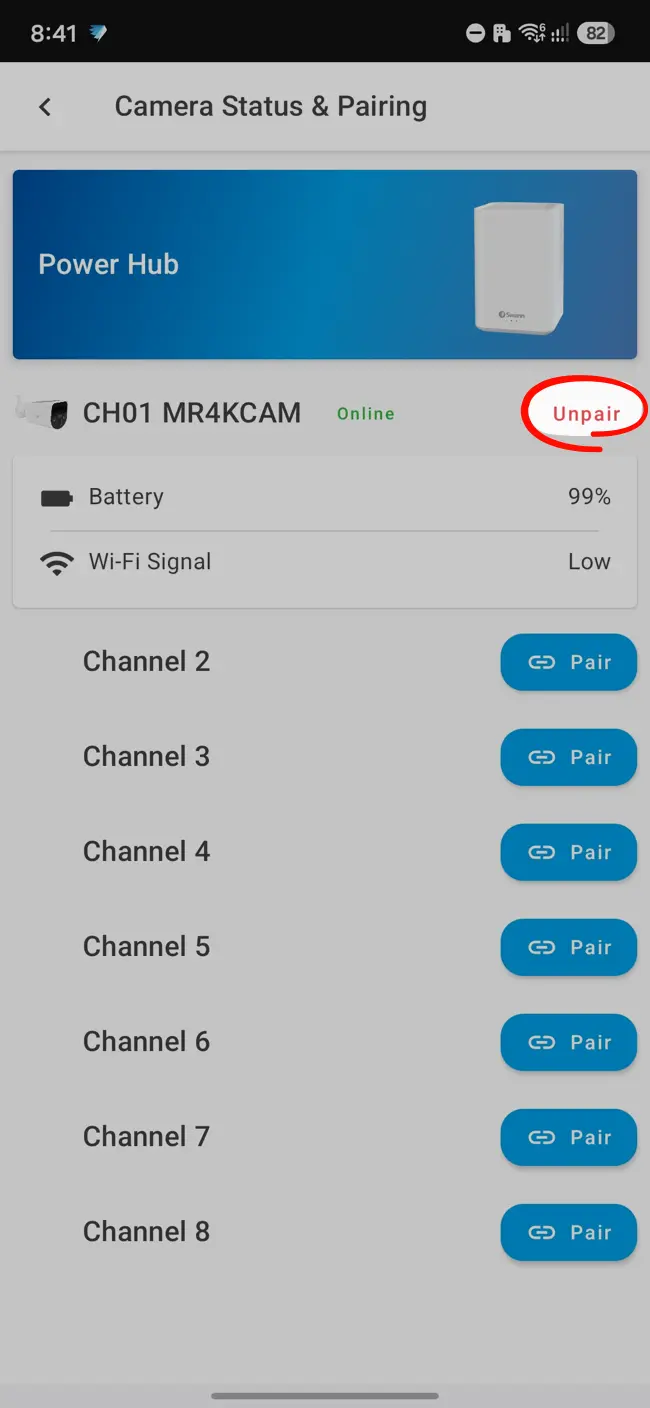

Unpair and Pair the Camera Again
Re-pairing refreshes the wireless connection between the camera and recorder.
- Open the Swann Security app.
- Tap
- Select your MaxRanger4K™ recorder.
- Tap
- Tap for the affected camera.
- Select an available channel and tap
- Follow the on-screen instructions to complete pairing.
- Check whether the wireless signal has improved.
See also: How to Pair a MaxRanger4K™ Camera
If the Issue Still Happens
If the wireless signal is still weak:
- Test the camera closer to the recorder to determine whether distance or obstructions are causing the issue.
- Factory reset the recorder, then set it up again.
- Reconnect the camera and test the wireless signal.
See also:
- How to Factory Reset Your MaxRanger4K™ Recorder
- How to Update MaxRanger4K™ Firmware
- Contact Swann Technical Support
Why This Happens
MaxRanger4K™ uses Wi-Fi HaLow technology, which is designed for reliable long-range communication between the camera and recorder. However, building materials, large metal objects, distance, and wireless interference can still weaken the signal. Keeping antennas properly positioned, minimizing obstacles, and maintaining up-to-date firmware helps ensure the best possible connection.
Related Questions
Can I increase the wireless signal through the settings?
No. There are no settings that boost the wireless signal. Improving the connection requires repositioning the devices or reducing interference.
Does MaxRanger4K™ use 2.4 GHz Wi-Fi?
No. MaxRanger4K™ cameras communicate with the recorder using Wi-Fi HaLow technology, which is separate from traditional 2.4 GHz Wi-Fi.
What is the best antenna position?
Keep detachable antennas securely attached and positioned as close to vertical as possible.
Why does my camera work nearby but disconnect farther away?
This usually means that distance or physical obstructions are weakening the wireless signal. Moving the camera or recorder to improve the wireless path typically resolves the issue.
Summary
Weak wireless signals are usually caused by distance, obstacles, antenna positioning, interference, outdated firmware, or a communication issue between the camera and recorder. Following the troubleshooting steps above will resolve most wireless connection problems before hardware replacement is necessary.
