How to Extend the Battery Life of Your MaxRanger4K™ Camera
MaxRanger4K™ camera has a 12,600mAh lithium battery and a built-in solar panel to keep it charged with the power of the sun. However, just like every other battery-operated system, it will get drained at some point due to several factors.
In this article, you will learn how to get the most out of your camera's battery life.

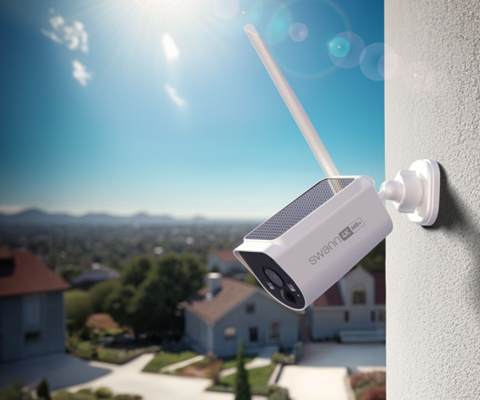

Efficiently Use the Integrated Solar Panel
TheMaxRanger4K™’s built-in solar panel will ensure the camera is charged even during its operation. To get the best results:
- Choose the Right Spot: Place your camera where it will get plenty of sunlight. Avoid spots that are often shaded by eaves, trees, or other structures.
- Keep It Clean: Dust and dirt can reduce the panel’s efficiency. Wipe it down with a soft cloth regularly to keep it working well.
Check out the NVW-MR4KCAM Instruction Manual to see Camera Location Tips.
Use the PIR Sensor Wisely
The Passive Infrared (PIR) sensor is mainly used to detect moving body heat. When there's no such activity, the camera goes on idle. If you are receiving an average of 20 or more motion triggers a day after adding the detection area, you probably need to make adjustments to optimize your camera. That said, to ensure that the camera only activates when it detects movement, here are a few things you could do:

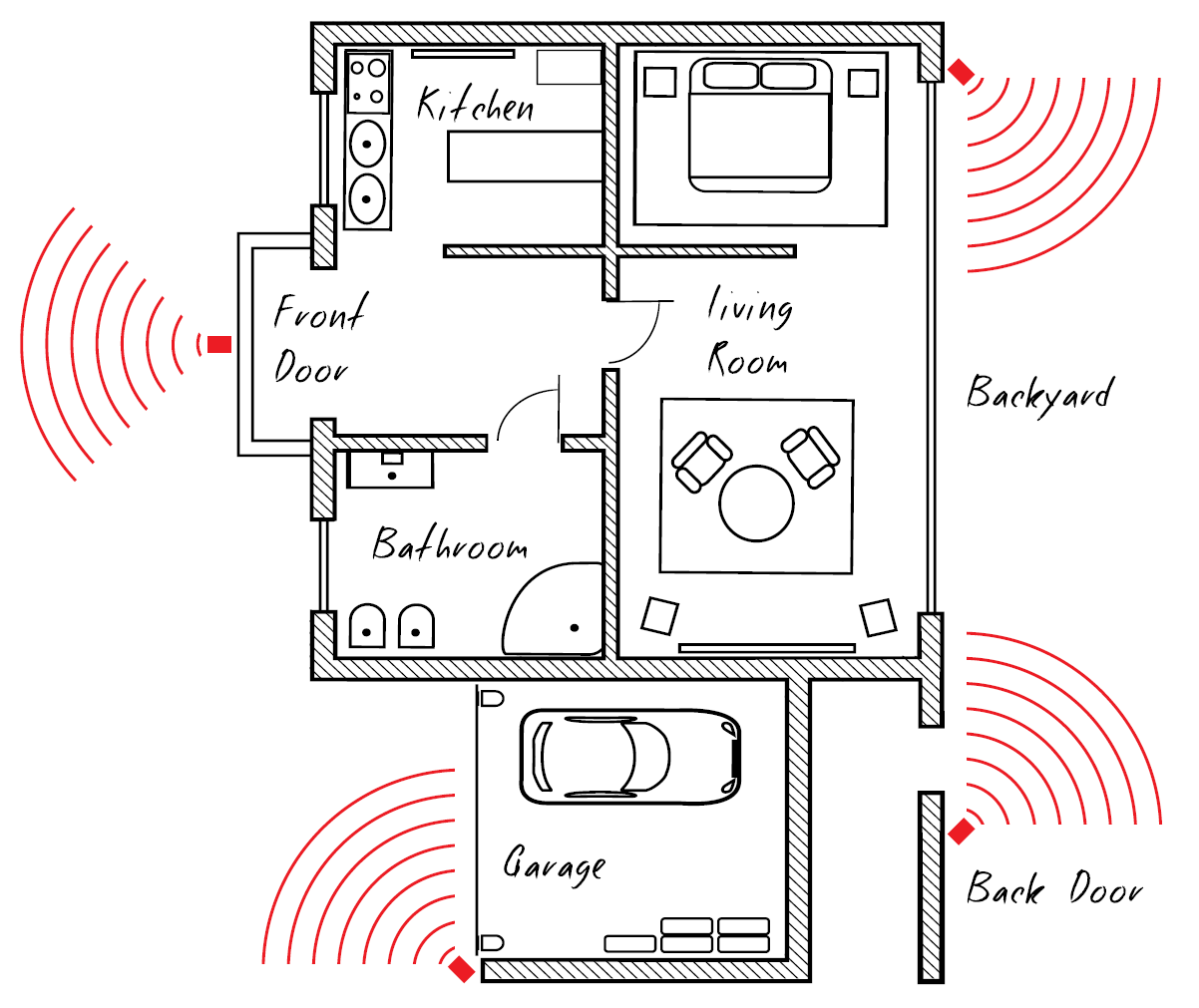

- Smart Placement: Mount your camera where it will pick up relevant activity without too many false alarms, like from passing cars or moving branches.
- Adjust Sensitivity: Fine-tune the sensor’s sensitivity to find the right balance between catching important movements and ignoring unnecessary ones. This can help prevent the camera from waking up too often and save battery life.
To adjust the sensitivity of your camera, it needs to be done on your recorder's settings. Check out the Motion Detection Setup on your MaxRanger4K™ Power Hub's manual.
Efficient Charging Options
While the solar panel does a great job, sometimes you’ll need to charge the battery manually. The MaxRanger4K™ offers flexible options:

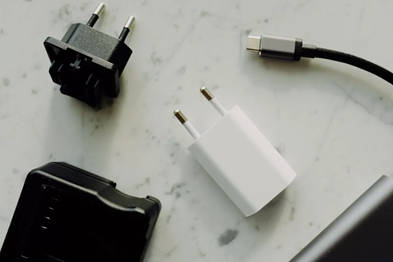

- USB-C Charging: Use the USB-C port for quick and easy charging when needed.
- Extra Solar Power: You can also connect an additional solar panel via the USB-C connection. This can be especially useful during seasons or locations with less sunlight and/or the placement won't get sunlight at all, but that's where you need the camera to be. You can look for extra Solar Panels on the links below:
Optimize Standby Mode

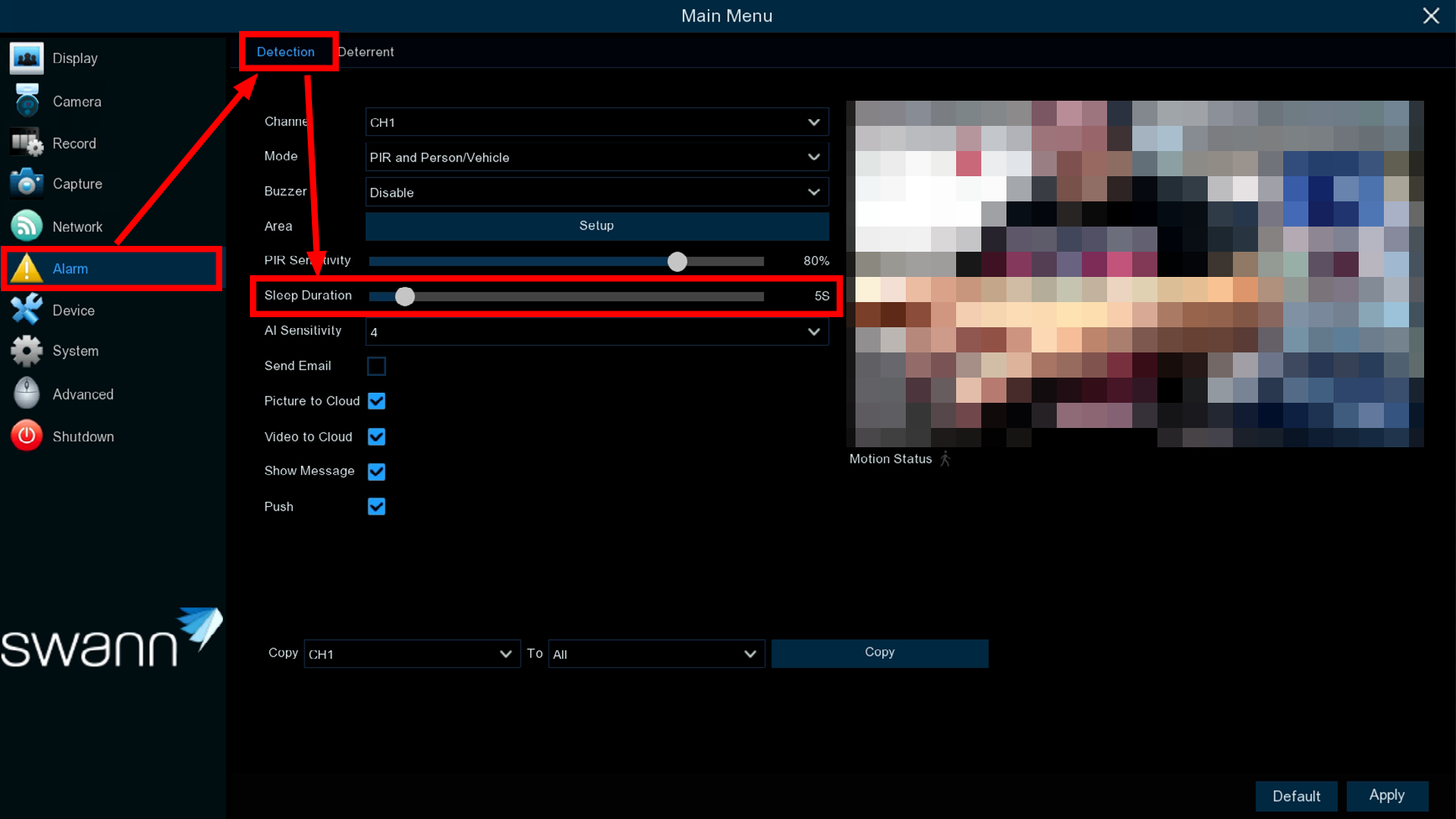

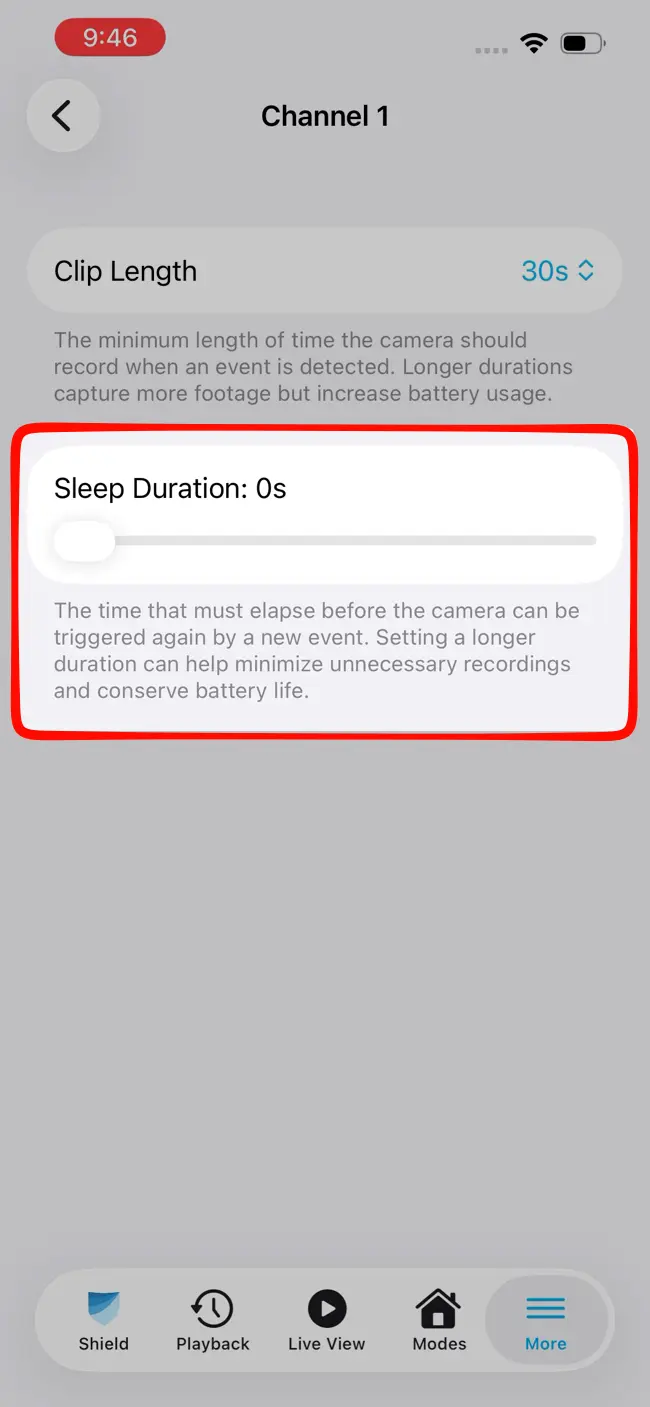

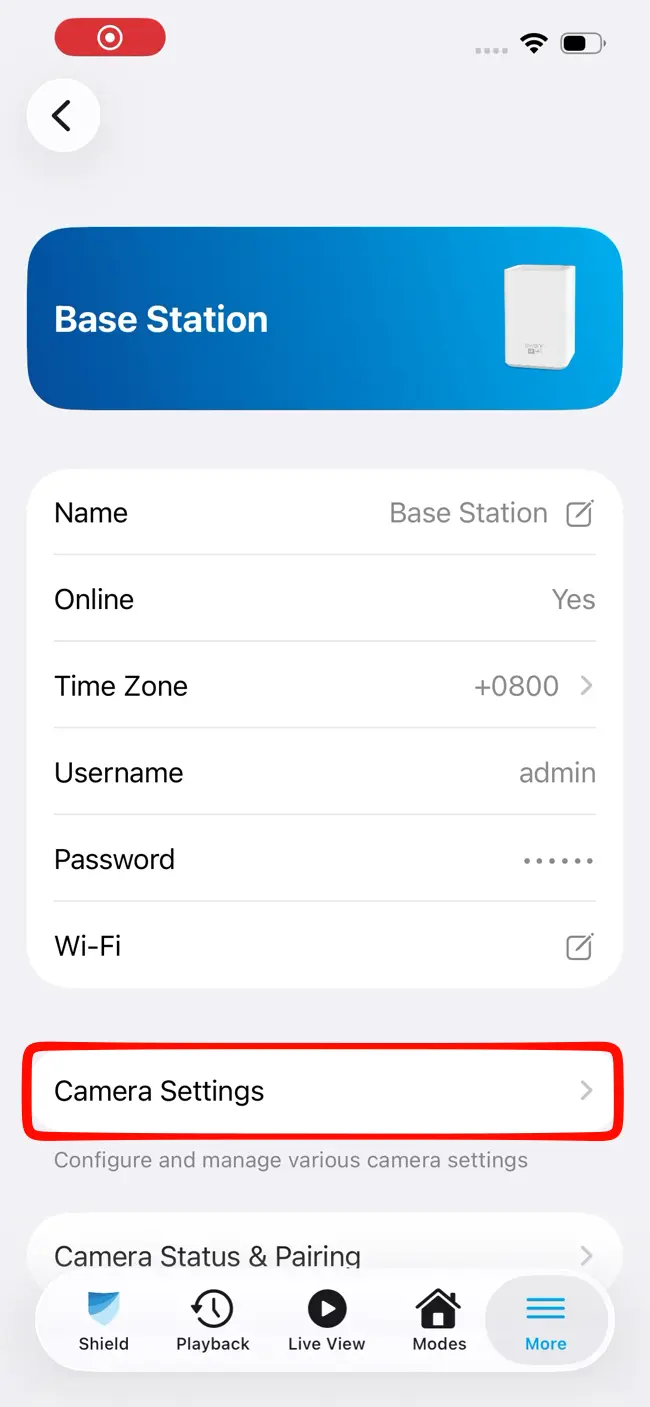

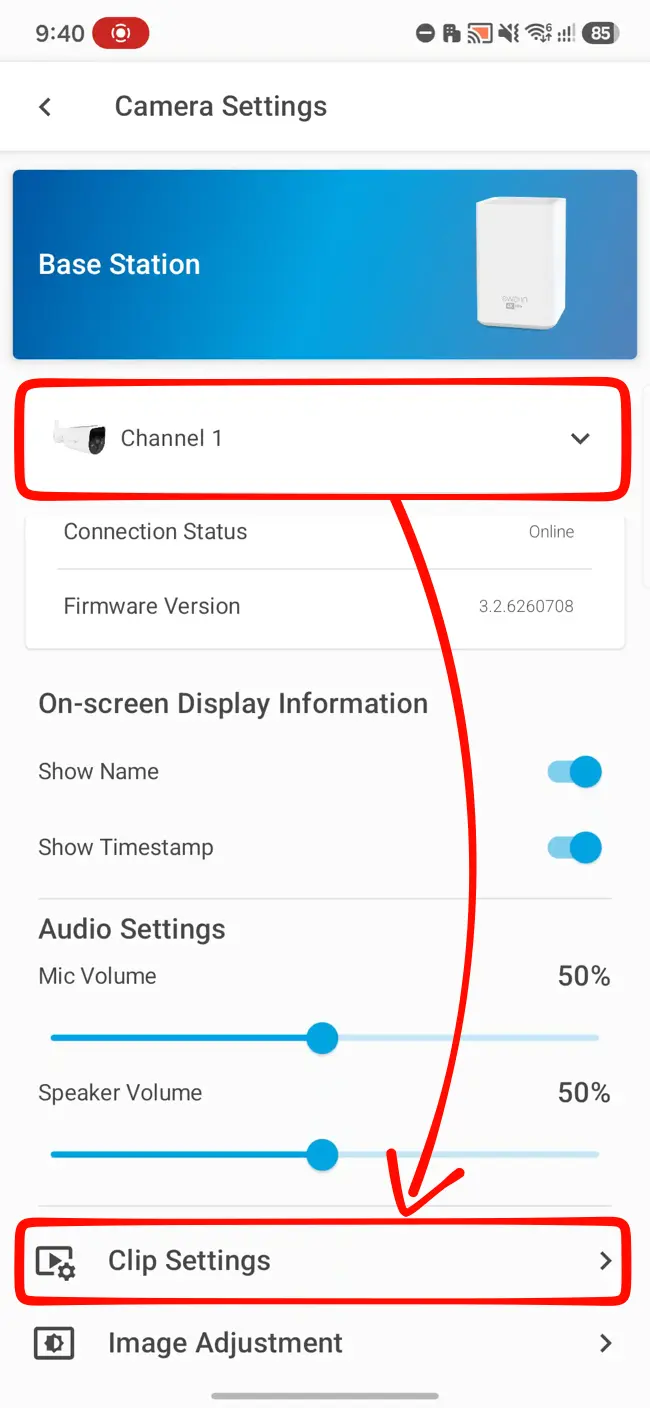

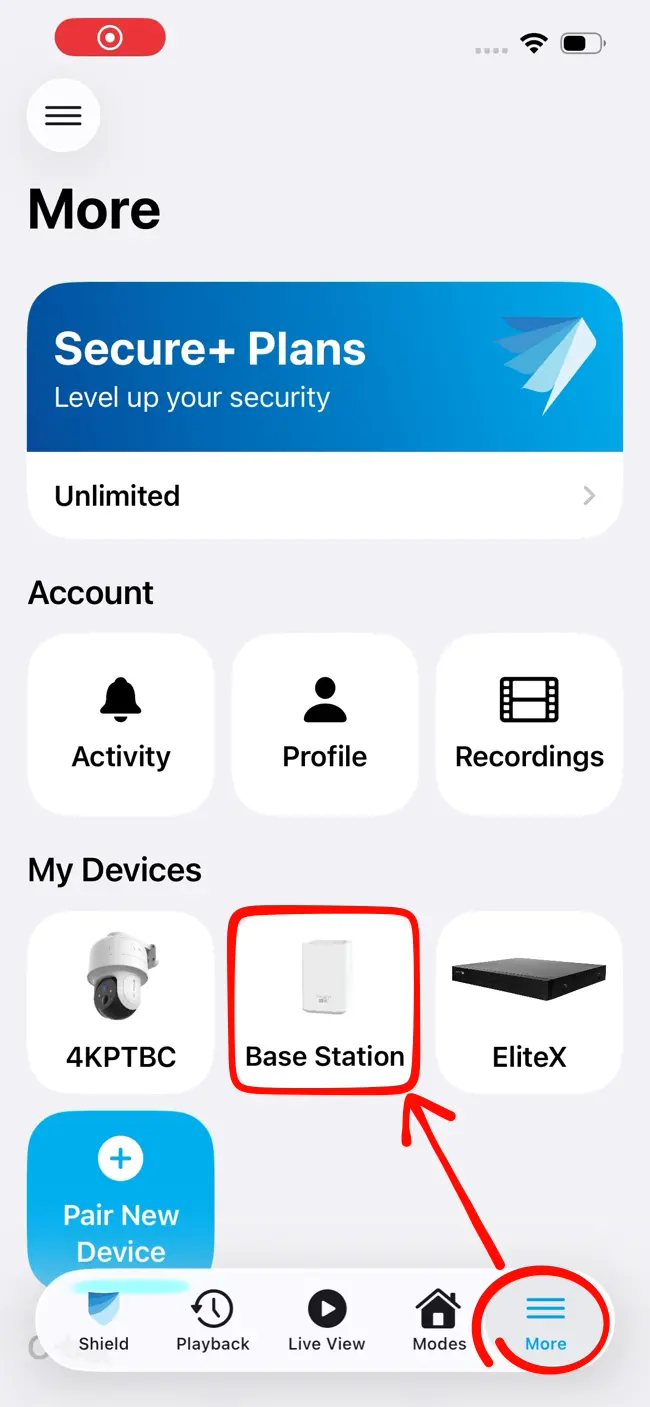

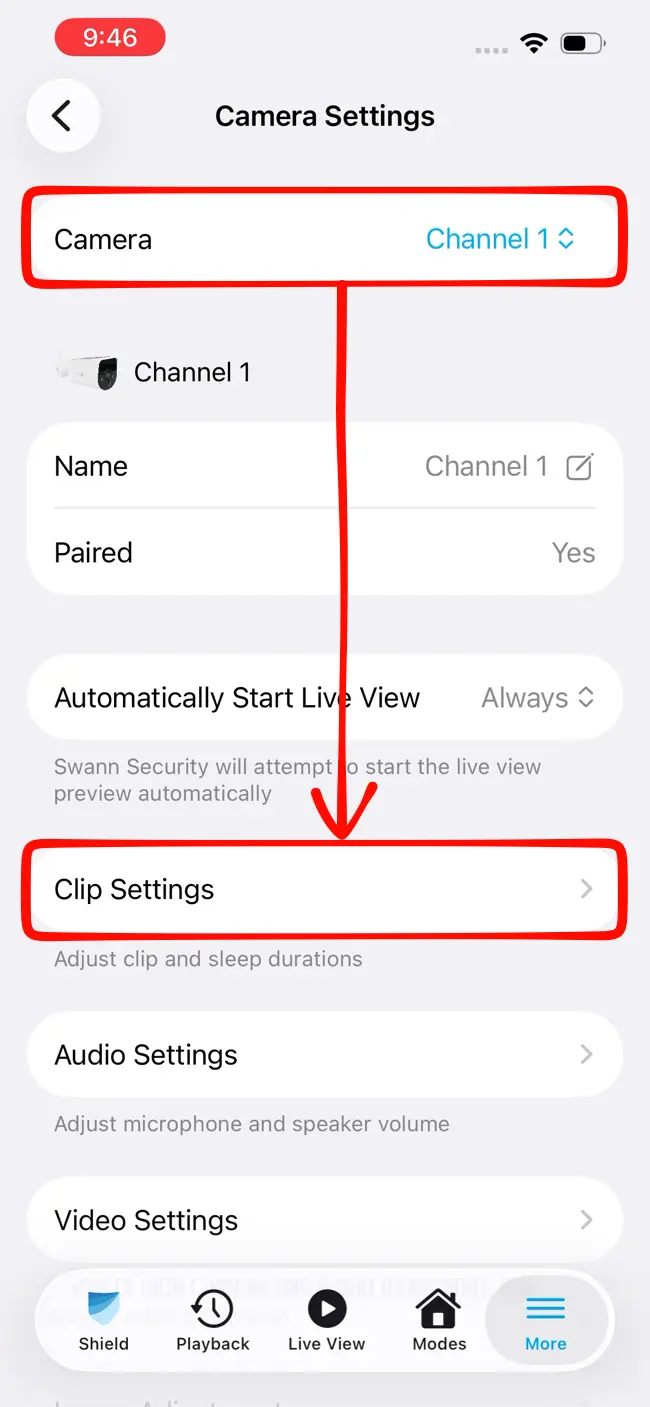

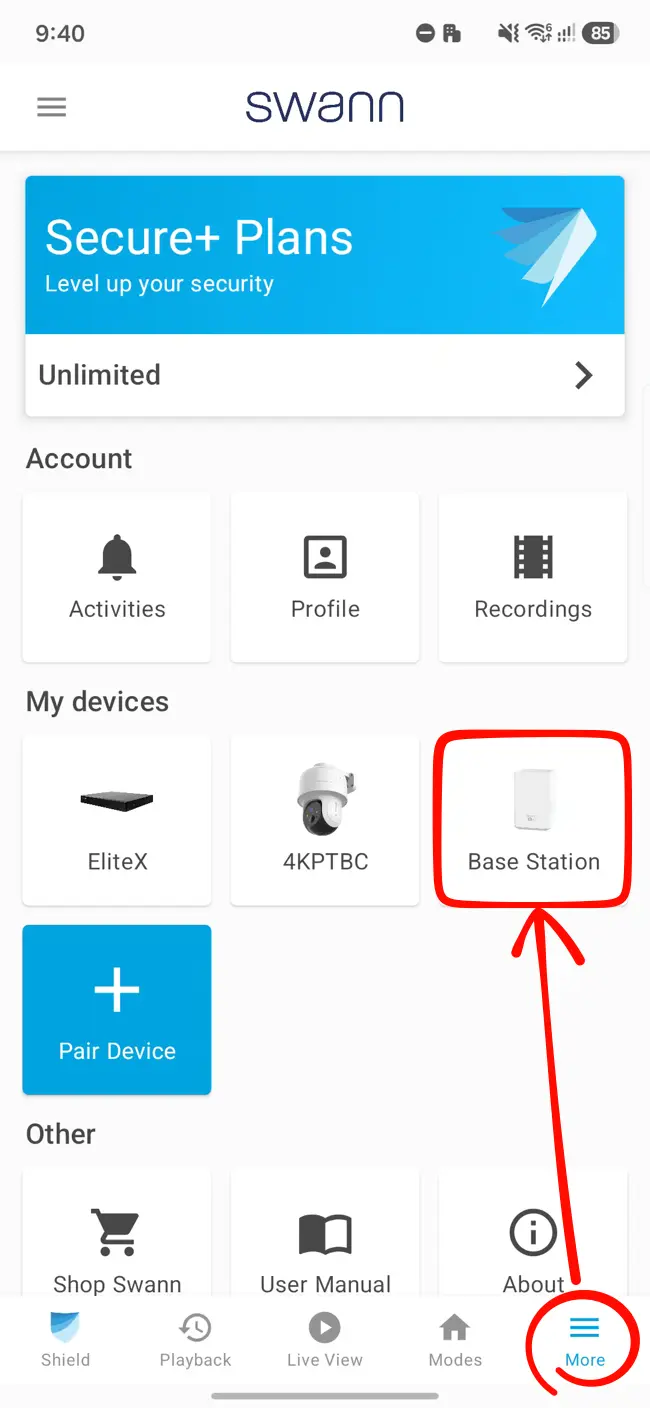

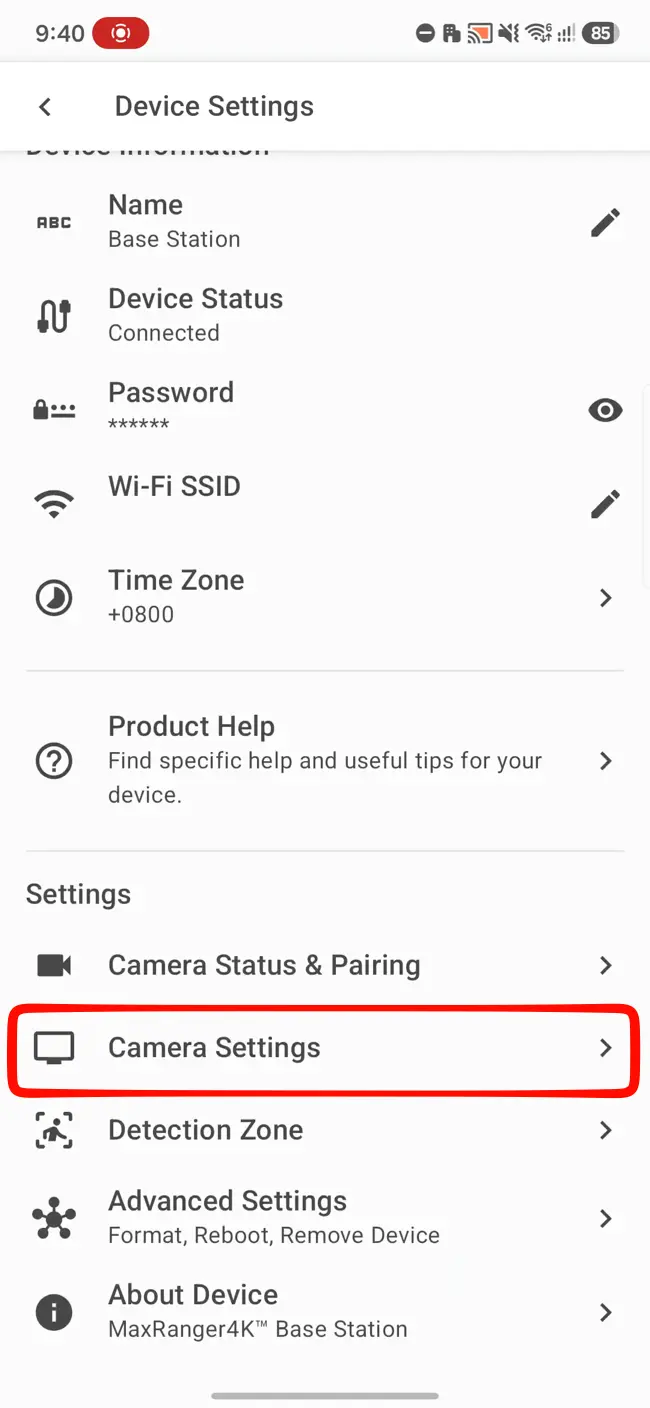

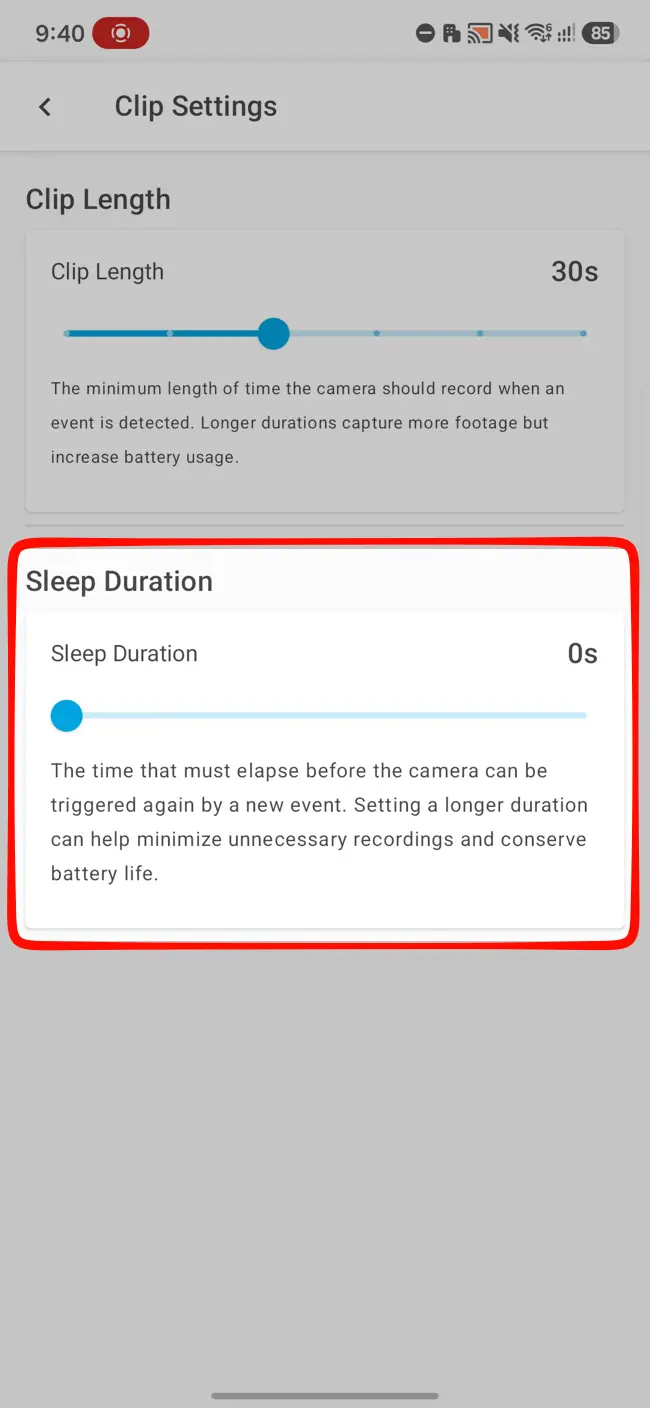

The MaxRanger4K™’s standby mode is key for extended battery life. Adjust the Sleep Duration for when the camera goes into standby mode. This tells you how long the camera stays inactive before entering power-saving mode.
NOTE: Sleep Duration is available in MaxRanger4K™ Power Hub with Software version V8.2.2-20240403 or newer and MaxRanger4K™ Camera with V3.2.0.2403221614.
Check out this article to update the recorder to its latest firmware, while this article is to update to the latest camera firmware.
Regular Maintenance and Updates
Routine maintenance and keeping your camera’s software up to date can also help improve battery performance. Make sure your system's firmware is always up to date. You will get notified in the Swann Security app when there's an update available.
You can also check these articles to see if there's a newer firmware available: How to Update Your Swann Security Recorder Firmware: A Step-by-Step Guide and Essential Steps to Update Your Wireless Add-on Camera Firmware
Conclusion
By following these tips, you can ensure MaxRanger4K™ cameras remain a trusted part of your security system, providing ongoing protection and peace of mind.
