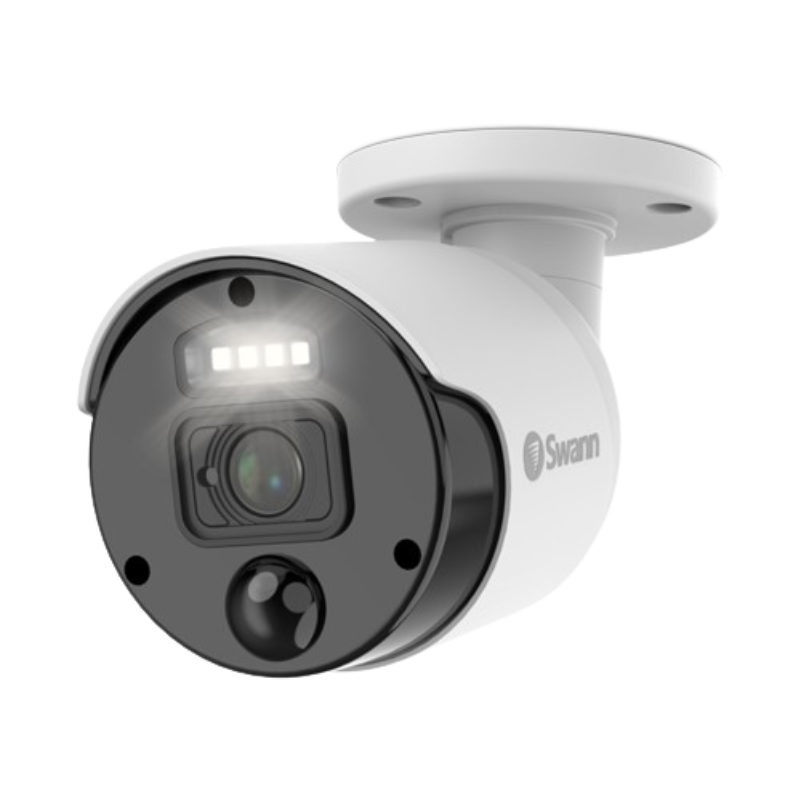

NHD-875WLB - Master-Series 4K Bullet Camera – Swann

Welcome to our NHD-875WLB - Master-Series 4K Bullet Camera resource hub! Whether you’re just starting or have been using it for a while, we’re here to help you get the most out of it. We’ve put together all the essential resources you might need, all in one place.

Feel free to explore each section below to find what you need. And if you have any questions, don’t hesitate to reach out to our support team. Let’s dive in!

Quick reminder! An add-on camera must be connected to a compatible recorder to be viewed on a phone or computer. Refer to this Camera Compatibility Chart to check the compatible recorder for this camera.

Guides

Quick Start Guide

Specs

Model Number	NHD-875WLB
Recorder Type	NVR
Resolution	4K (upscaled)
Viewing Angle	80°
Motion Detection	PIR + Motion (Up to 23ft / 7m)
Night Vision	Yes
Night Vision Range	Up to 130ft / 40m
Deterrent Feature	Lights
Spotlight / Floodlight Range	Up to 32ft / 10m
Audio	Microphone
Mic Range	Up to 16ft / 5m
Indoor/Outdoor	Indoor, Outdoor
IP Rating	IP66
Power Connector	PoE (Power over Ethernet)
Power Source	Supports PoE 802.3af Standard
Wi-Fi Frequency	NONE
Operating Temperature	-22°F to 131°F / -30°C to 55°C
Dimension	6.6" x 2.8" x 2.8" / 142mm x 71mm x 71mm
Lens Size	{no record}
Lumens	{no record}
Siren (dB)	NONE
Color option	white
Other Features
