How to Remove or Install a Hard Drive in a DVR/NVR
Tags: installing hard drive, DVR HDD installation, NVR HDD installation, hard drive replacement, surveillance system storage, DVR hard drive setup, NVR hard drive setup, HDD installation guide, security system maintenance, DVR storage upgrade, NVR storage upgrade, hard drive installation steps, DVR internal components, NVR internal components, HDD compatibility, DVR hardware setup, NVR hardware setup, installing HDD in DVR, installing HDD in NVR, security camera system storage
The hard drive in your DVR or NVR is a critical component that stores all your recorded footage. Whether you’re installing a new hard drive for the first time or replacing a faulty one, understanding how to properly install and remove the HDD is essential for maintaining your surveillance system’s functionality. This guide will walk you through both processes step-by-step, ensuring you can confidently manage your hard drive and keep your system running smoothly.
DID YOU KNOW? There are different types of hard drives, both in size and its capability to operate. Be sure to read What hard drives can I use with my recorder first before buying a hard drive.
Step-by-Step Guide to Installing and Removing an HDD in a DVR/NVR
1. Safety First
Before starting, unplug your DVR/NVR from the power outlet and disconnect all cables connected to it. This is crucial to avoid the risk of electric shock or accidental damage to the device.
2. Access the Recorder's Interior
Place the DVR/NVR on a stable, flat surface for easy handling. Using a Phillips head screwdriver, remove the screws securing the outer case.

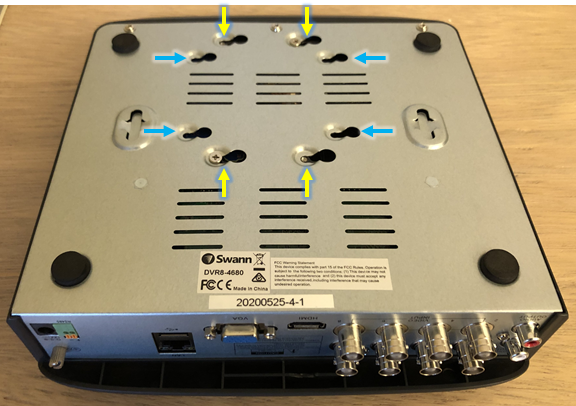

Recorders with a curved top cover will be similar to the sample image below (taken from DVR8-4680X). The screws that hold the cover are underneath and on the sides.

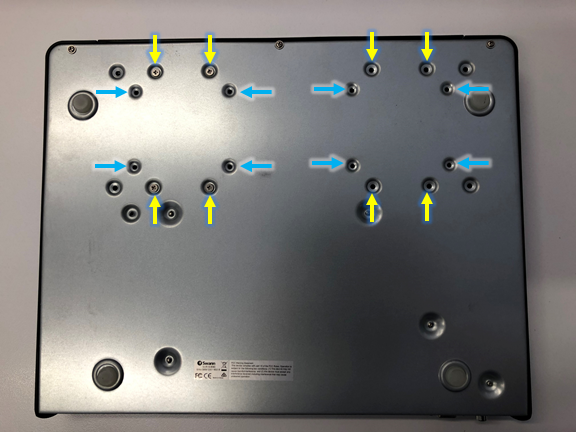

Recorder with a flat top cover will look similar to the sample images below (taken from a DVR16-5580G2). The screws are located at the sides.
3. Open the Case
After removing the screws, carefully flip the recorder over and lift the lid from the rear.
For Recorders with a curved top cover, be cautious not to pull the lid too far, as cables for the front USB ports and LEDs are often connected inside. Gently set the lid aside while leaving these cables intact.
NOTE: Some recorders have their HDD attached directly to the circuit board (see image 3 below), eliminating the need of cable. Carefully unplug them to the board if you will be replacing them.
4. Identify the Mounting Area
Inside the recorder, locate the mounting points for the hard drive. There are typically eight mounts: four for a standard 3.5” hard drive and four for a smaller 2.5” drive. Choose the appropriate mounts for your hard drive size.
You can check this article for an illustration: HDD Mounting Holes
5. Remove or Install the Hard Drive
Remove: Disconnect the two cables (power and data (SATA)) connected to the hard drive. Then, locate the screws that holds the hard drive underneath the recorder. Hold the HDD while unscrewing it to prevent it from falling.
Install: Position the hard drive over the correct mounting points. Hold the drive in place while inserting the screws into the mounting holes and tighten them to secure the drive. Be careful not to over-tighten, as this could damage the hard drive or the mounts—just secure it enough to hold it firmly in place.
Locate the power and data (SATA) cables inside the DVR/NVR. Attach these cables to the corresponding ports on the hard drive. Ensure they are firmly connected but do not use excessive force.
6. Reassemble the Recorder
Place the lid back onto the DVR/NVR, aligning the grooves on the lid with the chassis. Once the lid is correctly positioned, secure it by reinserting and tightening the screws you removed earlier.
DID YOU KNOW? Changing HDD doesn't affect the operating system of your recorder, unlike in PCs. The HDD is only used to store and play recordings; therefore, it is safe to replace the HDD if you need to.
NOTE: Don't forget to format the HDD once you turn on your recorder to store event clips.
Conclusion
Knowing how to install and remove a hard drive from your DVR/NVR is an important skill that ensures your surveillance system remains operational, whether you’re setting it up for the first time or addressing a hardware issue. By following this guide, you can manage your hard drive confidently and maintain the reliability of your security system. Proper handling of your equipment not only enhances its performance but also extends its lifespan, providing peace of mind for your home or business.
