Recommendation: How to Install SwannForce™ Dome Camera

As the SwannForce lighting is installed in the mount base of a SwannForce Dome Camera, some care should be taken to ensure the lights are oriented correctly during the install process. The lights are fixed on the mount base and do not rotate, therefore following the guidelines below will ensure that the lights are visible as intended.

When mounted on a WALL:

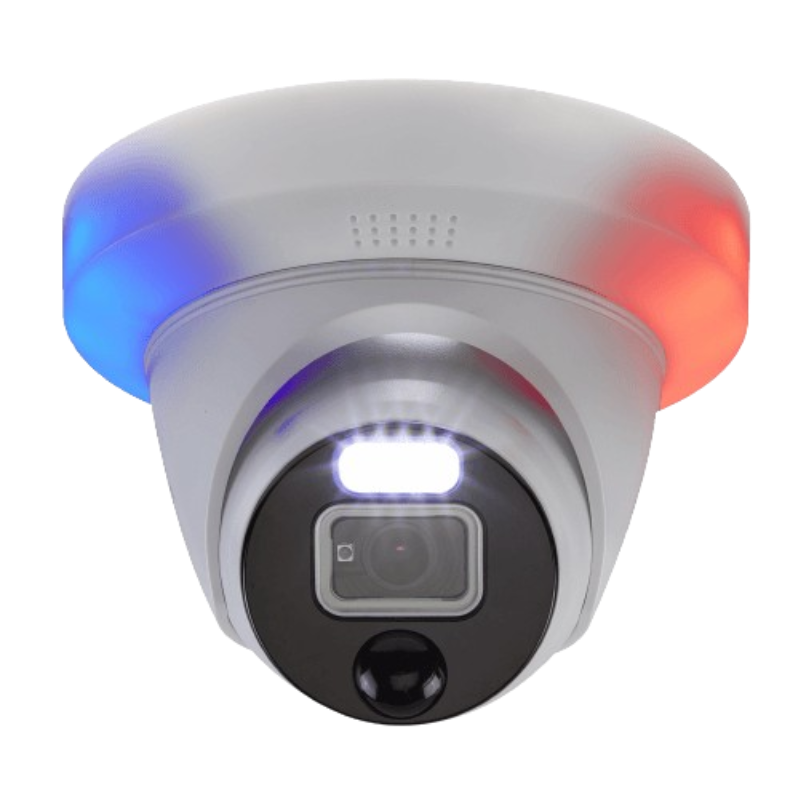

The image used is from NHD-900DE; used to present the LED layout only

1. Speaker must be at the bottom
2. Blue LED will be at the right and Red LED at the left (of the base) following the above recommendation



When mounted on a CEILING:

1. Speaker must be at the front
2. Blue LED will be at the left and Red LED at the right (of the base) following the above recommendation

NOTE: Be careful when pressing the 'camera release' button on the base. The camera may pop out along with theweatherprooff casing
