How to Use Overscan
Calculating...
Last updated:
DVR4-4480G, DVR4-4480RN, DVR4-4480V, DVR4-4580G, DVR4-4580RN, DVR4-4580V, DVR4-4680, DVR4-4680RN, DVR4-4685, DVR4-4685RN, DVR4-4780V, DVR4-4980V, DVR4-5580, DVR4-5580G, DVR4-5580RN, DVR4-5680, DVR4-5680RN, DVR8-4480G, DVR8-4480RN, DVR8-4480V, DVR8-4580G, DVR8-4580RN, DVR8-4580V, DVR8-4680, DVR8-4680A, DVR8-4680RN, DVR8-4685, DVR8-4685RN, DVR8-4780V, DVR8-4880RN, DVR8-4980, DVR8-5580, DVR8-5580A, DVR8-5580G, DVR8-5580RN, DVR8-5580RU, DVR8-5680, DVR8-5680A, DVR8-5680RN, DVR8-5680RU, DVR8-5880RU, DVR16-4580G, DVR16-4580RN, DVR16-4580V, DVR16-4680, DVR16-4680A, DVR16-4680RN, DVR16-4680RU, DVR16-4880RU, DVR16-4980, DVR16-5580, DVR16-5580G, DVR16-5580G2, DVR16-5580RU, NVR8-8580, NVR8-8580RN, NVR8-8600RU, NVR8-8780, NVR8-8780RN, NVR16-8580, NVR16-8580RN, NVR16-8600RU, NVR16-8780, NVR16-8780RN, NVW-650, NVW-800, NVW-MR4K, DVR4-4680XN, DVR4-4680XU, DVR4-4685XU, DVR4-5680XN, DVR8-4680X, DVR8-4680XN, DVR8-4680XU, DVR8-4685XU, DVR8-5680X, DVR8-5680XU, NVR8-ADVANX, NVR16-ADVANX
Blind Access the Menu
- Access then Menu - If you can't see the icons below when you right-click, follow the steps accordingly AND carefully:
- Right-click to pull up the Menu bar.

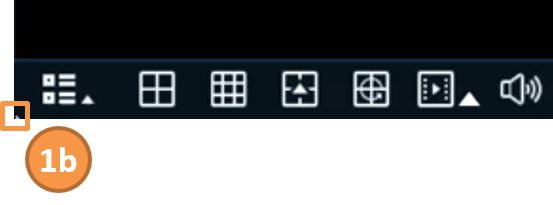

- Drag the mouse pointer to the bottom-left most corner (even if you can't see it).

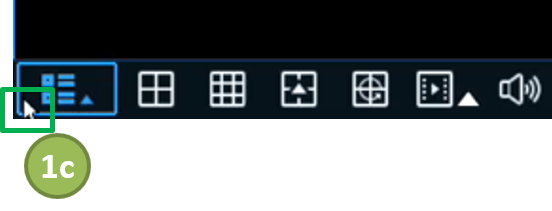

- Move the mouse very slightly upward then to the right (for the arrow to be placed correctly on the Menu icon).
- Left-click to select.
- Once the Menu box showed up, click on Setup. Login if necessary
Change Overscan
Overscan: Auto

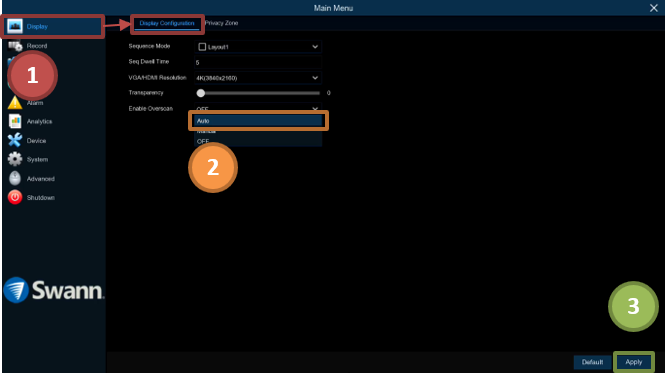

- Go to Display > Display Configuration.
- Set Enable Overscan to AUTO.
- Click on Apply to save the settings.
- If you are now able to see the entire screen, end of troubleshooting.
- If there are still some cut edges, proceed to the next step.
Overscan: Manual
- Set Enable Overscan to Manual.
- Click on Setup beside it.
- Adjust the following depending on the issue:

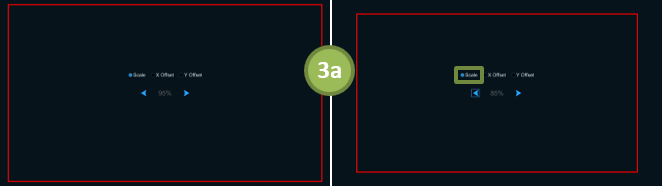

- Scale – adjusts the size of the red box (if you cannot see the red lines on all sides, scale down.

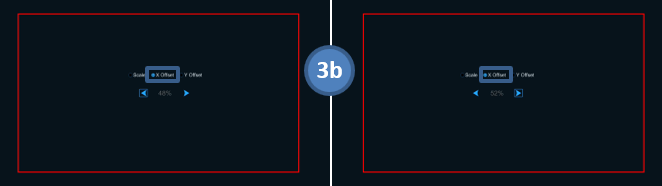

- X Offset – adjusts the position of the red box horizontally(50% places it at the center):
- Lower number, box goes to the left
- Higher number, box goes to the right

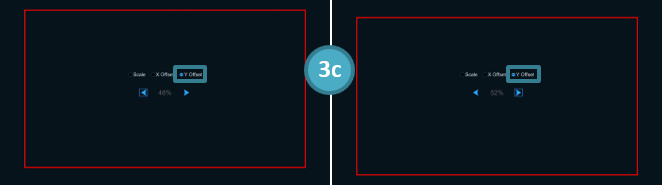

- Y Offset – adjusts the position of the red box vertically(50% places it at the center):
- Lower number, box goes to the top
- Higher number, box goes to the bottom
- Scale – adjusts the size of the red box (if you cannot see the red lines on all sides, scale down.
- Right-click to go back.

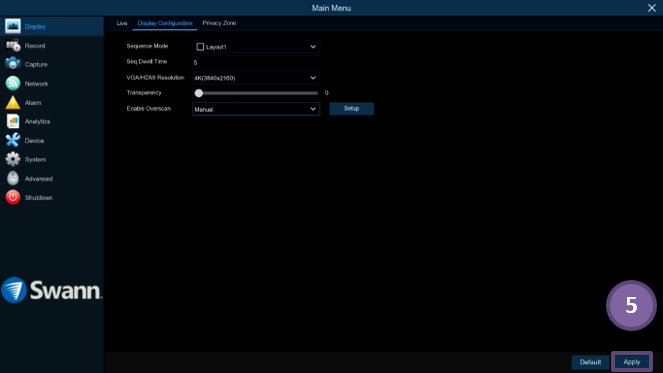

- Click Apply to save the settings.
