How to display or hide the Event Notification Panel in NVR Live View

Calculating...
Last updated:

The Event Notification Panel displays a righthand-side banner with thumbnails of events that occurred via person, vehicle, motion detection or if one or more of the analytic tools have been enabled. Events are color-coded according to the event type.

This feature is only available in NVR-8580, 8780, and 8600 units.

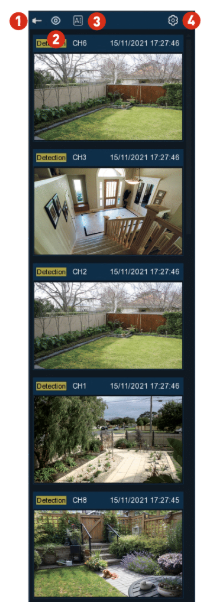

v8 event notification panel.png

Use the mouse scroll wheel to scroll up and down (place the mouse cursor over the notification panel first). Click the play button next to or over the thumbnail to play the event.

  1. Click to display the notification panel at all times.
  2. Click to hide the notification panel.
  3. Click to reveal analytic statistics information.

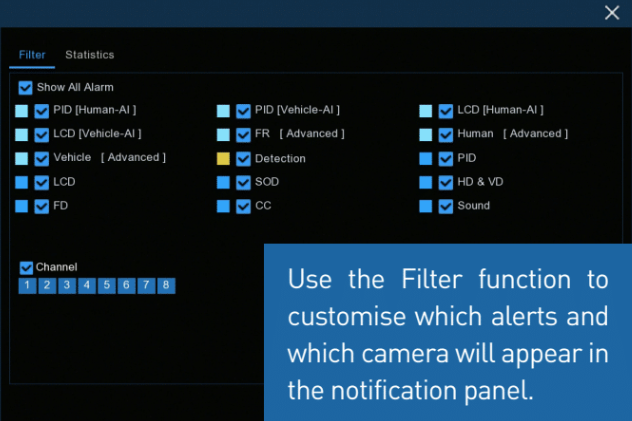

  4. Click to reveal the Filter and Statistics functions (Fil-ter function shown below).
v8 event notification panel filter.png
