How to Configure Motion Detection on a Swann Security Recorder
If motion detection is not working on your Swann Security Recorder, the recorder may not be configured to detect movement or the motion settings may need adjustment. This commonly happens after changing recording settings, restoring factory defaults, or when the detection area or sensitivity is set incorrectly.
Things to Prepare
- Your Swann Security Recorder is powered on.
- A monitor and mouse are connected to the recorder (except for Base Station)
- You are logged in with an administrator account (except for Base Station)
- The camera is displaying live video normally.
- The area you want to monitor is within the camera's field of view.
- Choose the model of your system:
Common Causes
Motion detection may not work because:
- Motion detection is disabled.
- Motion sensitivity is set to 0 or Off.
- The motion detection zone is not configured correctly.
- Movement is too small or too far away for the camera to detect.
- For PIR cameras, the subject is outside the PIR sensor's detection range.
Step-by-Step Fixes
Configure Motion Detection Settings
The recorder must have motion detection enabled before it can trigger recordings or alerts.

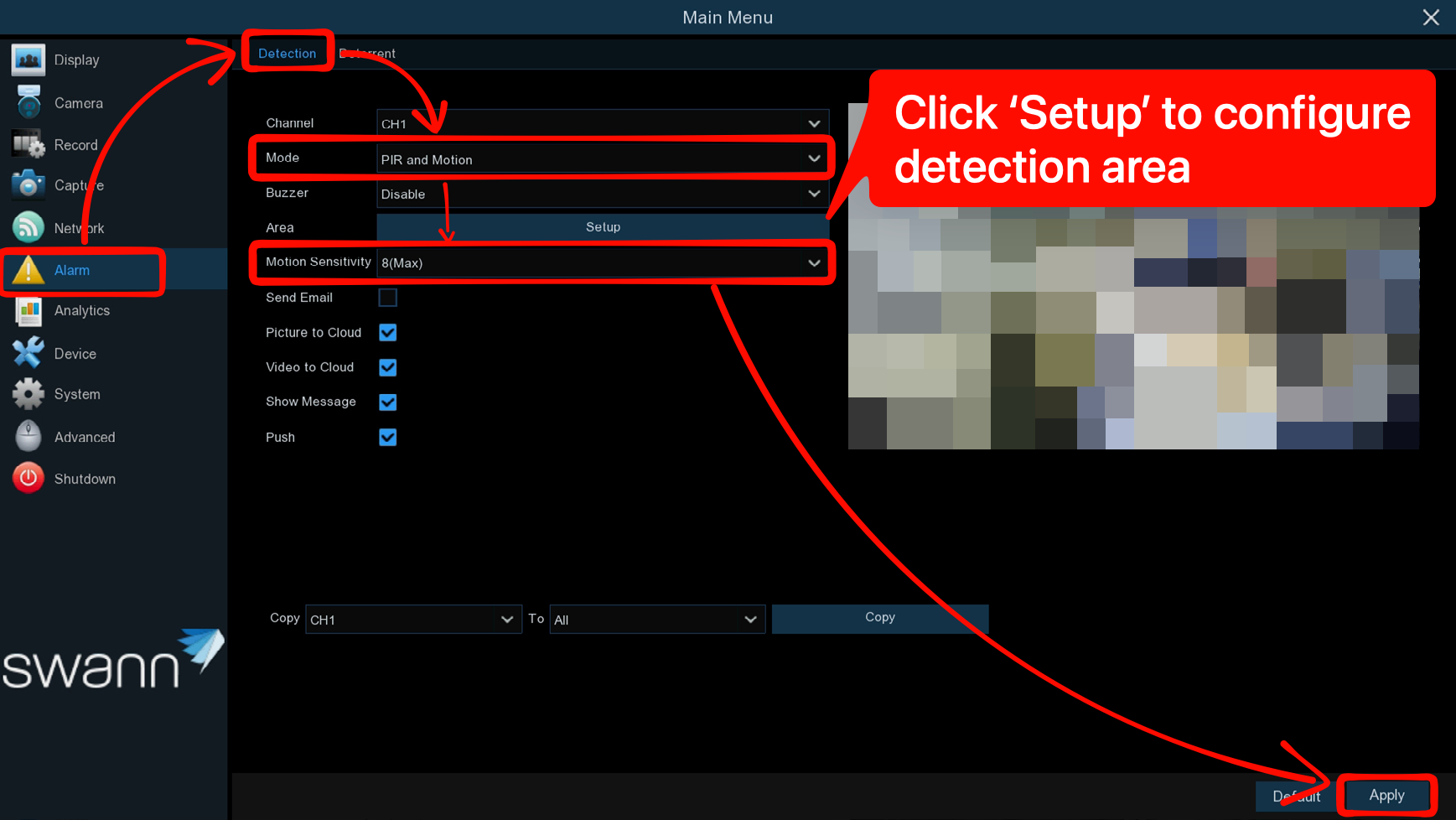

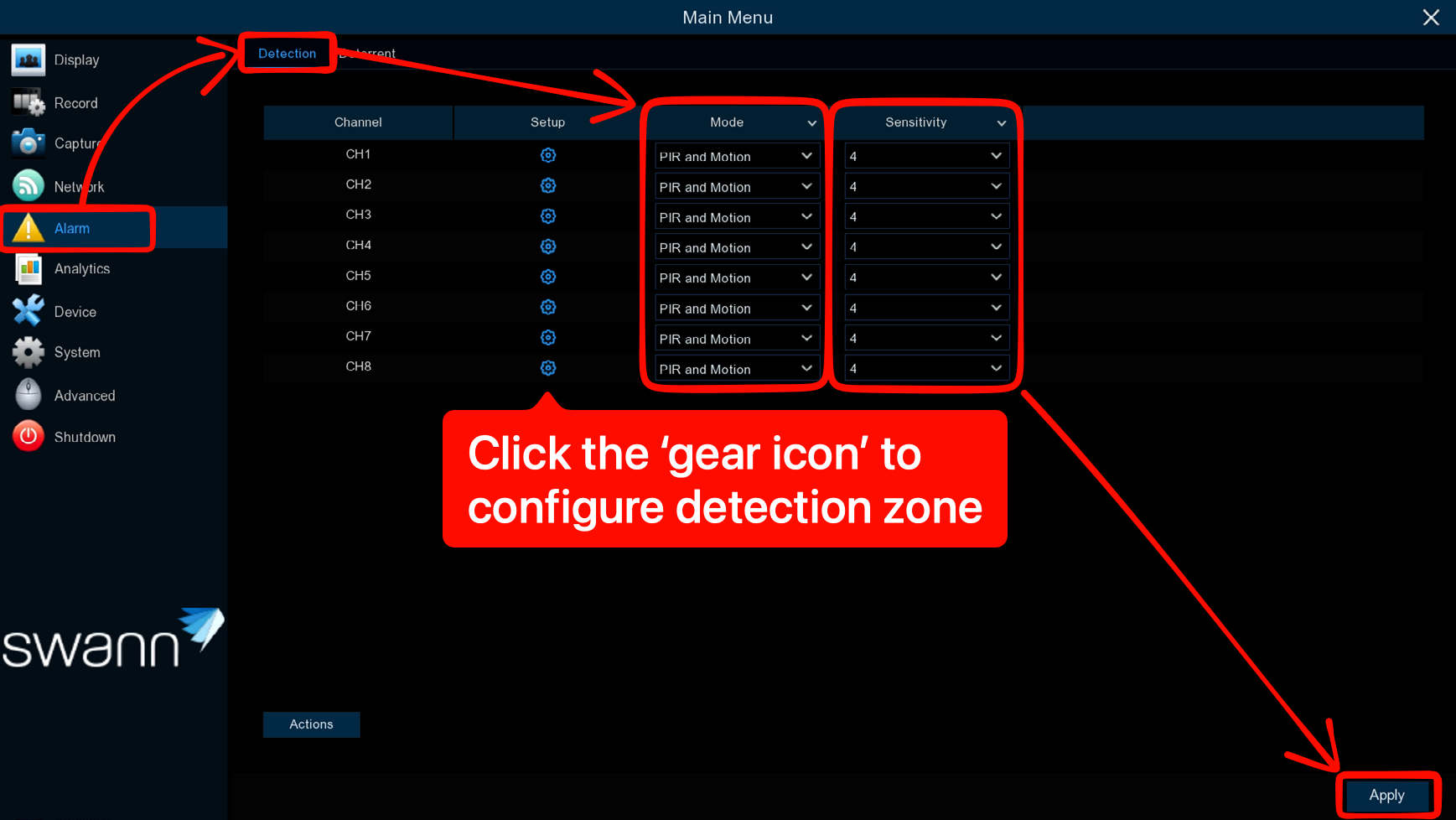

For DVR and NVR:
- Go to Menu > Alarm > Detection
- Under Mode, choose
PIR and Motionon channels that you want to configure. - Also set the Sensitivity setting for the channel.
- Change the value to adjust sensitivity (
8= most sensitive,1= least sensitive).
Higher sensitivity detects smaller movements but may increase false alerts.
- Change the value to adjust sensitivity (
- Click to save changes.
Next, configure the Detection Area by clicking the gear icon under Setup for each channels.
For SecureAlert™ system:
- Go to Menu > Alarm > Detection
- On Mode, choose
PIR and Motionon channels that you want to configure. - Also set the Sensitivity setting for the channel.
- Change the value to adjust sensitivity (
8= most sensitive,1= least sensitive).
Higher sensitivity detects smaller movements but may increase false alerts.
- Change the value to adjust sensitivity (
- Click to save changes.
Next, configure the Detection Area by clicking on each channels.

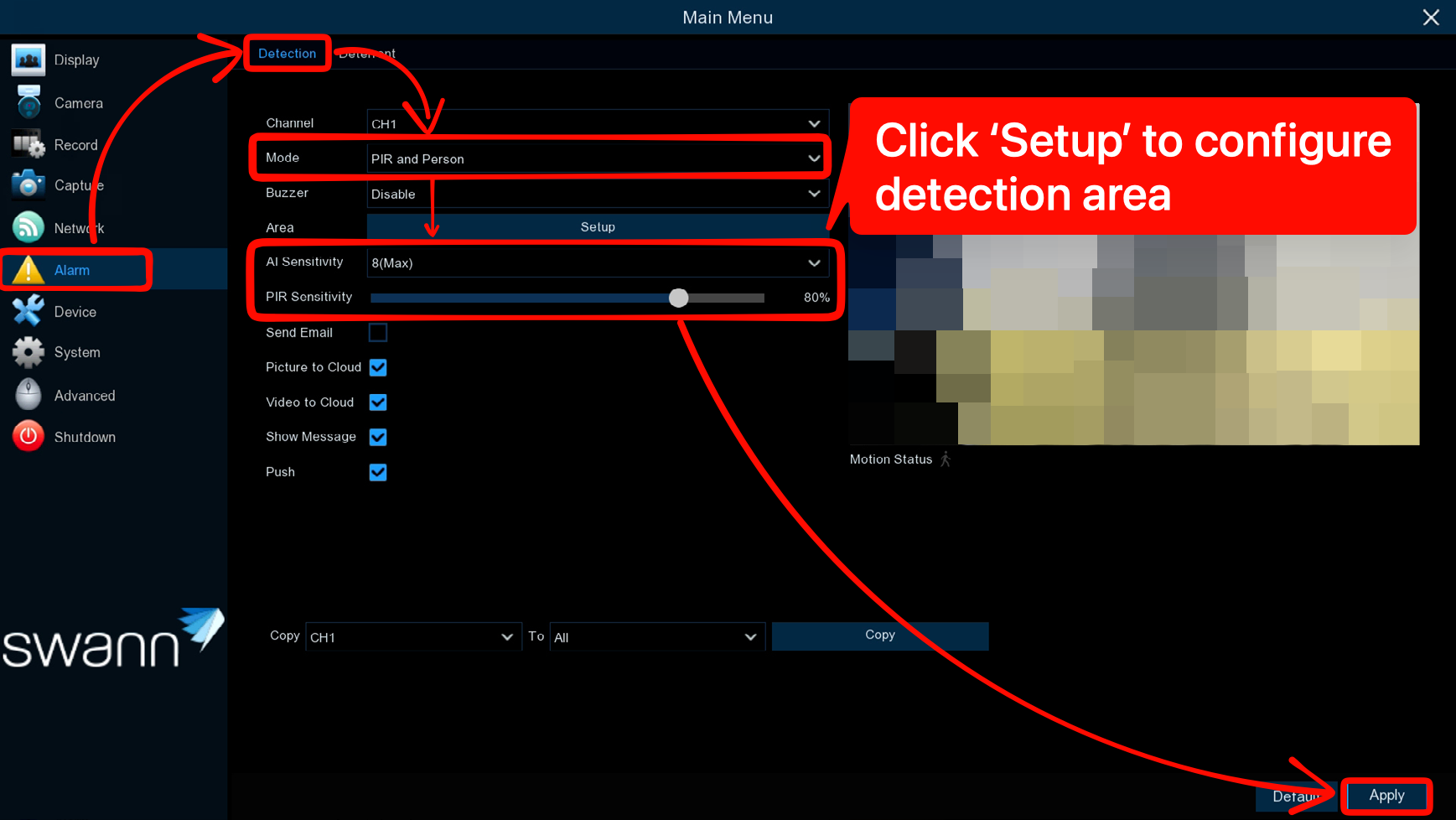

For AllSecure system:
- Go to Menu > Alarm > Detection
- On Mode, choose
PIR and Personon channels that you want to configure.
This triggers when a heat and moving person are detected. - Also set the Sensitivity setting for the channel.
- AI Sensitivity is responsible in identifying if there is a person in frame, or not.
- PIR Sensitivity is responsible in detecting a heat source.
- Change the value to adjust sensitivity (AI:
8= most sensitive | PIR:100%= most sensitive)
Higher sensitivity detects smaller movements and low heat register but may increase false alerts. - Click to save changes.
Next, configure the Detection Area by clicking on each channels.

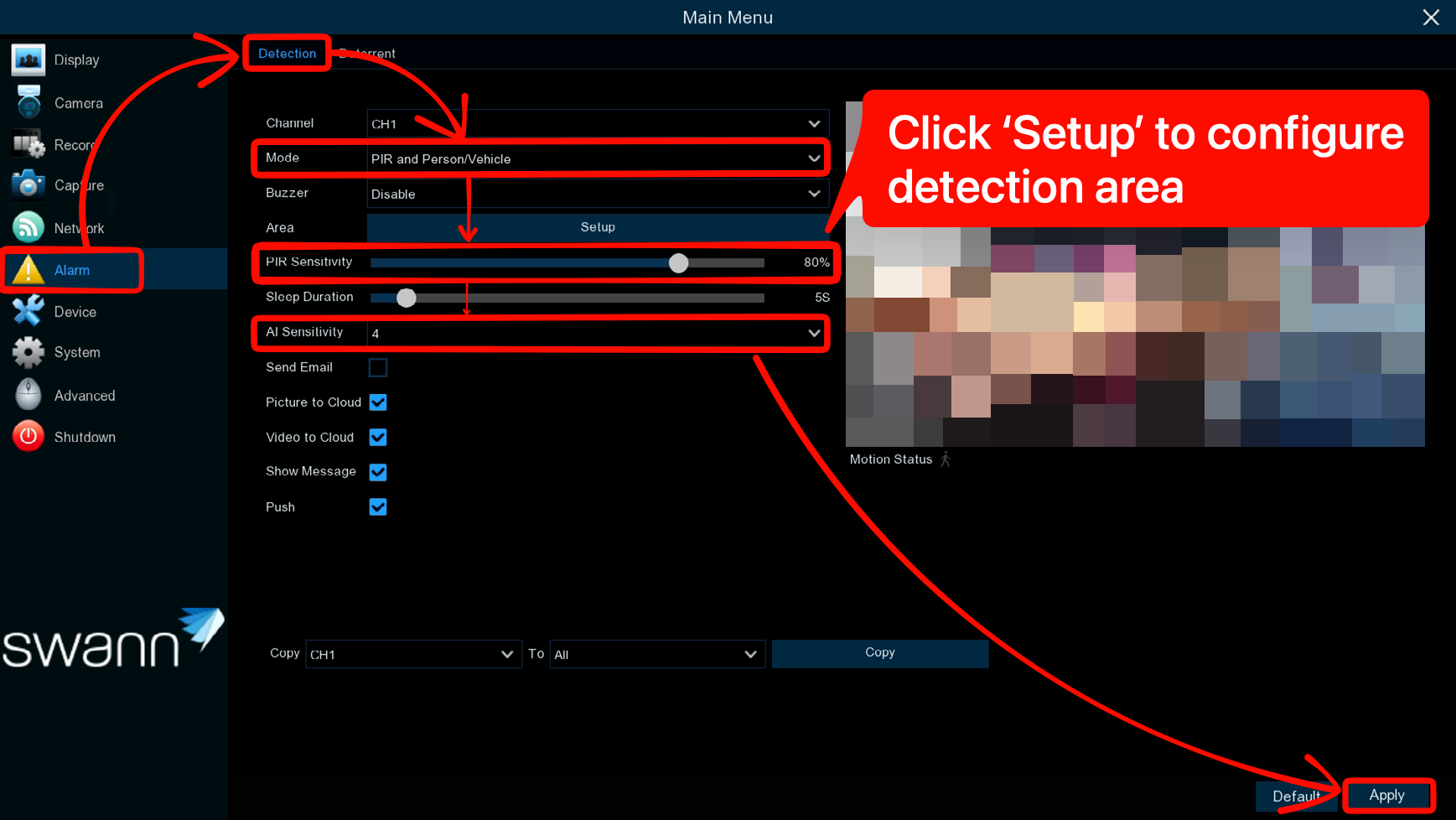

For MaxRanger4K™ Power Hub (NVW-MR4K):
- Go to Menu > Alarm > Detection
- On Mode, choose
PIR and Person/Vehicleon channels that you want to configure.
This triggers when a heat and moving person/vehicle are detected. - Also set the Sensitivity setting for the channel.
- PIR Sensitivity is responsible in detecting a heat source.
- AI Sensitivity is responsible in identifying if there is a moving person or vehicle in frame, or not.
- Change the value to adjust sensitivity (AI:
8= most sensitive | PIR:100%= most sensitive)
Higher sensitivity detects smaller movements and low heat register but may increase false alerts. - Click to save changes.
Next, configure the Detection Area by clicking on each channels.Simplified version:
NOTE: The 'Motion Detection sensitivity' setting in the Swann Security app (under Modes) doesn’t always match the setting in your Hub.
- If your Hub is set to
PIR + Person/Vehicle, changing sensitivity in the app won’t affect the Hub; changing the sensitivity in the Hub won't sync in the app- If your Hub is set to
PIR + Motion, then adjusting sensitivity in the app will update the Hub; and vice versaIn short: The app only controls sensitivity when your detection mode is set to 'PIR + Motion'

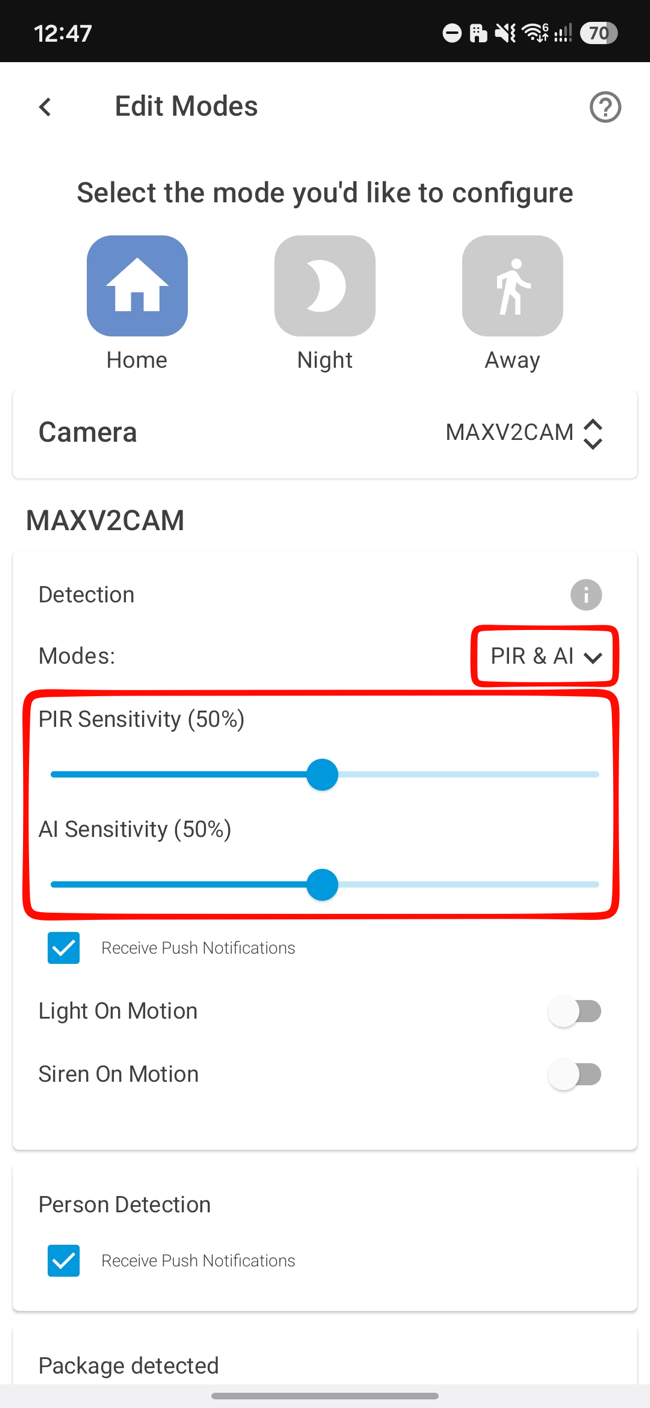

For MaxRanger4K™ Base Station (NVW-MR4KSTN):
- Open Swann Security app and edit Modes
- On each Mode (Home, Night, or Away) and camera, make sure (Detection) Modes is NOT
Disabled - All Sensitivity sliders must NOT be
0%- PIR Sensitivity is responsible in detecting a heat source.
- AI Sensitivity is responsible in identifying if there is a moving person or vehicle in frame, or not.
- Motion Sensitivity is responsible in identifying if there is a moving subject.
- Change the value to adjust sensitivity (
100%= most sensitive)
Higher sensitivity detects smaller movements and low heat register but may increase false alerts.

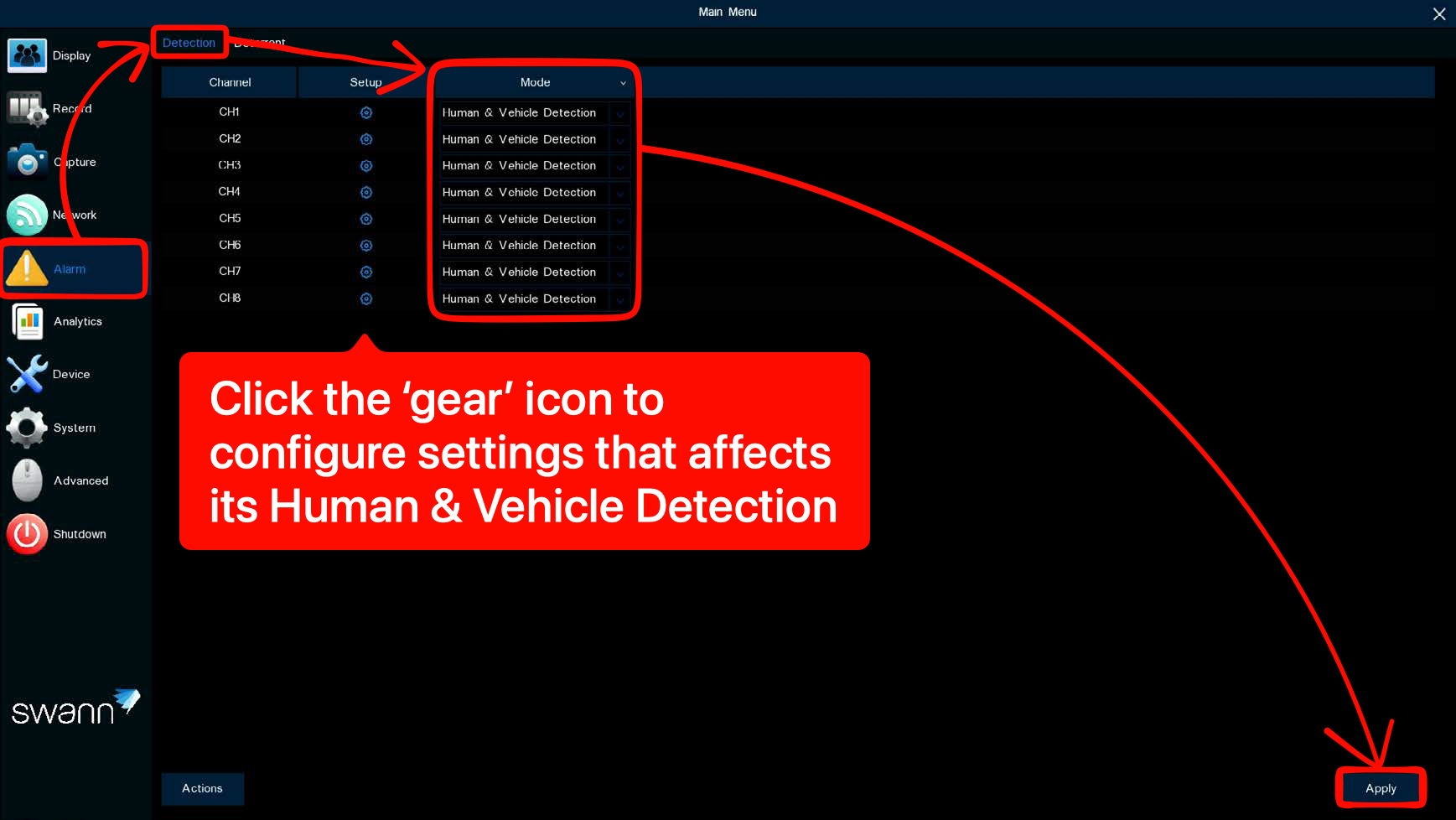

For AdvancedX™ system:
- Go to Menu > Alarm > Detection
- On Mode, choose
Human & Vehicle Detectionon channels that you want to configure.
This triggers when a moving person/vehicle is detected. - Click to save changes.
Next, configure Sensitivity and Detection Area by clicking the gear icon under Setup for each channels.
For EliteX™ system:
EliteX™ that is NOT paired to Swann Security

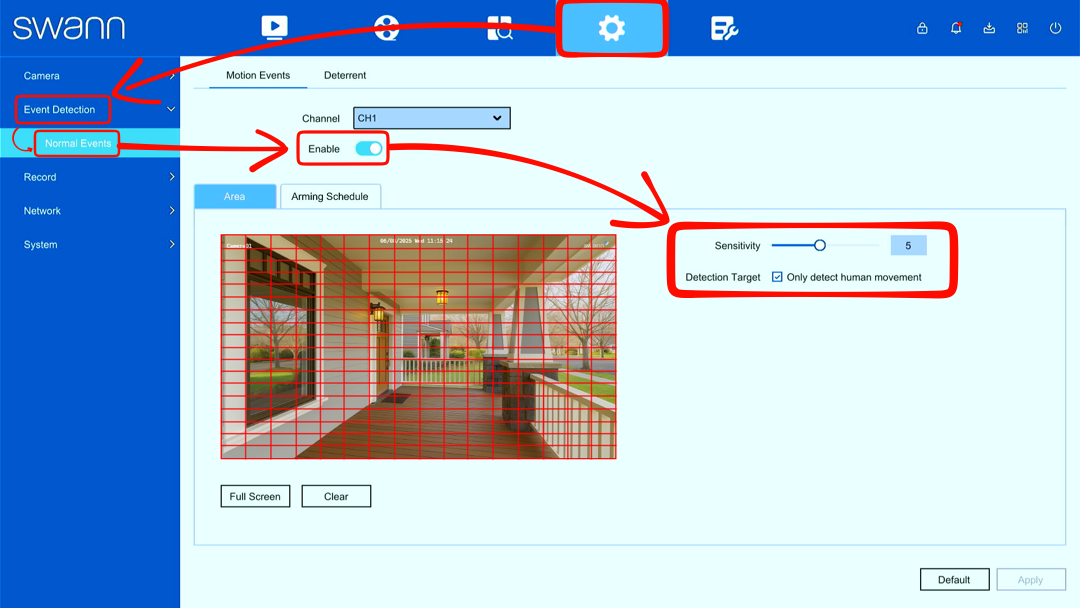

- Go to Configuration > Event Detection > Normal Events
- On each channel, make sure the toggle switch is enabled <i class="fa-solid fa-toggle-on"></i>
-
Set the Sensitivity - Change the value to adjust sensitivity (
8= most sensitive)
Higher sensitivity detects smaller movements and low heat register but may increase false alerts. - Click to save changes.
You can enable Only detect human movement to get less false triggers cause by non-human movement.

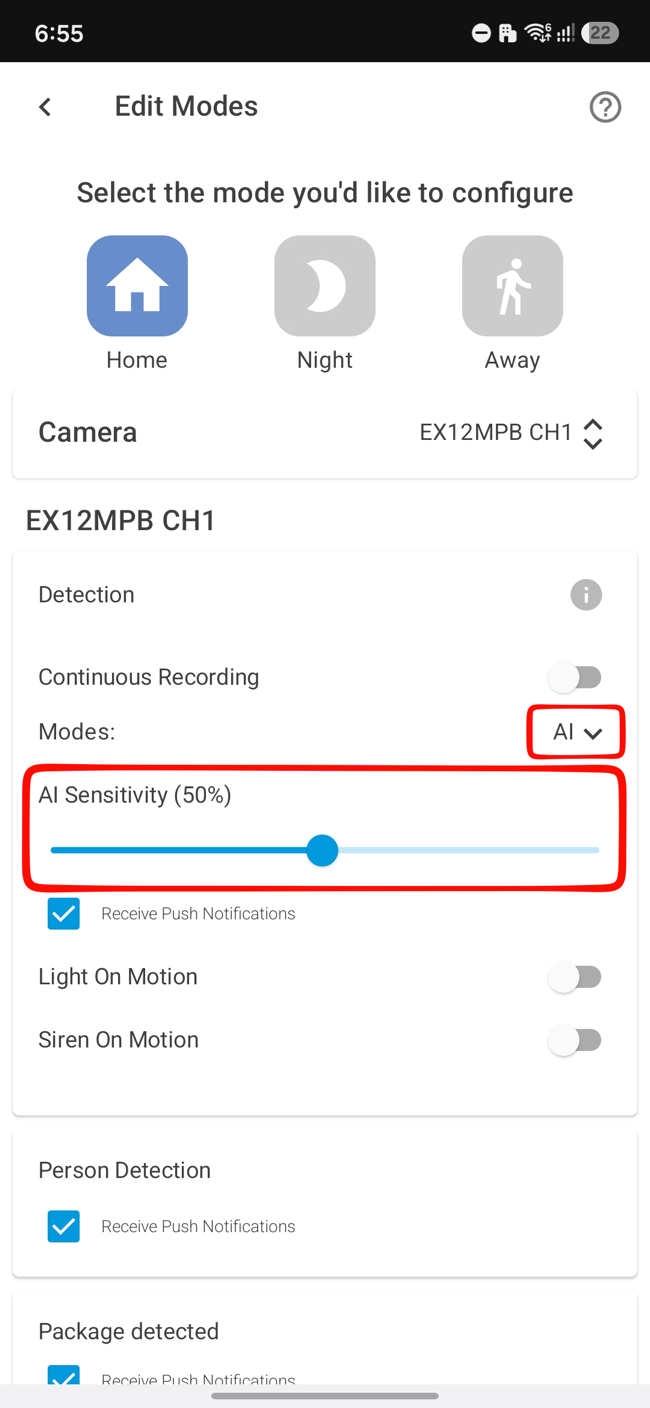

EliteX™ that is PAIRED to Swann Security
- Open Swann Security app and edit Modes
- On each Mode (Home, Night, or Away) and camera, make sure (Detection) Modes is NOT
Disabled - All Sensitivity sliders must NOT be
0%- AI Sensitivity is responsible in identifying if there is a moving person or vehicle in frame, or not.
- Motion Sensitivity is responsible in identifying if there is a moving subject.
- Change the value to adjust sensitivity (
100%= most sensitive)
Higher sensitivity detects smaller movements and low heat register but may increase false alerts.
Expected result: Motion events should now be detected when movement occurs within the selected area.
Common mistake: Setting sensitivity to 0 or Off prevents the recorder from detecting motion.
Configure the Motion Detection Area
Only movement inside the selected detection zone will trigger recording or alerts.
For DVR, NVR, SecureAlert™, AllSecure, and MaxRanger4K™ Power Hub (NVW-MR4K):

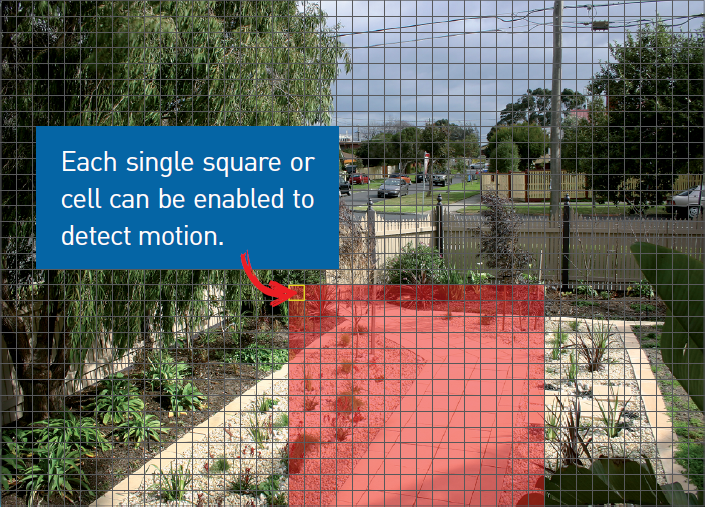

- Once on Detection Area settings, you’ll see a grid overlay on the camera view.
- Identify the areas where you want motion to be detected.
- Red boxes = active detection zones
- Click or click-and-drag on any clear areas to turn them red if you want that area monitored.
- Avoid unnecessary areas (like trees or roads outside your property) to reduce false alerts.
- Right-click to exit and save the detection area settings.

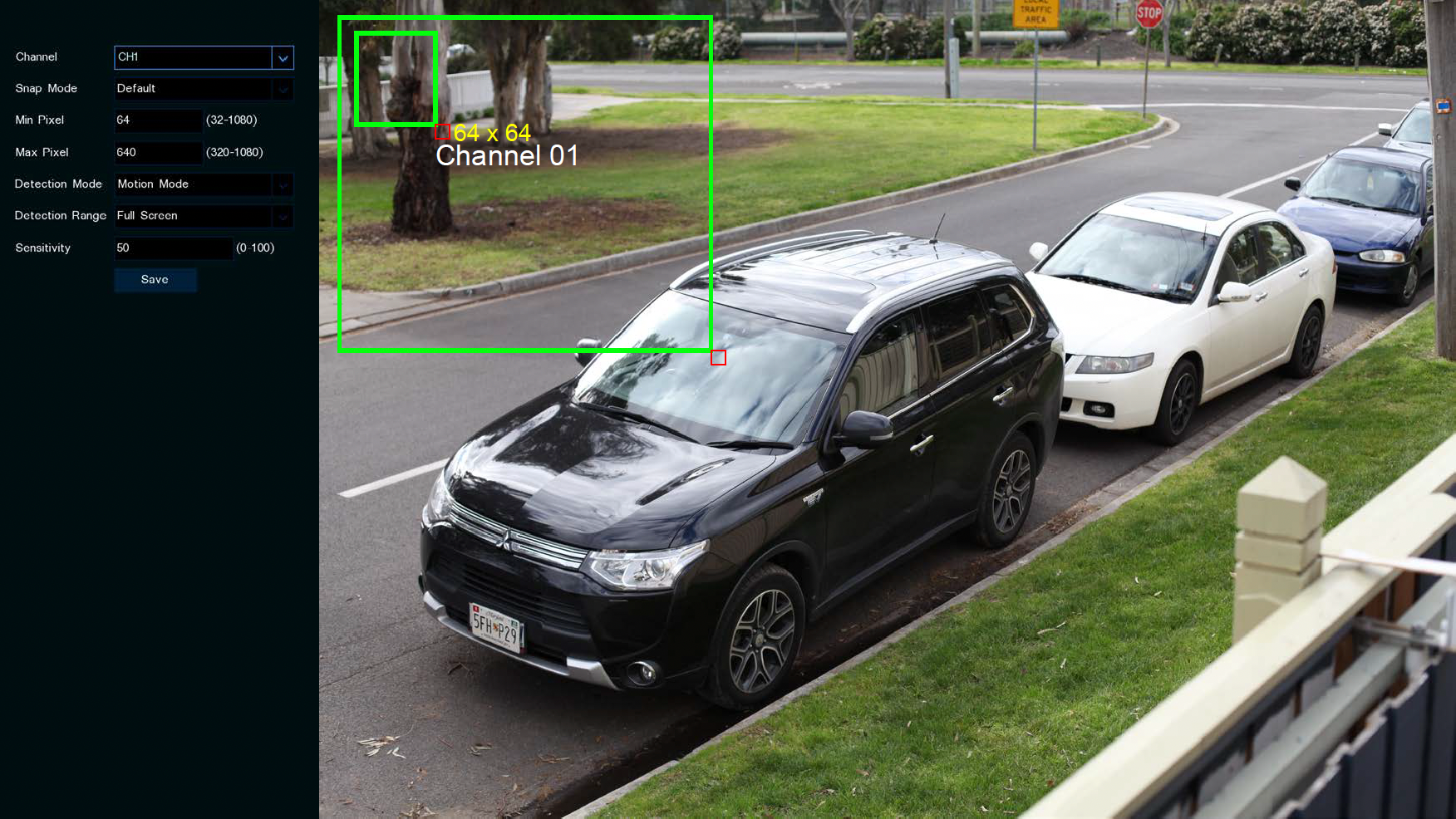

For AdvancedX™ system:
You have to fine-tune the settings here as the default may not fit where you placed the camera.
- Min and Max Pixel are responsible in determining the size of a moving subject, while
- Sensitivity is for how fast or slow the movement should be before it gets triggered.
Click to save any changes, and you need fine-tune each channels by changing the Channel at the top, then modify the settings again if needed.
Learn more on how Human & Vehicle Detection works here

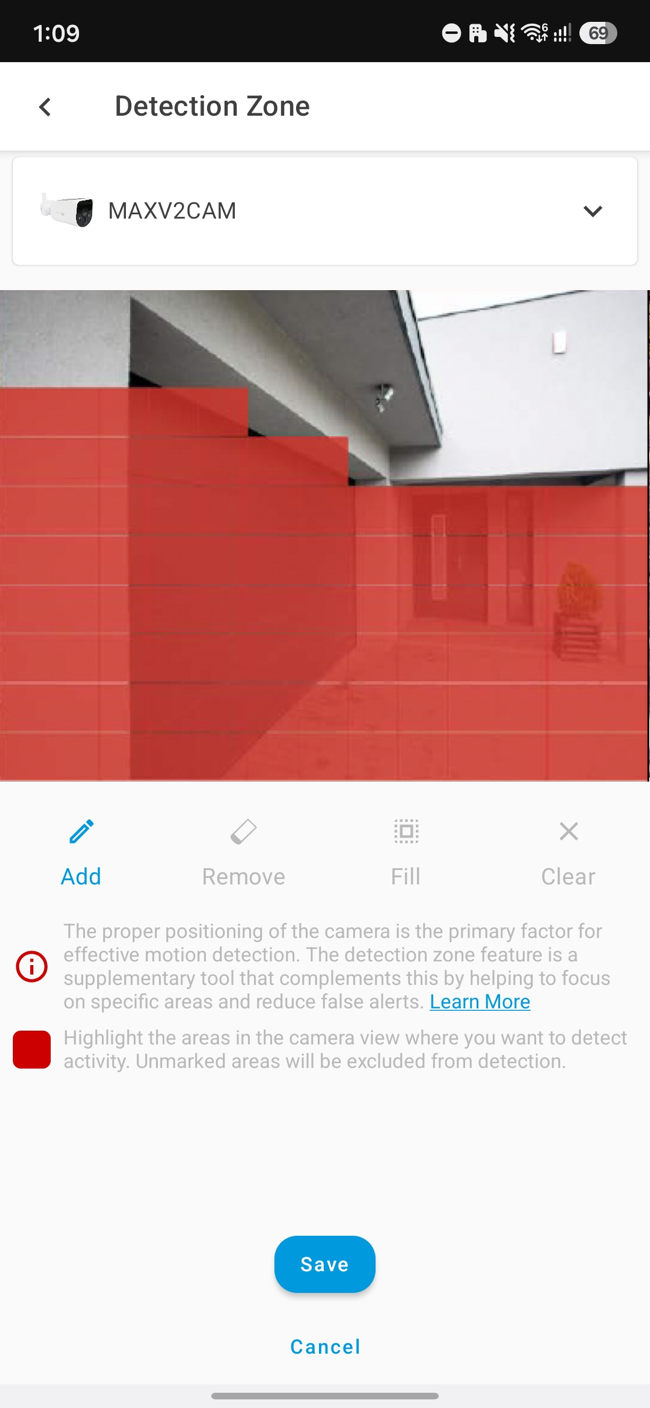

For MaxRanger4K™ Base Station (NVW-MR4KSTN):
- In Swann Security app, tap then select your Base Station
- Tap on
- Select a camera to configure
- Identify the areas where you want motion to be detected.
- Red boxes = active detection zones
- Tap or tap-and-drag on any clear areas to turn them red if you want that area monitored.
- Avoid unnecessary areas (like trees or roads outside your property) to reduce false alerts.
- Tap to save any changes.
For EliteX™ system:
EliteX™ that is NOT paired to Swann Security

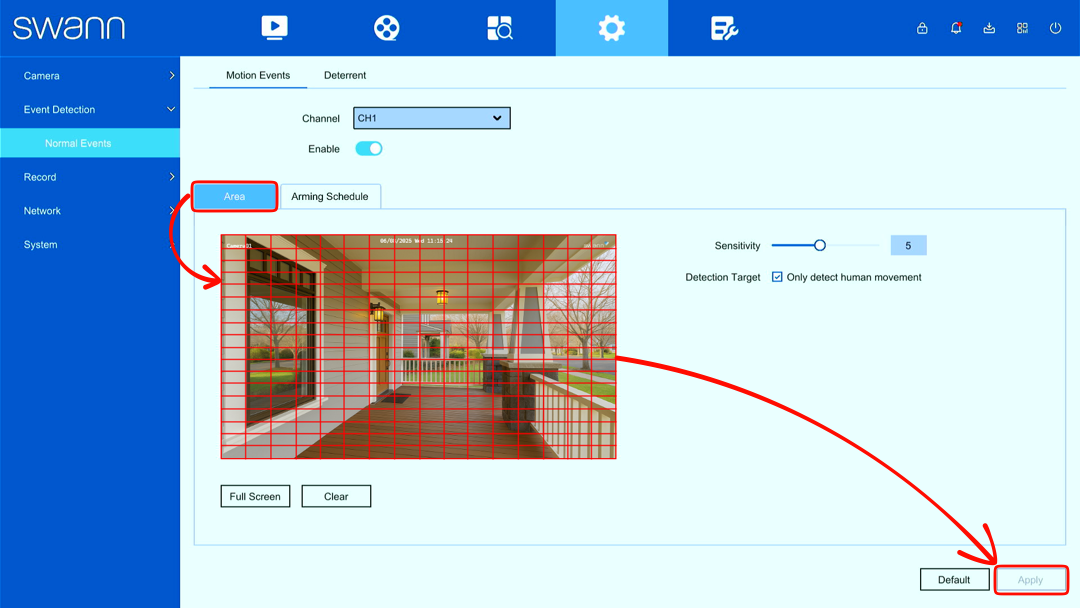

Configure the Detection Area
- Still under Configuration > Event Detection > Normal Events, make sure you are in the Area tab
- Identify the areas where you want motion to be detected.
- Red boxes = active detection zones
- Click or click-and-drag on any clear areas to turn them red if you want that area monitored.
- Avoid unnecessary areas (like trees or roads outside your property) to reduce false alerts.
- Click to save changes.

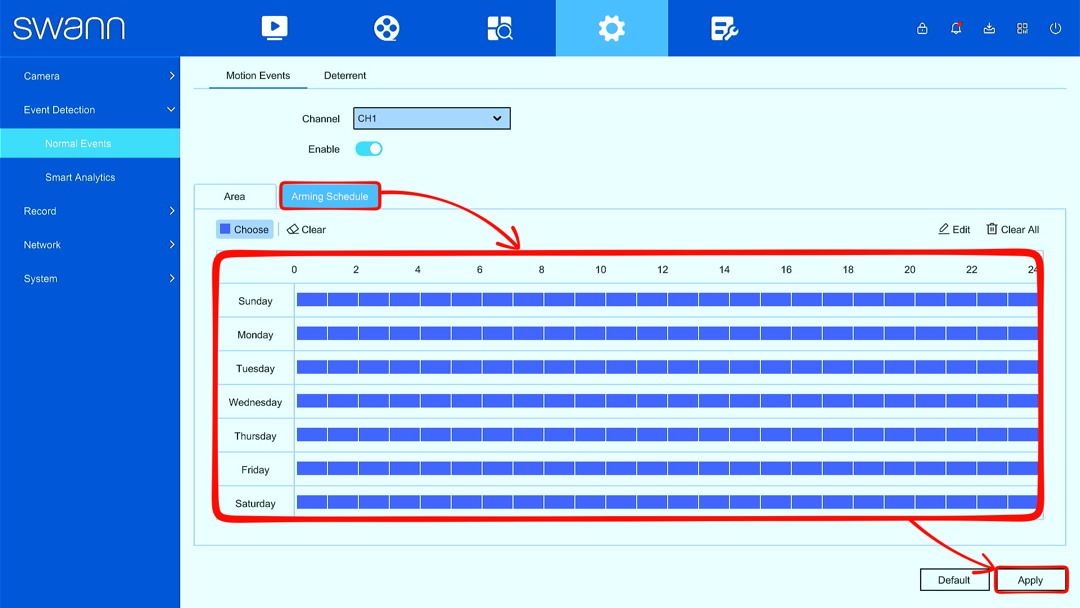

Set Up Arming Schedule
- Still under Configuration > Event Detection > Normal Events, select Arming Schedule
- Create a schedule when will the camera detect movements.
- Blue boxes = active hour
- Each row has 24 blue boxes, each represents a hour of a day
- Click to save changes.

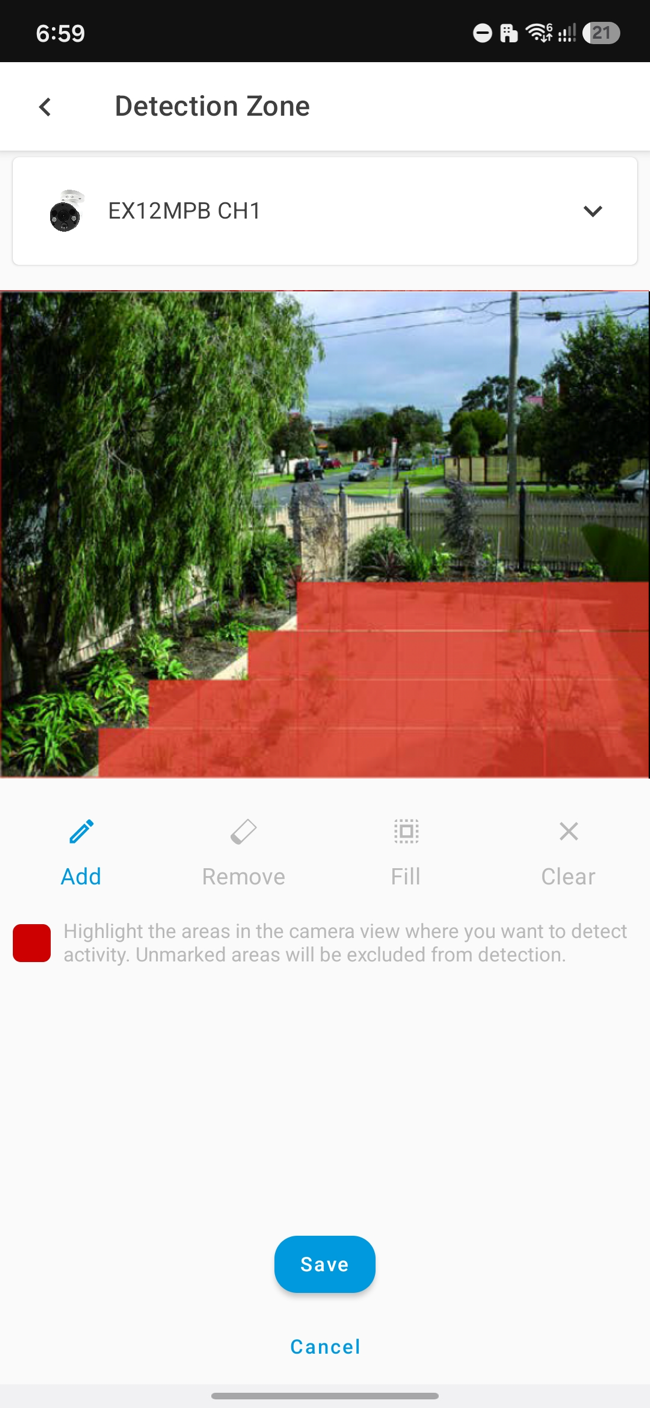

EliteX™ that is PAIRED to Swann Security
- In Swann Security app, tap then select your EliteX™ system
- Tap on
- Select a camera to configure
- Identify the areas where you want motion to be detected.
- Red boxes = active detection zones
- Tap or tap-and-drag on any clear areas to turn them red if you want that area monitored.
- Avoid unnecessary areas (like trees or roads outside your property) to reduce false alerts.
- Tap to save any changes.
Expected result: Motion is detected only inside the configured detection zone.
Verify the Camera Can Detect Movement
Some environments make motion difficult to detect.
Check that:
- The person or object is moving clearly through the scene.
- Lighting is sufficient for the camera to detect motion.
- The camera lens is clean.
- The monitored area is not too far from the camera.
If the Issue Still Happens
If motion detection still does not work:
- Restart the recorder.
- Check for available firmware updates.
- Restore the motion detection settings and configure them again.
- Test with another camera if available.
- Reset the recorder if the issue started after changing settings.
- Contact Swann Support if motion detection continues to fail.
Why This Happens
Motion detection relies on properly configured software settings and, in some camera models, built-in PIR sensors. If motion detection is disabled, sensitivity is too low, or the detection zone is incorrect, normal movement may not trigger recordings or alerts. Reviewing these settings regularly helps ensure your security system captures important events.
Related Questions
Why is my Swann recorder not recording motion?
Motion detection may be disabled, the recording schedule may not include motion events, or the detection area may not be configured correctly.
Why does my camera miss motion events?
The sensitivity may be too low, movement may be outside the detection zone, or the subject may be beyond the camera's detection range.
How do I change the motion detection area?
Open the recorder's Motion Detection settings and edit the detection grid to include the areas you want monitored.
Why is my PIR camera not detecting people?
The person may be outside the PIR sensor's operating range or moving directly toward the camera instead of across its field of view.
Summary
Most motion detection issues can be resolved by enabling motion detection, increasing sensitivity, and configuring the correct detection zone. If the problem continues, update the recorder, verify camera operation, or review other recording settings to ensure your Swann security system performs as expected.
