How to Adjust Mic and Speaker Volume on an EliteX™ System
You can adjust the microphone (mic) volume and speaker volume of cameras connected to your EliteX™ system using either the Swann Security app or the recorder's local menu with a mouse and monitor. Adjusting these settings can improve two-way audio quality and siren loudness on supported cameras.
Things to Know
- Your EliteX™ recorder is online if using the Swann Security app.
- A mouse and monitor are connected if using the recorder's local menu.
- The camera supports audio features such as a microphone, speaker, or siren.
Step-by-Step Guide

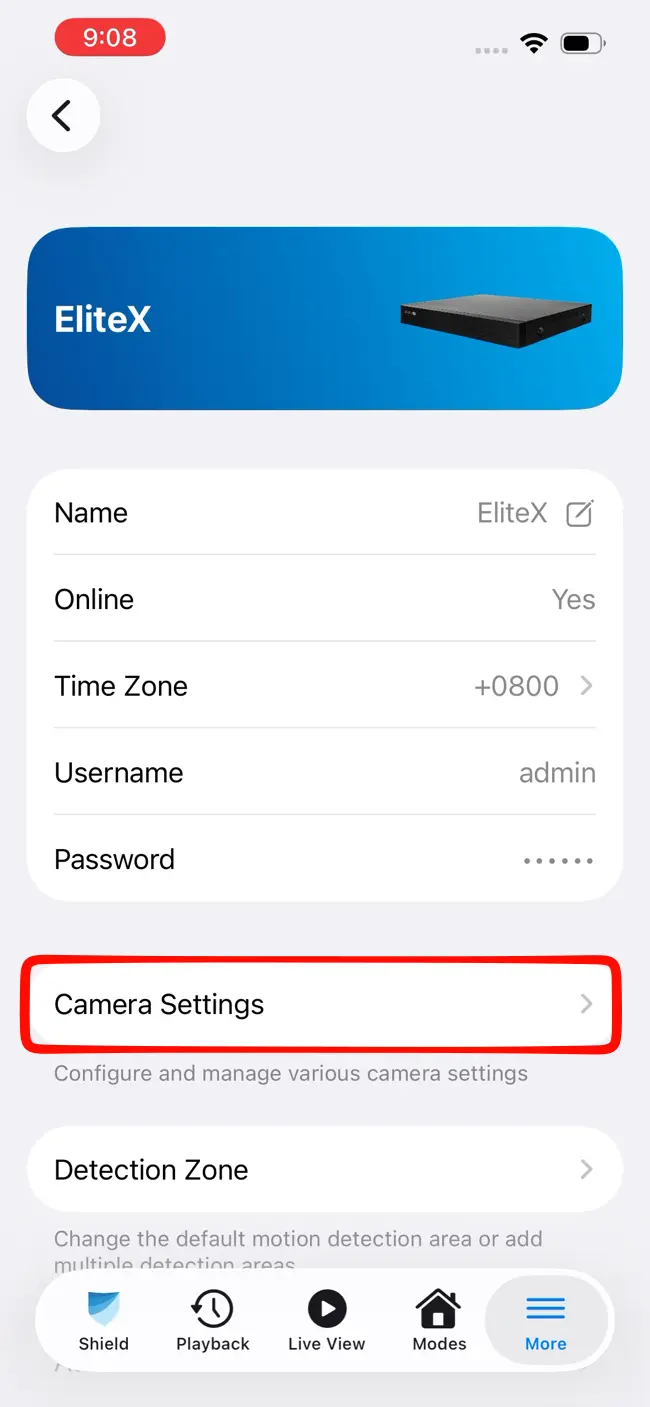

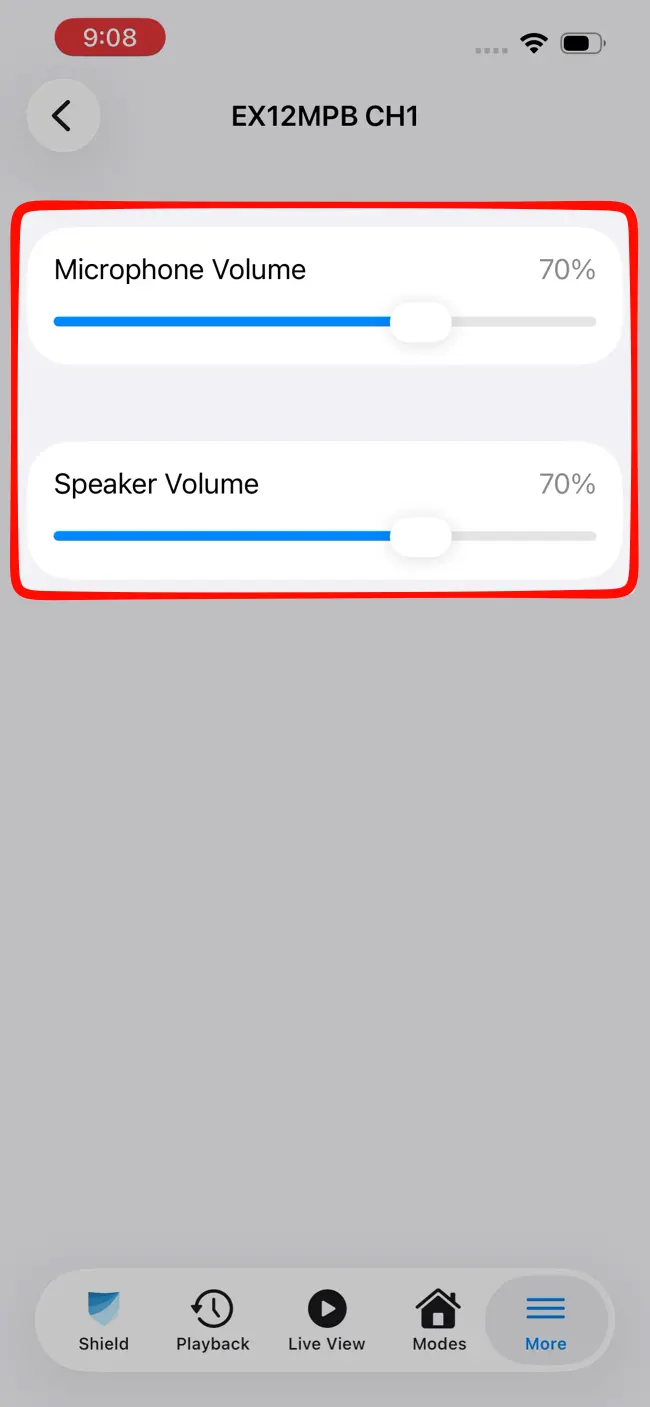

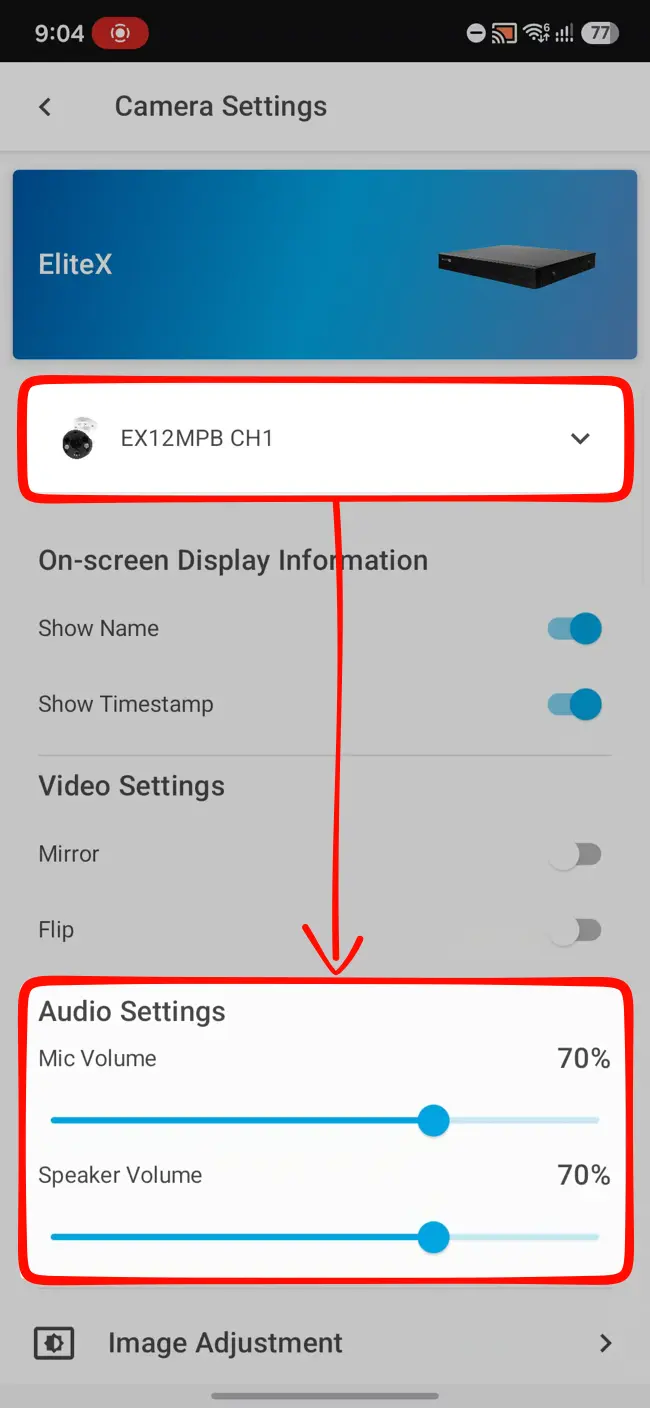

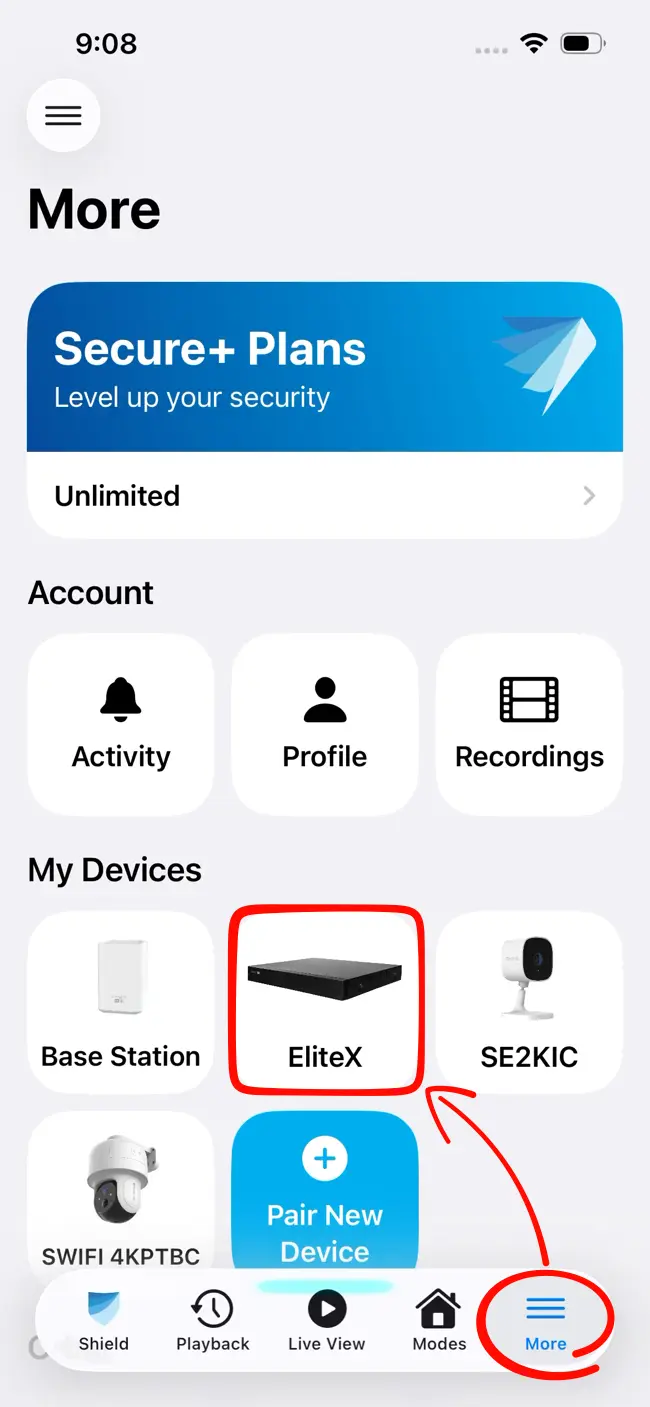

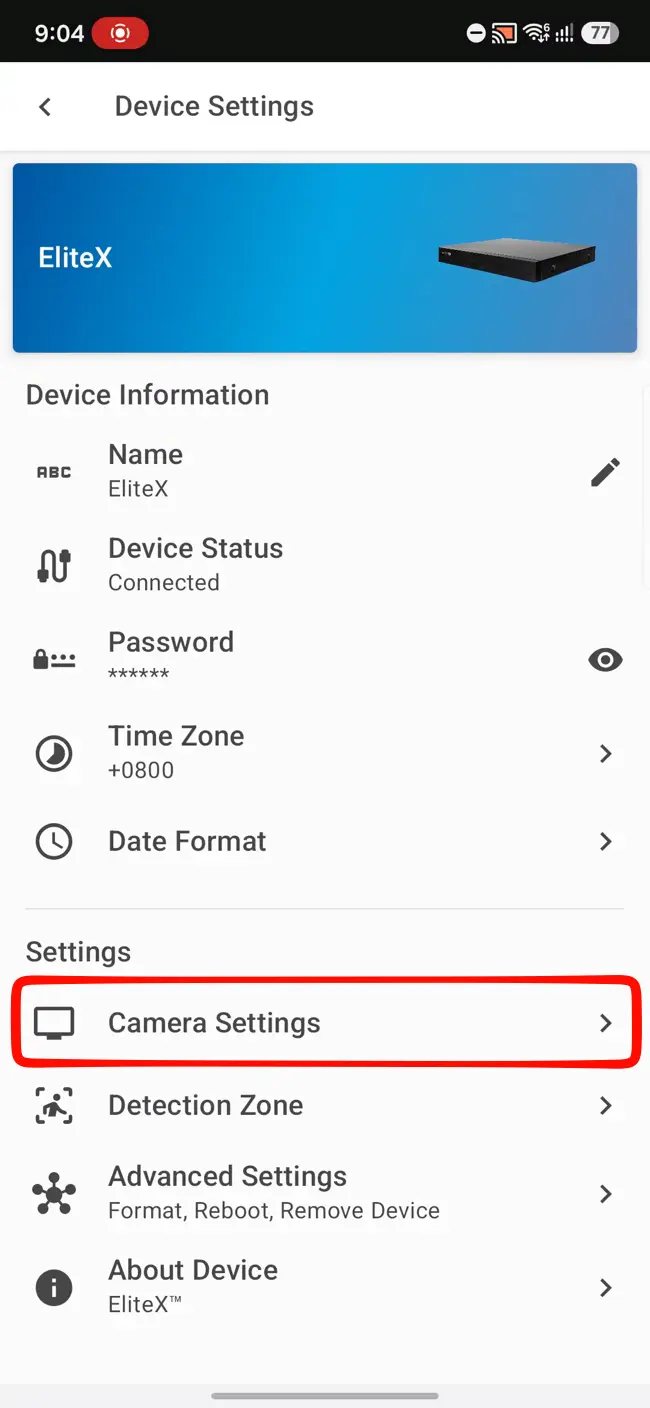

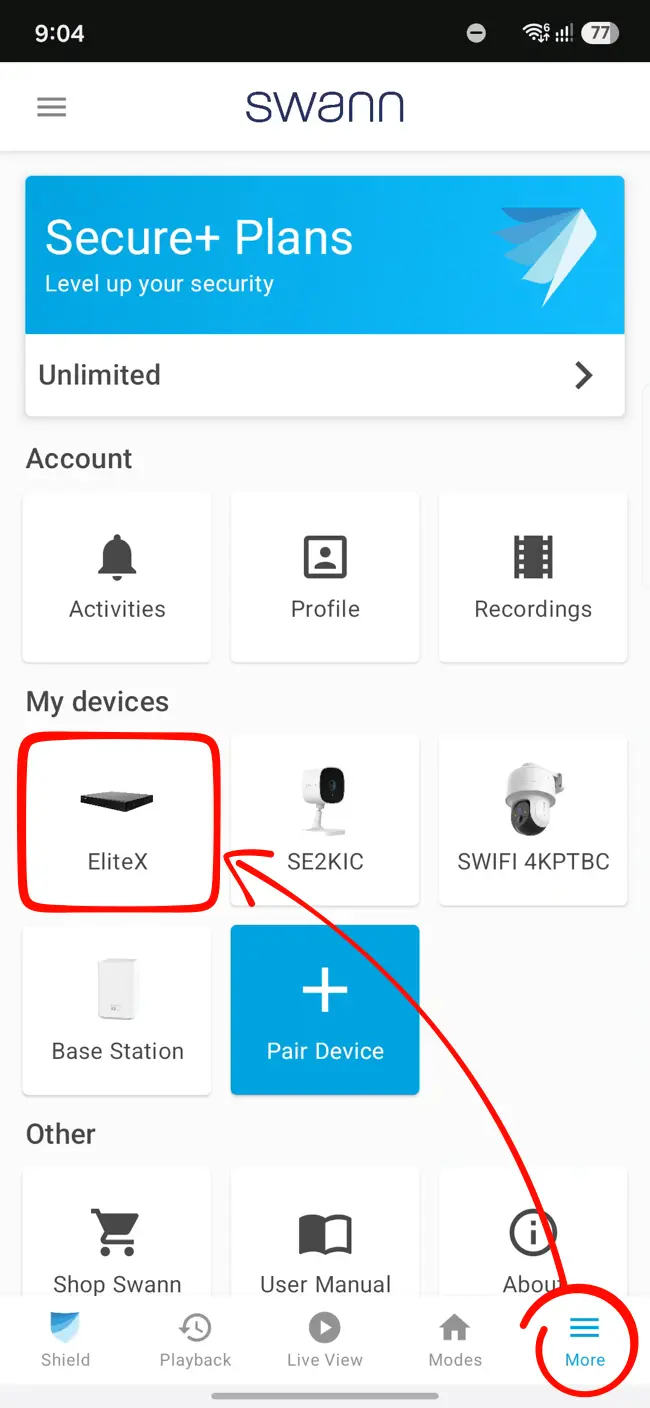

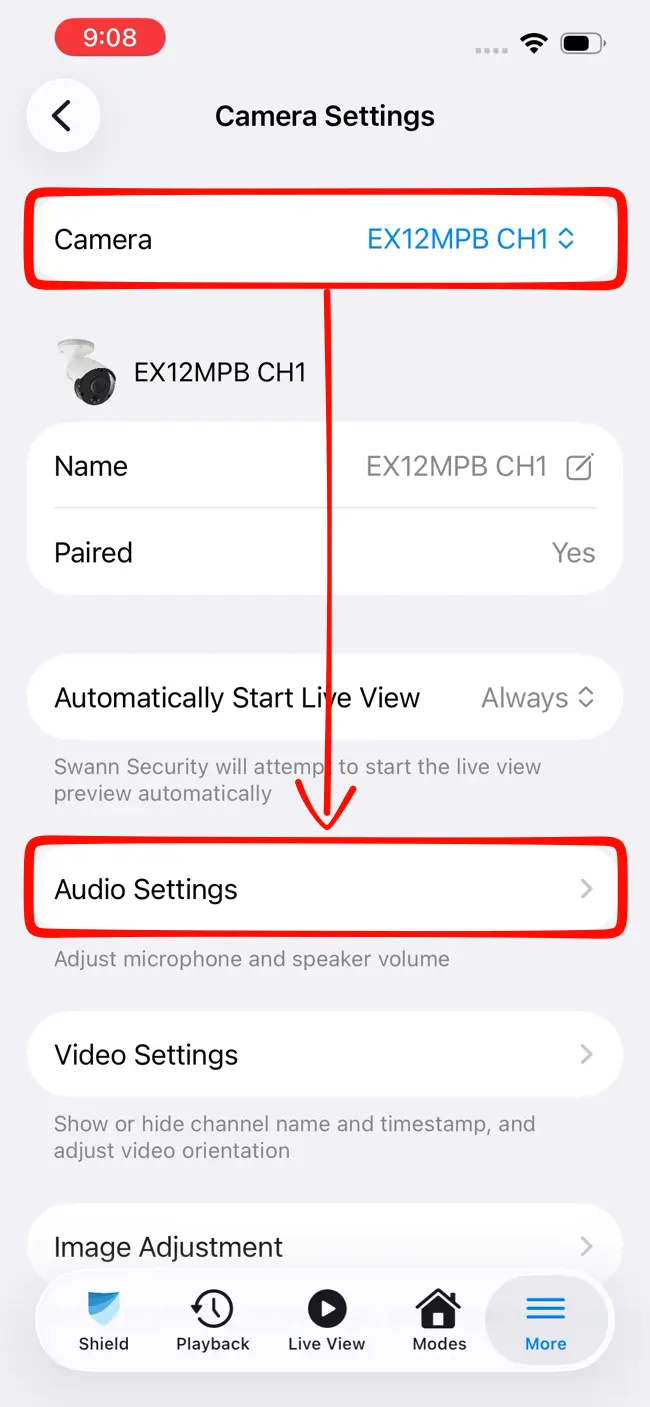

Option 1: Using the Swann Security App
Choose Your Phone Type

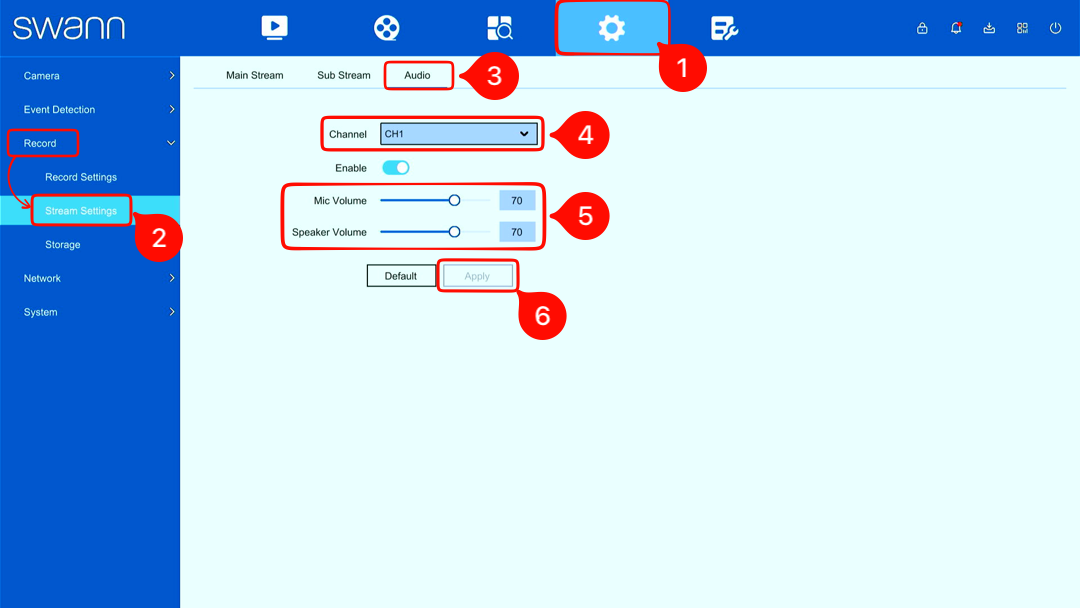

Option 2: Using the EliteX™ Recorder Menu
- Go to
- Select Record > Stream Settings
- Open the Audio tab.
- Choose the camera you want to configure.
- Adjust the Microphone and Speaker volume levels.
- Click to save your changes.
Why It Matters
Setting the correct audio levels helps you hear clearer recordings, communicate through two-way audio more effectively, and ensure sound detection works as expected on supported cameras. If the speaker is too quiet or the microphone is too sensitive, adjusting these settings can improve your overall security experience.
Related Questions
Why is my camera speaker too quiet?
Adjust the speaker volume in Camera Settings or the recorder's Audio settings.
Why isn't sound detection working?
Increase the microphone volume if your camera supports sound detection.
Can I change audio settings remotely?
Yes, if your EliteX™ recorder is online, you can use the Swann Security app.
Does changing the speaker volume affect the siren?
Yes. The speaker and siren share the same audio output, so both use the same volume setting.
Summary & Next Steps
You can adjust your EliteX™ camera's microphone and speaker volume from either the Swann Security app or the recorder's local menu. Keeping these settings properly configured helps improve audio quality, two-way communication, and sound-related features.
