Connect Your Swann Recorder to a Router Using an Ethernet Cable
Connecting your Swann recorder to a router using an Ethernet cable allows devices on the same network to detect the recorder, making it easier to retrieve its MAC address for password resets. If your router has an internet connection, it also enables compatible recorders to be accessed remotely through the Swann Security app.
Most Swann recorders do not require a network or internet connection to record. They can be set up and used locally with a monitor and mouse. Connecting the recorder to a router is only necessary when you need network-related features, such as remote access or retrieving the recorder's MAC address over the local network.
Things to Know
- Most Swann recorders can record without being connected to a router or the internet.
- Connecting the recorder to a router is recommended if you need remote access, firmware updates, or need to retrieve the recorder's MAC address from another device on the same network.
- Exception: MaxRanger4K™ Base Station (NVW-MR4KSTN) is an app-focused device and requires an internet connection BUT not specifically via Ethernet cable during setup and normal operation.
- If you plan to configure recorder settings locally, connect a monitor and mouse to the recorder
Step-by-Step Guide
Connecting the recorder to your router only takes a few seconds.

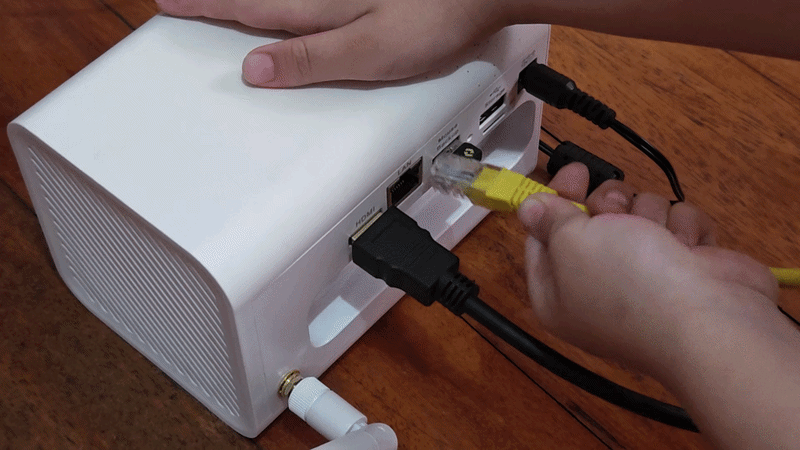

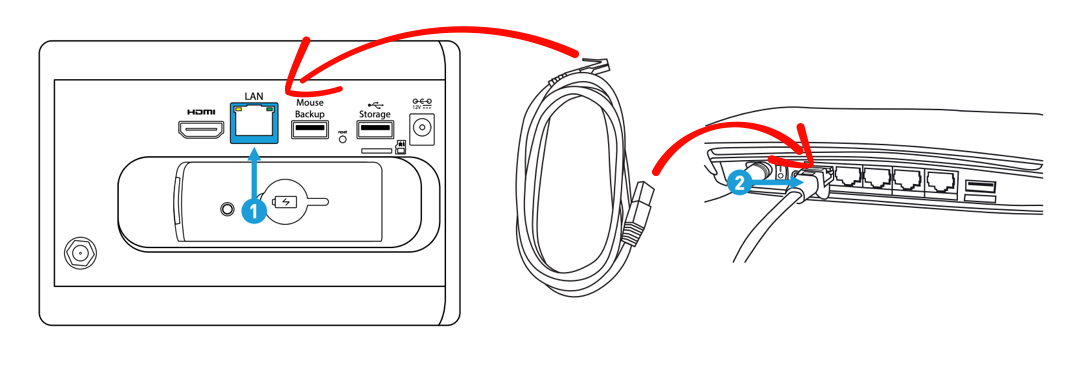

- Locate the Ethernet (Network) port on the back of the recorder.
- Connect one end of the Ethernet cable to the recorder.

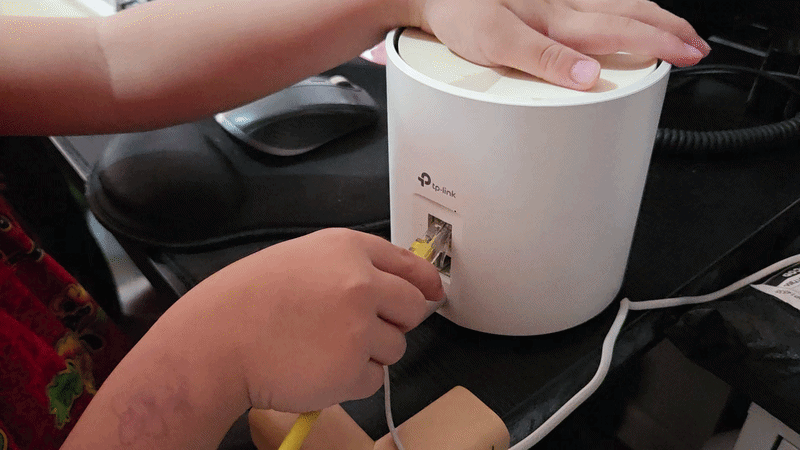

- Connect the other end to one of the router's LAN ports. Do not use the WAN or Internet port.
- Wait about a minute for the recorder to obtain a network address from the router.
When Should You Connect the Recorder to Your Router?
Although not required for most DVR and NVR systems, connecting the recorder to your router is recommended when you need to:
- Retrieve the recorder's MAC address for password reset requests.
- Use the Swann Security app for remote viewing, playback, and notifications.
- Receive internet-based features, such as firmware updates on supported models.
Things to Check or Avoid
- Connect the Ethernet cable to a LAN port on the router, not the WAN or Internet port.
- Ensure the Ethernet cable clicks or locks securely into both the recorder and the router.
- If the router has link or activity lights, confirm that the port lights up after connecting.
- Replace damaged or faulty Ethernet cables if the recorder is not detected.
- If your recorder was previously configured with a static IP address that does not match your current network, it may not appear on the network until its network settings are updated.
- If the recorder still does not appear, try another LAN port on the router or test with a different Ethernet cable.
Why This Matters
Connecting your recorder to your local network is often the first step when troubleshooting, resetting passwords, or setting up remote access. Even if you do not plan to use remote viewing immediately, having the recorder connected to your router makes future maintenance and support much easier.
Related Scenarios
-
I need my recorder's MAC address.
Connect the recorder to your router first so it can be detected by devices on the same network. -
I want to access my recorder remotely.
After connecting it to the router, make sure it has internet access and complete the online setup. -
The recorder is not detected on the network.
Check that the Ethernet cable is connected to a LAN port, verify the cable is working, and confirm the recorder has finished starting up.
Summary
Connecting your Swann recorder to a router only requires an Ethernet cable between the recorder's network port and one of the router's LAN ports. This simple connection lets you retrieve the recorder's MAC address when needed and, if the router has internet access, prepares compatible recorders for remote viewing through the Swann Security app.
