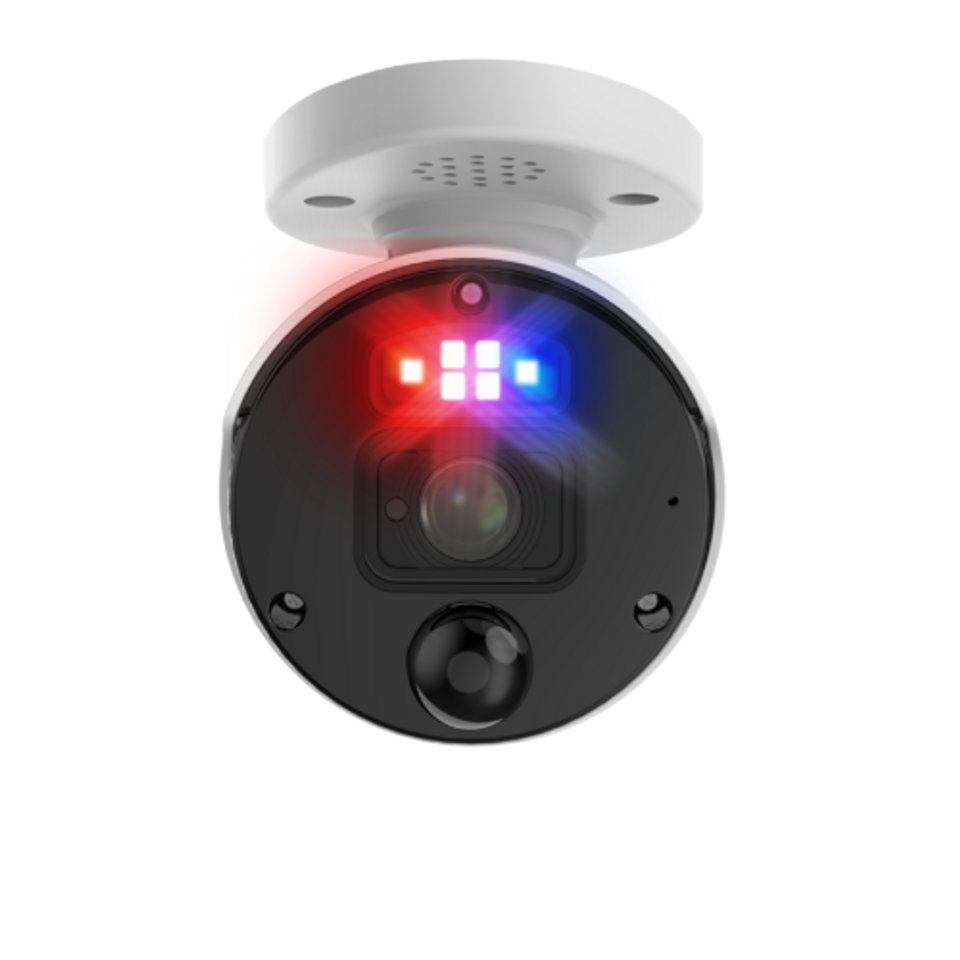

NHD-1200BE - Professional 6K (12MP) Add-on NVR Bullet Camera
Calculating...
Last updated:
IMPORTANT: Before purchasing this camera, make sure to check the NHD-1200D/DE/BE: Which NVR is compatible to find out which NVRs are supported.
Welcome to our NHD-1200BE - Professional 6K (12MP) Add-on NVR Bullet Camera resource hub! Whether you’re just starting or have been using it for a while, we’re here to help you get the most out of it. We’ve put together all the essential resources you might need, all in one place.
Feel free to explore each section below to find what you need. And if you have any questions, don’t hesitate to reach out to our support team. Let’s dive in!
Quick reminder! An add-on camera must be connected to a compatible recorder to be viewed on a phone or computer. Refer to this Camera Compatibility Chart to check the compatible recorder for this camera.
Guides
- Quick Start Guide
Specs
| Model Number | NHD-1200BE |
|---|---|
| Recorder Type | NVR |
| Resolution | 6K (12MP; 4096 x 3076 pixels) |
| Viewing Angle | 65° |
| Motion Detection | PIR + Motion (Up to 26ft / 8m) |
| Night Vision | Yes |
| Night Vision Range | Up to 130ft / 40m |
| Deterrent Feature | Enforcer/SwannForce™, Lights, Siren |
| Spotlight / Floodlight Range | Up to 32ft / 10m |
| Audio | Microphone, Speaker |
| Mic Range | Up to 16ft / 5m |
| Indoor/Outdoor | Indoor, Outdoor |
| IP Rating | IP66 |
| Power Connector | PoE (Power over Ethernet) |
| Power Source | Supports PoE 802.3af Standard |
| Wi-Fi Frequency | NONE |
| Operating Temperature | -22°F to 131°F / -30°C to 55°C |
| Dimension | 5.94" x 2.76" x 2.76" / 151mm x 70mm x 70mm |
| Lens Size | {no record} |
| Lumens | {no record} |
| Siren (dB) | Yes - dB {no record} |
| Color option | white |
| Other Features |
