How to Configure Audio Settings for PRO Cameras with Microphone
PRO-1080MQB, PRO-2KMQB, PRO-4K1DOME, PRO-4KMQB
Tags: configure audio settings, pro cameras with microphones, adjust audio input type, coaxial audio setup, dvr audio configuration, enable audio recording, mainstream audio settings, substream audio settings, dvr system menu, audio column settings, camera audio troubleshooting, audio input type guide, sound not working fix, dvr audio channels, audio setup for mqb cameras, record audio with camera, microphone-enabled cameras, audio recording troubleshooting, dvr audio input options, enable audio for video
NOTE: MQB cameras or cameras that runs audio through BNC or video cable are only compatible on certain models. Please check the model number of your recorder in this article: PRO cameras with built-in microphones: Which DVR is compatible?
Not hearing any sounds? You might not have set the correct Audio Input Type on your recorder.

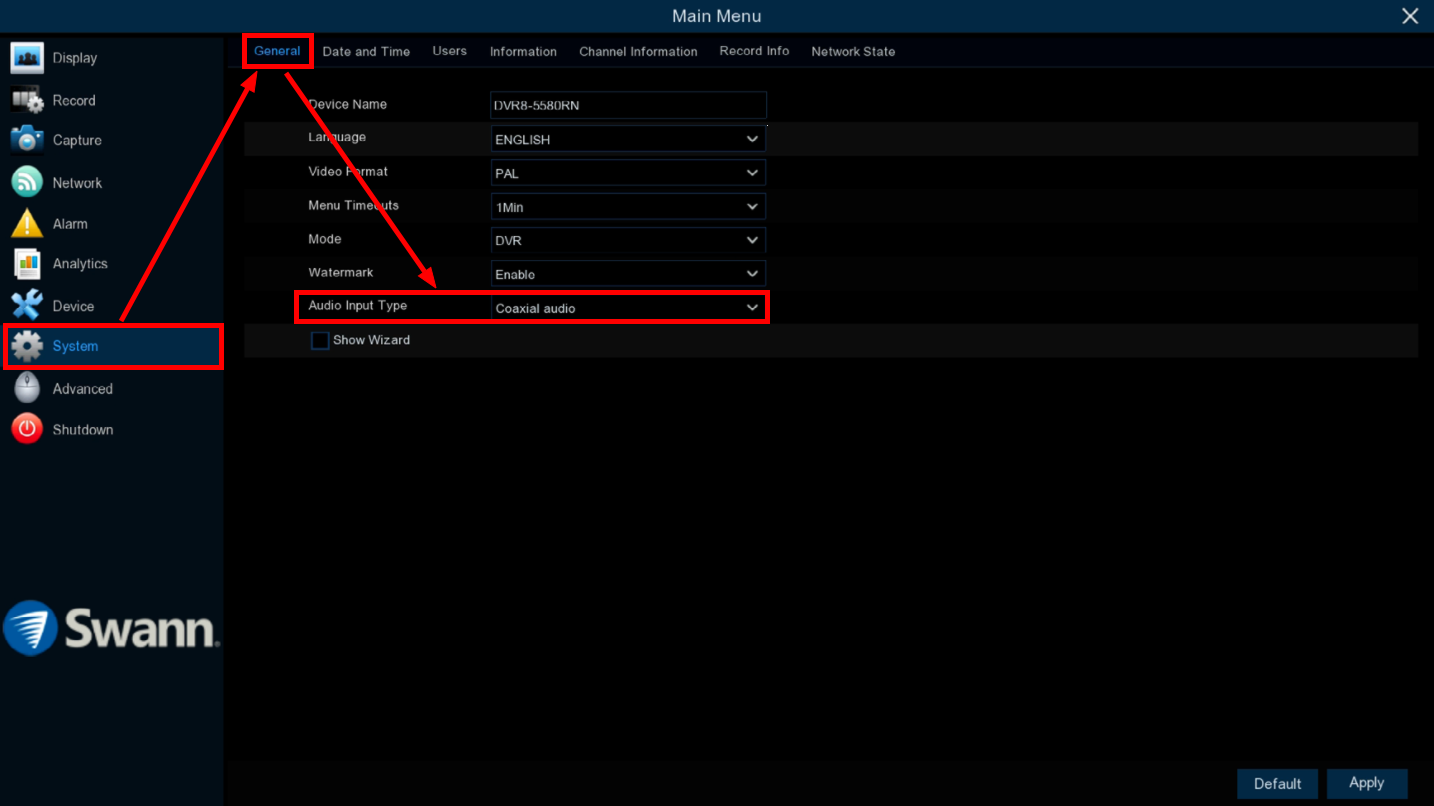

From the DVR's Menu, go to System > General then change Audio Input Type to Coaxial Audio.

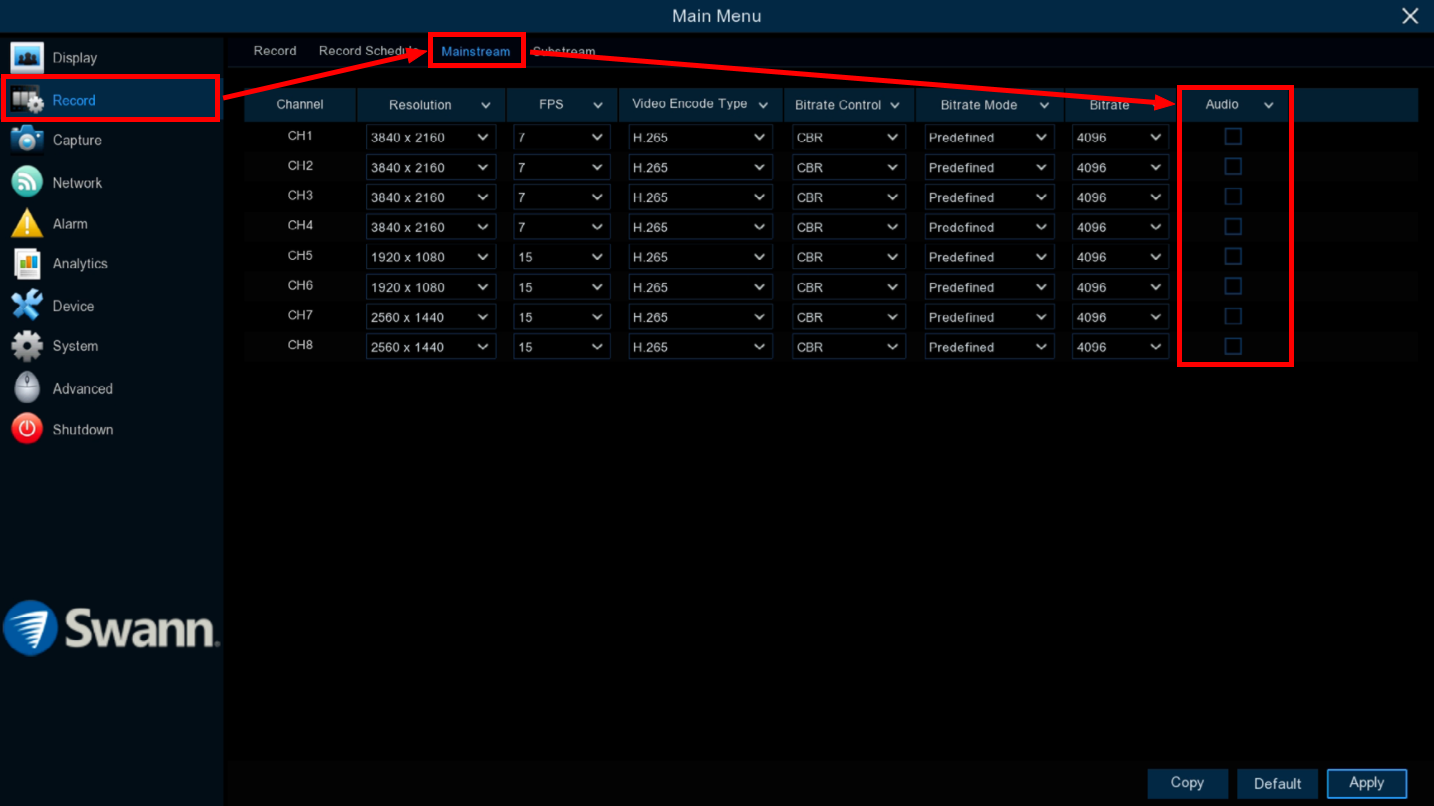

Once done, go to Record > Mainstream or Substream then check the boxes under Audio column to head the audio. Keep in mind which channel the camera is connected.
NOTE: If you have a 4ch DVR, you will have 4 checkboxes under Audio column that you can enable assigned to channels 1 to 4.
If you have an 8ch DVR, then you will get 8 checkboxes.
