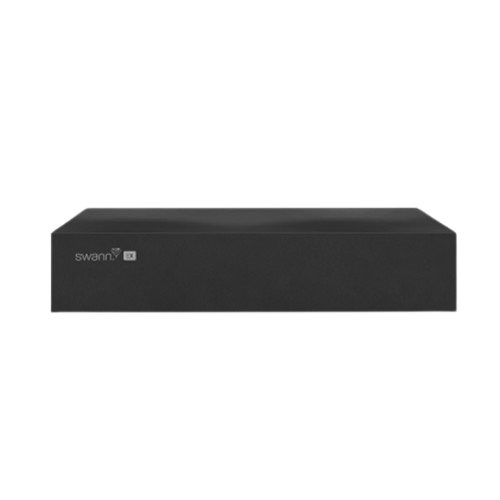

NVR-EliteX™ series - NVR-8EX, NVR-16EX
Welcome to our NVR-EliteX™ series - NVR-8EX, NVR-16EX resource hub! Whether you’re just starting or have been using it for a while, we’re here to help you get the most out of it. We’ve put together all the essential resources you might need, all in one place.
Feel free to explore each section below to find what you need. And if you have any questions, don’t hesitate to reach out to our support team. Let’s dive in!
If you're switching from an older NVR to our new EliteX™ system, please note that your old camera Ethernet cables might not be compatible.
This is because the newer EliteX system requires more advanced connections. If you're still using cables from your old kit, it's best to replace them with new ones that are designed for EliteX. This will ensure a smooth and reliable connection for your cameras.
Specs and Compatibility
Compatible Cameras
Specifications
| Model Number | NVR-EX - EliteX™ NVR |
|---|---|
| Recorder Type | NVR - uses NHD series cameras |
| App | Swann Security |
| Software | Swann Security (EX) - PC only |
| Camera Connection | Wired |
| Max Number of Cameras | Up to 16 |
| Max Recording Resolution | Up to 6K |
| Display Connection | HDMI |
| Storage Options | 1x HDD for 8ch; 2x HDD for 16ch, 2.5" HDD, 3.5" HDD |
| Max Storage Capacity | Up to 8TB HDD |
| Support for External Storage | NONE |
| Internet Connection Options | Ethernet |
| Power Connector | barrel-type |
| Power Source | 48V 1.5A 72W - for 8ch NVR |
| Color | black |
Downloads
- Android
- iOS
