How to Set the Correct Region on Your MaxRanger4K™ Power Hub

The MaxRanger4K™ Power Hub (NVW-MR4K) must have the correct Region setting for the country where it is being used. This setting helps ensure the Power Hub uses the appropriate wireless configuration for its location.

If you are using the Power Hub in Australia / New Zealand, set the Region to Oceania. For the United States / Canada, select North America.

Things to Prepare and Know

Before you begin:

1. Connect a monitor or TV to the Power Hub using HDMI.
2. Connect a USB mouse to the Power Hub.
3. Make sure the Power Hub is powered on and displaying Live View.
4. If you already have the cameras up and streaming, and you about to "change" the region, you will have to re-pair the cameras to the hub to use the correct frequency.

See also:

• How to Connect a Display and Mouse to Your Swann Security Recorder
• How to Pair MaxRanger4K™ Add-on Camera

How to Set the Region on the MaxRanger4K™ Power Hub

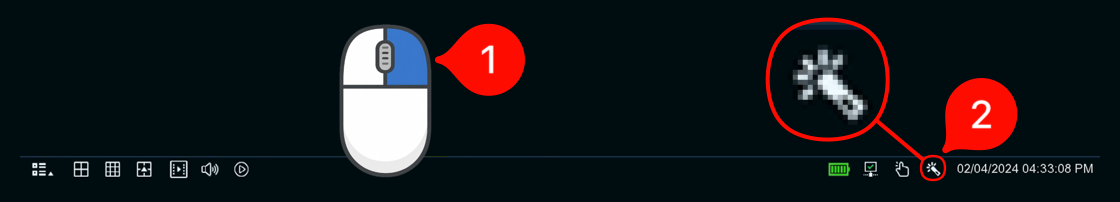

1. From Live View, right-click to open the Menu Bar.
2. Click the wand icon to open the Startup Wizard.

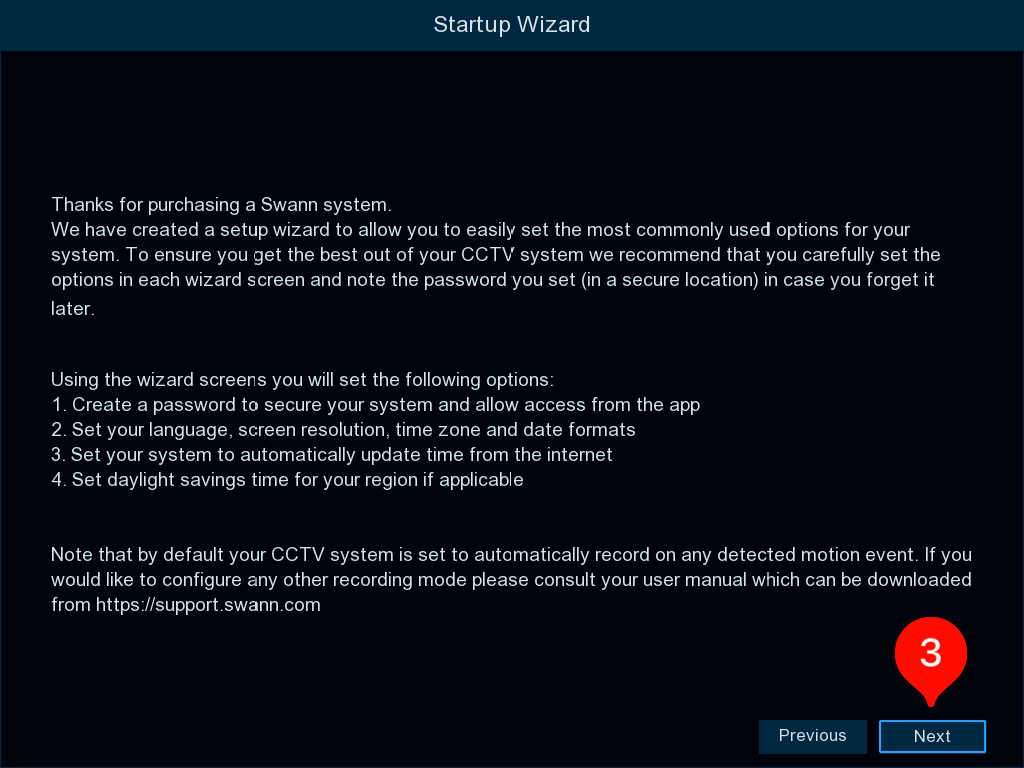

3. Click Next until you reach General System Configuration.

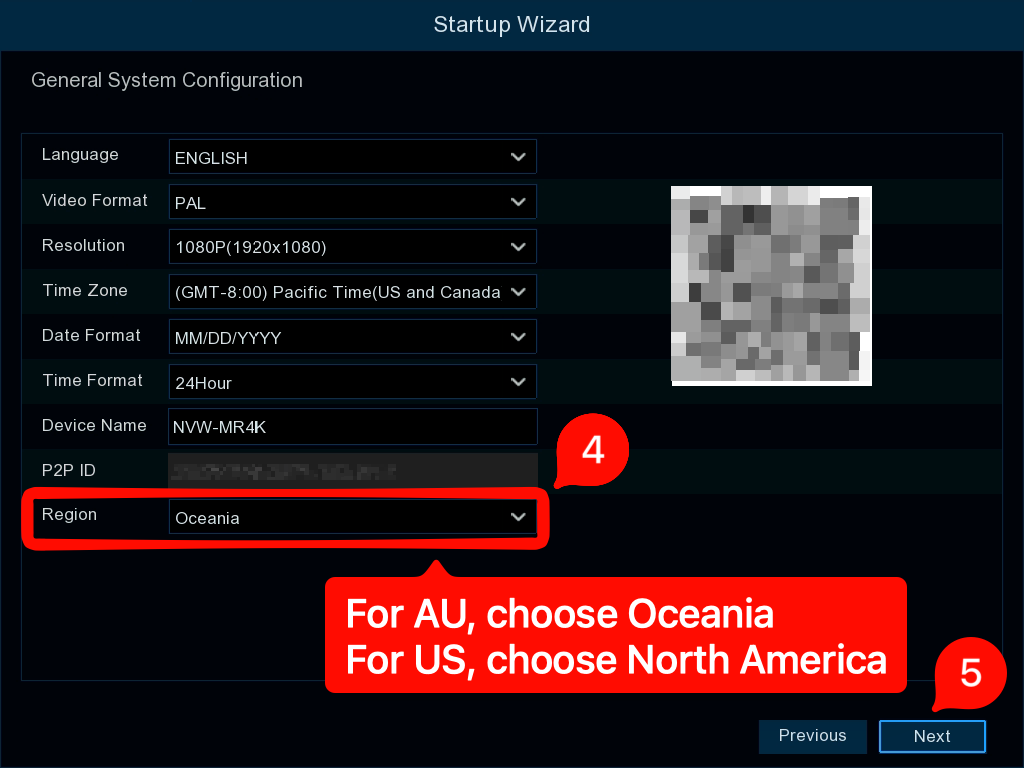

4. Find the Region setting and select the correct option for your location:
   • Australia / New Zealand: Select Oceania
   • United States / Canada: Select North America
5. Continue clicking Next through the remaining Startup Wizard steps.

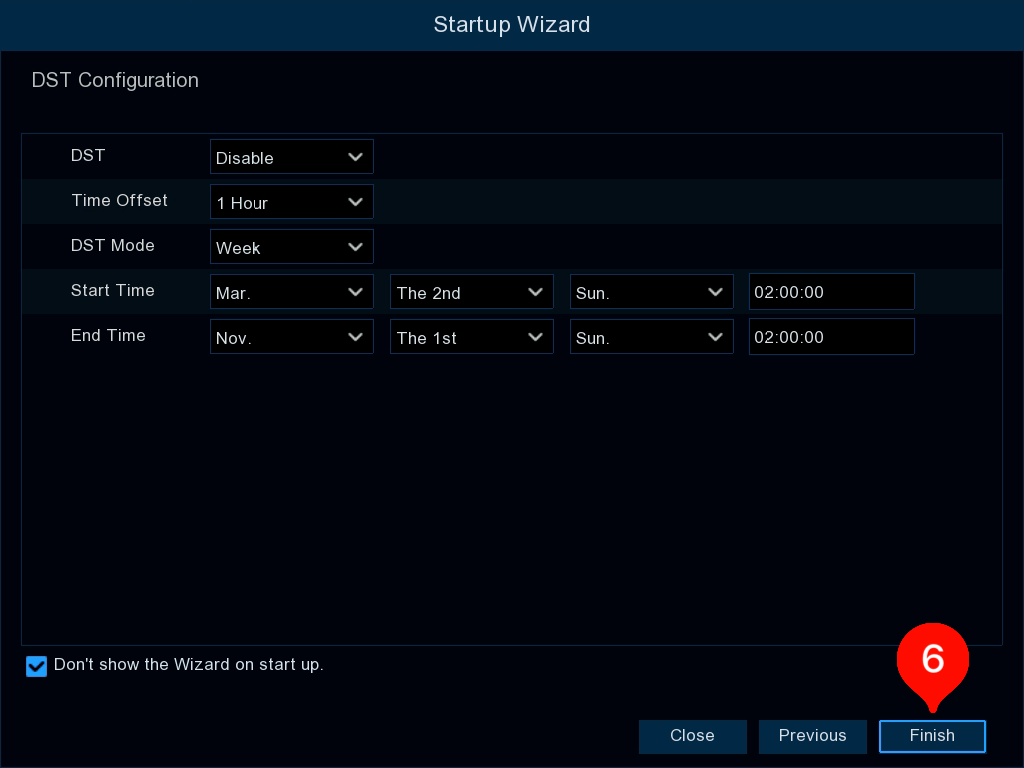

6. On the final step, click Finish to save the settings and complete the setup.

Cameras are not streaming?

You need to re-pair the cameras to the hub to use the correct frequency.

Why Is the Region Setting Important?

The MaxRanger4K Power Hub communicates wirelessly with compatible cameras, so its wireless configuration needs to match the region where the equipment is being used. Setting the correct region helps ensure the system operates according to the applicable wireless requirements for that location.

The Region setting configures the wireless operating parameters used by the Power Hub. Always select the region that matches the country where the system is installed.

Using an incorrect Region may affect wireless performance or cause the system to operate outside local wireless requirements.

Related Questions

• Do I need a monitor to set up the MaxRanger4K Power Hub?
  Yes. The Power Hub can be configured using a connected monitor or TV and USB mouse.
• Which model is the MaxRanger4K Power Hub?
  The Power Hub model number is NVW-MR4K.
• Can I change the Region setting later?
  Yes. Connect a monitor and mouse to the Power Hub and use the Startup Wizard to access the Region setting.

Summary

If you are using a MaxRanger4K Power Hub (NVW-MR4K) in Australia / New Zealand, make sure its Region is set to Oceania. You can change this setting through the Startup Wizard using a connected monitor and mouse.
