How to Connect a Display and Mouse to Your Swann Security Recorder
A display and USB mouse are required when setting up a Swann Security recorder for the first time. During the initial setup, you'll complete the Setup Wizard, including creating an administrator password and configuring your recorder.
All Swann Security recorders require a connected display during setup, except the MaxRanger4K™ Power Hub, which can be configured using the Swann Security app
Things to Know Before You Start
- A TV or monitor with an HDMI input is recommended.
- A USB mouse is required to navigate the recorder menus.
- Connect the display and mouse before powering on the recorder.
- HDMI provides the best image quality and supports higher resolutions than VGA.
- Some recorders also include a VGA port. If present, it mirrors the HDMI output and does not extend the display.
- Use 1080p or 4K resolution over HDMI whenever possible for the best viewing experience.
Connection Guide

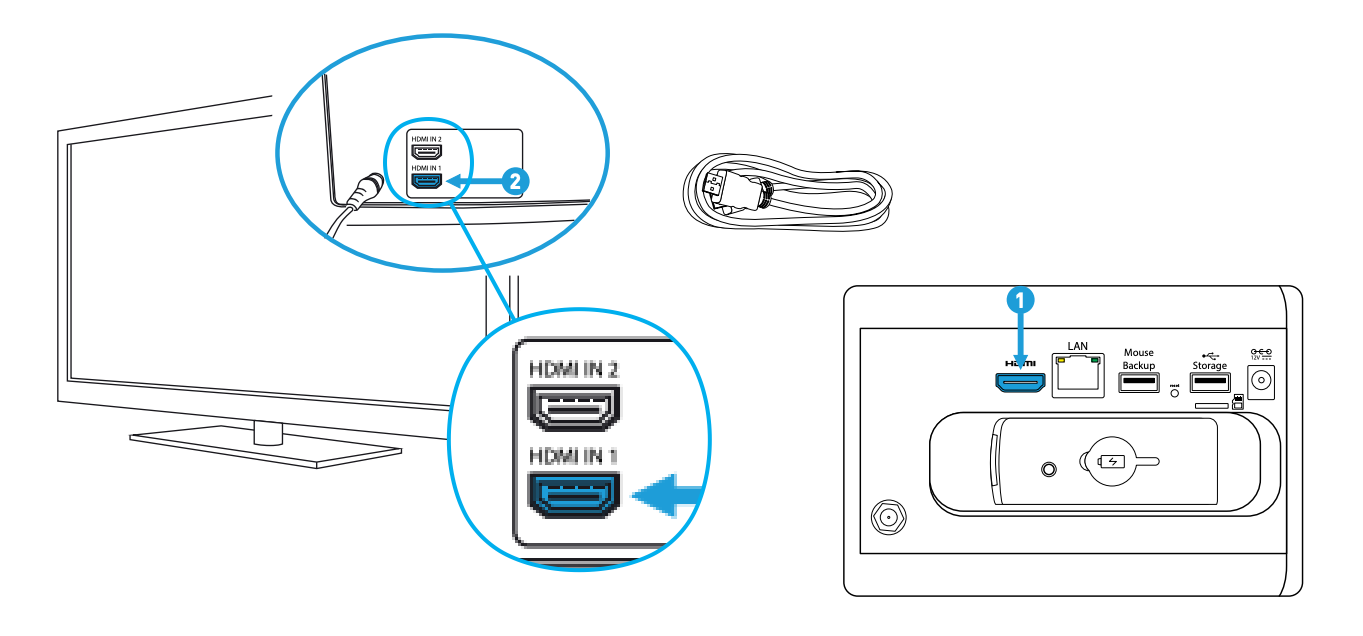

Connect the display
- Locate the HDMI port on the recorder.
- Connect one end of the HDMI cable to the recorder and the other end to an available HDMI port on your TV or monitor.
- Take note of which HDMI port you used (for example, HDMI 1, HDMI 2, or HDMI 3). Most TVs have multiple HDMI ports, and you'll need this information in the next step.
TIP: If you're unsure which HDMI port you used, look at the label beside the port on the back or side of the TV (such as HDMI 1 or HDMI 2) or simply try each HDMI input until you see the Swann loading screen.

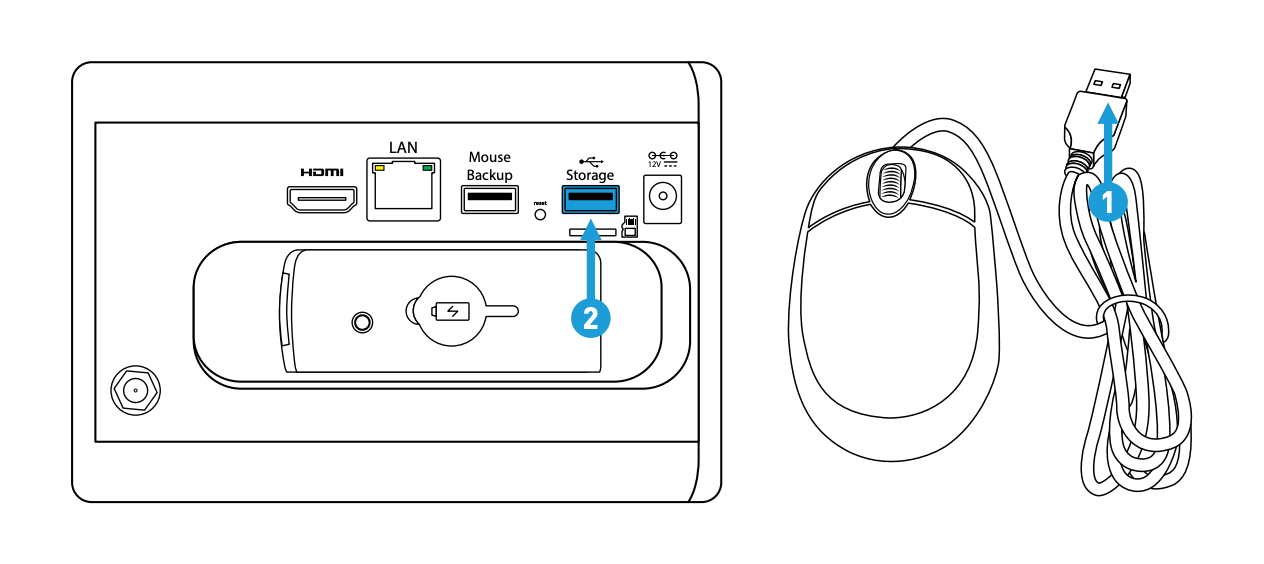

Connect the USB mouse
Plug the supplied USB mouse into any available USB port on the recorder.
If one USB port is labeled Mouse, it's recommended to use that port. Other USB ports may be intended for features such as external storage or backups, depending on your recorder model. Refer to your recorder's specifications for supported USB functions.
Most wireless USB mice also work, provided they use a dedicated USB receiver and do not require drivers or additional software.
Power on the recorder
- Turn on your TV or monitor.
- Using your TV remote, press the Input, Source, or AV button (the name varies by TV brand), then select the HDMI input that matches the port where you connected the recorder.
- Power on the recorder.
The Setup Wizard should appear after the recorder finishes booting.
How do I know if I selected the correct input?
If you see the Swann loading screen, you've selected the correct input source and the display connection is working properly. The recorder should then continue to the Setup Wizard.
See also: If you need to change the recorder's display resolution, see:
How to Change the Display Resolution of the Recorder
Why It Matters
A connected display and mouse let you complete the recorder's initial setup and access local settings. Even if you plan to use the Swann Security app afterward, the recorder must first be configured locally.
Related Scenarios or Questions
I saw the Swann loading screen. Does that mean everything is connected correctly?
Yes. If the Swann loading screen appears, your display connection and input source are correct.
The Swann loading screen appears, then the screen goes blank or keeps restarting.
This usually indicates a recorder startup or boot issue rather than a display problem. Follow this guide
I only see a blank screen, "No Signal", or "Video Mode Not Supported".
This usually indicates a display connection, input source, or resolution issue. Follow this guide
Can I use both HDMI and VGA at the same time?
Yes, if your recorder has both ports. Both outputs display the same image.
How long can an HDMI cable be?
For the most reliable signal, use an HDMI cable up to 15 ft (5 m). Longer distances may require an active HDMI cable or HDMI extender.
How long can a VGA cable be?
VGA cables generally work best up to 50 ft (15 m), although picture quality may decrease over longer distances.
Can I complete the setup without a display?
No. All Swann Security recorders require a connected display during the initial setup, except the MaxRanger4K™ Power Hub which you can set up without a monitor by following this guide
Summary & Next Steps
Connecting a display and USB mouse is the first step in setting up your Swann Security recorder. Using HDMI and the correct display input helps ensure the Setup Wizard appears and your recorder is ready to use.
If the recorder boots but you experience display issues afterward, refer to the appropriate troubleshooting guide above or adjust the display resolution if needed.
